Version 1.0

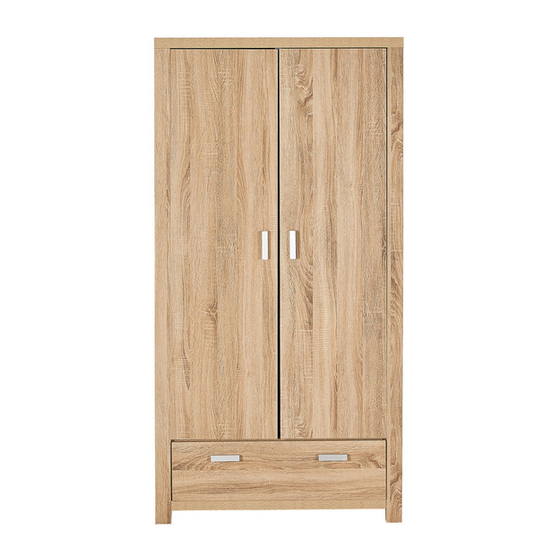

Havana
Robe 2 Door 1 Drawer
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture Havana Robe 2 Door 1 Drawer

Summary of Contents for fantastic furniture Havana Robe 2 Door 1 Drawer

  • Page 1 Version 1.0 Havana Robe 2 Door 1 Drawer fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    Top Panel Right Side What you need (P1) Panel to assemble the product (P3) (P6) Back Panel (P7) (P8) DO NOT USE (P4) Rail Other tools you need: (P9) Back Phillips head screwdriver; Hammer Panel (P8) Parts list (P5) Right Top Panel (P1);...
  • Page 5 Step 1 You will need 24 x Cam Bolts 4 x Plastic (H3) Glides (H18) (P7) (P6) Phillips Head Hammer Screwdriver (P4) Secure 24 x Cam Bolts (H3) to Legs (P4, P5, P6, P7) by tightening with the Phillips Head Screwdriver. (P5) Attach 4 x Plastic Glides (H18) to Legs(P4&P5&P6&P7) by a Hammer.
  • Page 6 Step 3 You will need 8 x Cam Bolts 3 x Small (H3) Screws (H5) (P2) (P4) 1 x CL Runner Phillips Head Track (H6) Screwdriver H5 H6 (P5) Secure 8 x Cam Bolts (H3) to Legs (P4&P5) and Side Panel (P2) as shown by tightening with the Phillips Head Screwdriver.
  • Page 7 Step 5 (P9) You will need (P9) (P12) 4 x Dowels 8 x Cam Nuts (H1) (H4) (P11) (P10) (P2) Phillips Head Screwdriver Insert 8 x Cam Nuts (H4) into the holes of Rails (P9&P10&P11) and Shelf Panel (P12) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 8 Step 7 You will need (P3) 4 x Dowels 8 x Cam Nuts (H1) (H4) (P9) Phillips Head Screwdriver (P9) (P11) (P10) Insert 4 x Dowels (H1) into the holes of Rails (P10&P11) and Shelf Panel (P12) as shown. Insert 8 x Cam Nuts (H4) into the holes of Rails (P9&P10&P11) and Shelf Panel (P12) as shown.
  • Page 9 Step 9 You will need (P1) 8 x Cam Bolts 2 x Wedge (H3) Screws (H24) Phillips Head 1 x Magnetics (H22) Screwdriver Secure 8 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. Attach 1 x Magnetics (H22) to Top Panel (P1) using Wedge Screws (H24) by tightening with the Phillips Head Screwdriver.
  • Page 10 Step 11 You will need 1 x Hanger 2 x Hanger (H15) Support (H14) (P3) (P2) 4 x Timber Phillips Head Screws (H17) Screwdriver Attach 2 x Hanger Support (H14) to Side Panels (P2&P3) with 4x Timber Screws (H17) by tightening with the Phillips Head Screwdriver.
  • Page 11 (P16) Step 13 You will need (P19) 5 x Small Cam 1 x Dowels (P17) (H1) Nuts (H11) Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam (P15) nut so it tightens over...
  • Page 12 Step 15 You will need (P18) (P16) 6 x Long Phillips Head Screws (H2) Screwdriver (P17) Attach Drawer Back (P18) to Left & Right Drawer Sides (P16&P17) and Rail (P19) with 6 x Long Screws (H2) by tightening with the Phillips Head Screwdriver. Before securing - Ensure the Bottom Panel lines up with the grooves the whole way around the drawer.
  • Page 13 Step 17 You will need 2 x Handles 4 x Handle (P15) (H12) Bolts (H13) Phillips Head Screwdriver Attach 2 x Handles (H12) to Drawer Front (P15) with 4 x Handle Bolts (H13). Tighten Screws and Bolts using a Phillips head screwdriver. Step 18 (P15) Insert the assembled drawer into the unit by gently guiding the drawer runners into place.
  • Page 14 Step 19 You will need (P14) 2 x Small 4 x Handle Screws (H5) Bolts (H13) (P13) 6 x Hinges 12 x Timber (H16) Screws (H17) 2 x Steel Plate 2 x Long (H20) Handles (H21) Phillips Head Screwdriver Attach 2 x Steel Plates (H20) to Doors (P13&P14) with 2 x Small Screws (H5). Attach 6 x Hinges (H16) to Doors (P13&P14) with 12 x Timber Screws (H17).

  • Page 15: Job Complete

    Step 21 You will need (P1) (P8) 10 x Wedges 10 x Wedge (H23) Screws (H24) 1 x Safety 1 x Safety Strap Strap (H25) Screw (H26) 1 x Washer Phillips Head (P8) (H27) Screwdriver Attach 1 x Safety Strap (H25) to Top Panel (P1) with 1 x Safety Strap Screw (H26) and 1 x Washer (H27) by tightening with the Phillips Head Screwdriver.
  • Page 16 Step 23 You will need OPTIONAL STEP TO LEVEL WARDROBE ON UNEVEN FLOOR 1 x Wedge (H19) SNAP Insert the wedge (H19) under the wardrobe at the point where the floor is lowest. Push in until wardrobe is level, then snap off the excess wedge sections. fantasticfurniture.com.au Page 16...
  • Page 17 TO ADJUST YOUR DOORS TO MAKE THE GAPS MORE EVEN STEP 1 Open the door. Top panel Door STEP 2 STEP 2a MOVE DOOR IN STEP 2b MOVE DOOR OUT Adjust the door move in or out a little projective line of projective line of top panel top panel...
