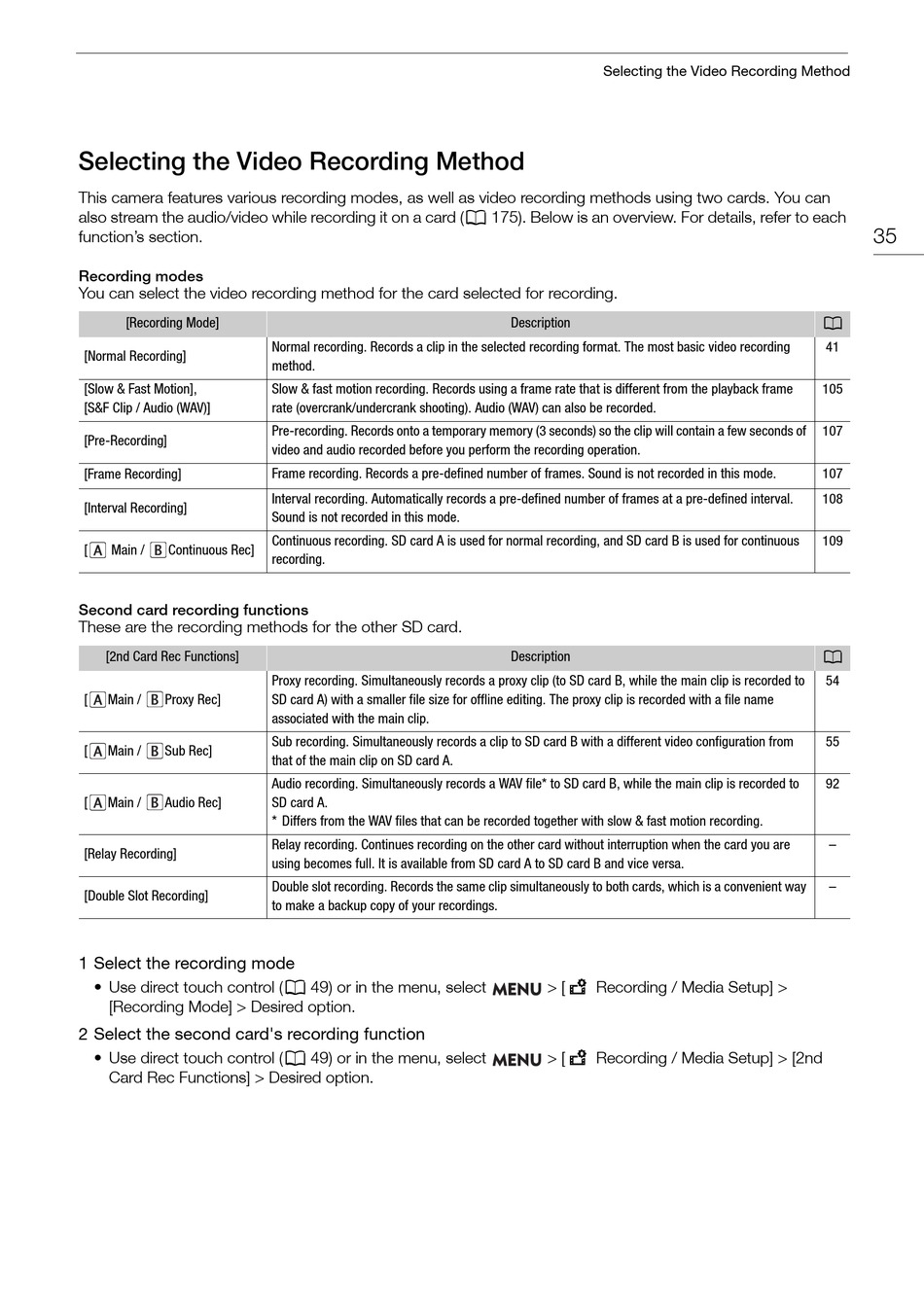

Selecting the Video Recording Method

This camera features various recording modes, as well as video recording methods using two cards. You can
also stream the audio/video while recording it on a card (A 175). Below is an overview. For details, refer to each
function's section.
Recording modes
You can select the video recording method for the card selected for recording.
[Recording Mode]
[Normal Recording]
[Slow & Fast Motion],
[S&F Clip / Audio (WAV)]
[Pre-Recording]
[Frame Recording]
[Interval Recording]
[ Main / Continuous Rec]
Second card recording functions
These are the recording methods for the other SD card.
[2nd Card Rec Functions]
[ Main / Proxy Rec]
[ Main / Sub Rec]
[ Main / Audio Rec]
[Relay Recording]
[Double Slot Recording]
1 Select the recording mode
• Use direct touch control (A 49) or in the menu, select
[Recording Mode] > Desired option.
2 Select the second card's recording function
• Use direct touch control (A 49) or in the menu, select
Card Rec Functions] > Desired option.
Normal recording. Records a clip in the selected recording format. The most basic video recording
method.
Slow & fast motion recording. Records using a frame rate that is different from the playback frame
rate (overcrank/undercrank shooting). Audio (WAV) can also be recorded.
Pre-recording. Records onto a temporary memory (3 seconds) so the clip will contain a few seconds of
video and audio recorded before you perform the recording operation.
Frame recording. Records a pre-defined number of frames. Sound is not recorded in this mode.
Interval recording. Automatically records a pre-defined number of frames at a pre-defined interval.
Sound is not recorded in this mode.
Continuous recording. SD card A is used for normal recording, and SD card B is used for continuous
recording.
Proxy recording. Simultaneously records a proxy clip (to SD card B, while the main clip is recorded to
SD card A) with a smaller file size for offline editing. The proxy clip is recorded with a file name
associated with the main clip.
Sub recording. Simultaneously records a clip to SD card B with a different video configuration from
that of the main clip on SD card A.
Audio recording. Simultaneously records a WAV file* to SD card B, while the main clip is recorded to
SD card A.
* Differs from the WAV files that can be recorded together with slow & fast motion recording.
Relay recording. Continues recording on the other card without interruption when the card you are
using becomes full. It is available from SD card A to SD card B and vice versa.
Double slot recording. Records the same clip simultaneously to both cards, which is a convenient way
to make a backup copy of your recordings.
Selecting the Video Recording Method
Description
Description
Æ
> [ Recording / Media Setup] >
Æ
> [ Recording / Media Setup] > [2nd
35
A
41
105
107
107
108
109
A
54
55
92
–
–
