Displays2go SMFSTSDWHT Assembly Instructions

ASSEMBLY INSTRUCTIONS

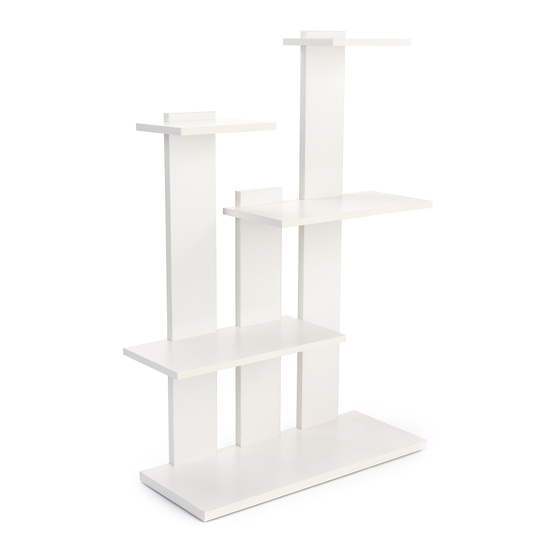

SMFSTSDWHT - Floor-Standing Tiered Shelving Display

PARTS

A,B Top Panel
C,D Shelf
E Bottom Panel
F,G,H Vertical Panel
ATTENTION: Before you start assembling the display, prepare a soft surface work area on the floor. You will need a phillips
screwdriver and a flat screwdriver. To avoid damage to the laminated wood surfaces, keep hardware parts separated until they are
needed for assembly. 2 PERSON RECOMMENDED.
How to join 2 panels with Bolt and Barrel Nut:
(a) Insert Bolt [H1] through the pre-drilled hole on a vertical panel.
(b) Insert Barrel Nut [H2] into the hole on the bottom side hole of a horizontal panel.
Tips: Use flat screwdriver to rotate the barrel nut and align the through hole with the direction of the bolt.
(c) Insert the bolt into the hole on the side of the horizontal panel and catch the barrel nut.
(d) Use a phillips screwdriver to turn the bolt clockwise to fix the horizontal panel with the vertical panel. Do not over tighten.
H1
Reverse Side

Step A

1.
Attach Bottom Panel (E) to Vertical Panels (F, G, H) using Bolts (H1)
and Barrel Nuts (H2) as shown.
2 pcs
H1
18 pcs
2 pcs
1 pc
H2
18 pcs
3 pcs
H2
Reverse Side

Step B

E

HARDWARE

Bolt
Barrel Nut

Step C

H
H3
Angle Bracket
3 pcs
H4
Wood Screw
9 pcs
Reverse Side

Step D

F
G
V20.08
Reverse Side
1 of 3
