User Manual
V22.01
Model: DF043NLB,DF043TLB

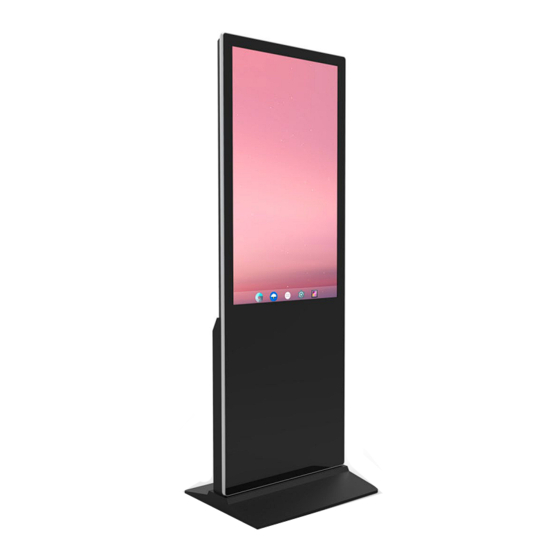

Product Name: 43inch Floor Standing Digital Signage, Non Touch
43inch Floor Standing Digital Signage, IR Touch
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1 / 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF043NLB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Displays2go DF043NLB

Summary of Contents for Displays2go DF043NLB

  • Page 1 User Manual V22.01 Model: DF043NLB,DF043TLB Product Name: 43inch Floor Standing Digital Signage, Non Touch 43inch Floor Standing Digital Signage, IR Touch Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product.

  • Page 2: Table Of Contents

    Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 HDMI Input Feature ........................6 Steps for Unpacking ........................7 Wheel and base installation steps ....................8 Remote Control ........................9 Description of Basic Operation .....................

  • Page 3: Features

    Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire.
  • Page 4 WARNING  Cut off the power supply before connecting or disconnecting any cables.  Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire.  Do not place the Digital Signage in the positions such as: 1.

  • Page 5: Assembly And Connection

    Note: Contact Displays2Go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio...

  • Page 6: Interfaces

    interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Interfaces 1. USB interface * 3, 2. RJ45 interface(Ethernet), 3. HDMI input, 4. Socket, 5. Switch, Note: Please pull out the power plug before installing or disassembling the unit! HDMI Input Feature 1.

  • Page 7: Steps For Unpacking

    Steps for Unpacking 1. Open the top cover as shown in Fig. 2, Fig. 1 Fig. 2 1. Take out the base from the package as shown in Fig. 3, 2. Carefully lift out the unit as shown in Fig. 4 and place it on the shipping box (avoid scratching), the unpacking is completed, as shown in Figure 5.

  • Page 8: Wheel And Base Installation Steps

    Wheel and base installation steps 1. Install 4 casters in the corresponding holes at the bottom of the base (Fig. 2), so that the casters are installed on the base (Fig. 3). Tighten all casters with the supplied screwdriver. Fig. 1 Fig.

  • Page 9: Remote Control

    Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ...

  • Page 10: Description Of Basic Operation

    Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on, if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”...

  • Page 11: File Manager

    File Manager 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 2), 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3), 3.

  • Page 12: Status Of Menu Bar

    Description of Settings Interface (shown on the right) Icon Function Network & internet Connected devices Apps & notifications Display Sound Storage Privacy Location Security Accounts Accessibility Screenshot Memory System About table Status of Menu Bar 1. Click the “setting”(Fig. 1), 2.

  • Page 13: Screen Rotate

    Fig. 4 Fig. 5 Screen Rotate 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System assistant” into Fig. 2 3. Choose the degree you would like to Rotate screen(Fig. 3), then click “CONFIRM”, after the restart, the screen will be rotated (Fig.

  • Page 14: Choose System Language

    Fig. 4 Choose System Language: 1. Get into “System”(Fig. 1), then click “Language & input” (Fig. 2) 2. Click “Languages”, then click “Add a language” (Fig. 3) 3. You can add the required system language (Fig. 4) 4. Drag the system language you just added up to the front(Fig. 5) Fig.

  • Page 15: Factory Reset

    Fig. 4 Fig. 5 Factory Reset: 1. Get into Settings, then click “System” (Fig. 1), 2. Open the drop-down box for advanced options (Fig. 2), 3. Click “Reset options” (Fig. 3), 4. Click “Erase all data (factory reset)” (Fig. 4), 5.

  • Page 16: Diviex App Introduction

    Fig. 4 Fig. 5 DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements: RK3568 32GB Operating system Android 11 How to upload media files : Step 2: Make new directory named “MediaFolder” in root directory in U disk. Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music".
  • Page 17 Format requirement: Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/ MKV Music Step 3: Plug in the USB drive into the device and click the DiViEx App to open it. Step 4: When the screen shows “Copy finished” after “Usb Disk: ”, 17 / 28...

  • Page 18: Setting

    Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Auto Boot ...
  • Page 19 Sticker  You can add seven special effects to the picture 19 / 28...
  • Page 20 Frame  You can add different borders to the picture Reset  Restore the original image Picture sharing “ ”  When you click the share button, you can share the picture to the corresponding APP Pictures saving “ ” ...

  • Page 21: Music

    Image deletion  Click " " to delete unwanted pictures Music: List all music files in Playlist library Add music to playing list music from Playlist library, you can click right arrow, music title will show the  number of playlist music. To remove background music from the playlist, click the left arrow in the playlist ...

  • Page 22: Technical Specifications

    Technical Specifications ITEM SPECIFICATION LCD size 43” Light source LED backlight Resolution 1920*1080 (pixels) Brightness 400cd/m Contrast 1200: 1 Response 10ms Panel Pixel pitch 0.16 (H) * 0.49(V) mm Refresh rate 60Hz Viewing angle 178° (H)/178° (V) Color saturation Viewable area 940.9 (H) * 529.3 (V) mm Chromaticness 16.7M...
  • Page 23 Audio output, supported files Left and right audio channel, MP3 RTC (real-time clock) Functions Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces 3.5mm headphone WiFi Type-C OTG No touch:47kg Net weight IR Touch:50kg No touch:58kg Gross weight...

  • Page 24: Troubleshooting

    Troubleshooting the Digital Signs – DF043NLB,DF043TLB Issue Probable Cause Solutions No picture or sound Unit not plugged into wall outlet   □ Check that the unit is plugged into wall Power cord not properly  outlet. connected to the terminal on the □...
  • Page 25 Did you purchase the   □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at content to play Did the customer purchase or ...

  • Page 26: Cleaning And Maintenance

    trasitions, slide time and looping > Play MX Player steps > Follow same steps as DiViEX App > MediaFolder > Video > Editor > Paste. Open MX Player and select video to play. Loop video: While the video is playing, click on the video and there should be 3 dots in the top right corner.

  • Page 27: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product

    Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О...

  • Page 28: Fcc Statement

    FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
