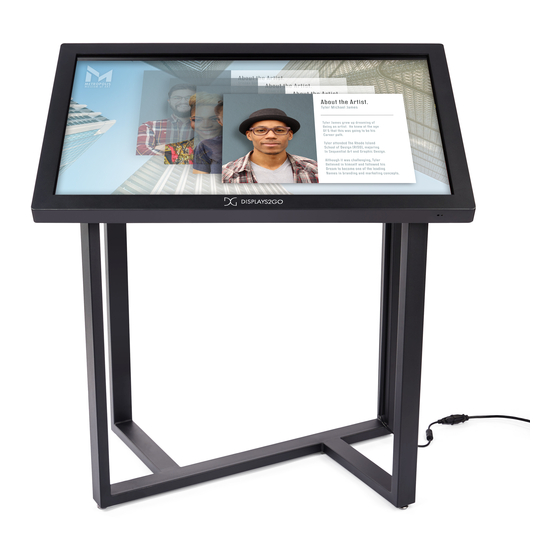

43" Indoor Landscape
IR Touch Digital Kiosk
U S E R M A N U A L
SKUs: DK043TLB,DK043TLW
FCC ID: 2ASCB- DK043TLB,DK043TLW
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Scan the QR code to
visit the product page.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DK043TLB
Summary of Contents for Displays2go DK043TLB
- Page 1 Scan the QR code to visit the product page. FCC ID: 2ASCB- DK043TLB,DK043TLW This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 2: Table Of Contents
Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 Steps for Unpacking ........................6 Cable trough installation mode ..................... 7 Remote Control ........................8 Description of Basic Operation ....................9 Power on/Standby ........................ -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 WARNING Cut off the power supply before connecting or disconnecting any cables. Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. Do not place the Digital Signage in the positions such as: 1.
-
Page 5: Assembly And Connection
Note: Contact Displays2Go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment. -
Page 6: Interfaces
Interfaces 1. Power port, 2. On/Off button, 3. RJ45 interface(Ethernet), 4. Type-C OTG, 5. Sim card, 6. 3.5mm headphone connector, 7. USB interface * 2, 8. WiFi interface, 9. TF card. Note: Please pull out the power plug before installing or disassembling the unit! Steps for Unpacking 1. -
Page 7: Cable Trough Installation Mode
Cable trough installation mode 1. Take out the cord management channel and tear off the surface coating of the bottom adhesive on the back. Refer to Figure 1. 2. Paste the channel on one of the leg of the table, leaving 25mm space from the top and bottom to let cord come through, as shown in Figure 2. -
Page 8: Remote Control
Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ... -
Page 9: Description Of Basic Operation
Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on, if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”... -
Page 10: Local Settings
Fig. 3 Local Settings 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click the “Settings” icon in the “APPS” menu interface (Fig. 2) and enter “Wi-Fi” menu (Fig. 3), 3. -
Page 11: Status Of Menu Bar
Description of Settings Interface (shown on the right) Icon Function Network & internet Connected devices Apps & notifications Display Sound Storage Privacy Location Security Accounts Accessibility Screenshot Memory System About table Status of Menu Bar 1. Click the “setting”(Fig. 1), 2. -
Page 12: Screen Rotate
Fig. 3 Fig. 4 Fig. 5 Screen Rotate 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System assistant” into Fig. 2 3. Choose the degree you would like to Rotate screen(Fig. 3), then click “CONFIRM”, after the restart, the screen will be rotated (Fig. -
Page 13: Choose System Language
Choose System Language: 1. 1.Get into “System”(Fig. 1), then click “Language & input” (Fig. 2) 2. Click “Languages”, then click “Add a language” (Fig. 3) 3. You can add the required system language (Fig. 4) 4. Drag the system language you just added up to the front(Fig. 5) Fig. -
Page 14: Factory Reset
Factory Reset: 1. Get into Settings, then click “System” (Fig. 1), 2. Open the drop-down box for advanced options (Fig. 2), 3. Click “Reset options” (Fig. 3), 4. Click “Erase all data (factory reset)” (Fig. 4), 5. Click “Erase all data”(Fig. 5). Fig. -
Page 15: Diviex App Introduction
DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements: RK3568 32GB Operating system Android 11 How to upload media files : Step 2: Make new directory named “MediaFolder” in root directory in U disk. Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". -
Page 16: Setting
Step 4: When the screen shows “Copy finished” after “Usb Disk: ”, Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Auto Boot ... - Page 17 NEGATIVE, POSTERIZE, SATURATE, SEPIA, SHARPEN, TEMPERATURE, TINT, VIGNETTE, CROSS_PROCESS, BLACK_WHITE, FLIP_HORIZONTAL, FILP_VERTICAL, PSTERIZE, ROTATE. Sticker You can add seven special effects to the picture Frame You can add different borders to the picture Reset Restore the original image Picture sharing “...
- Page 18 Pictures saving “ ” When you click the Save button, it will create a new picture Image deletion Click " " to delete unwanted pictures 18 / 26...
-
Page 19: Music
Music: List all music files in Playlist library Add music to playing list music from Playlist library, you can click right arrow, music title will show the number of playlist music. To remove background music from the playlist, click the left arrow in the playlist ... -
Page 20: Technical Specifications
Technical Specifications ITEM SPECIFICATION LCD size 43” Light source LED backlight Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 400cd/m (typ.) Contrast (typ.) 1200: 1 (typ.) Response (ms) 10ms (typ.) Panel Pixel pitch 0.16 (H) mm * 0.49 (V) mm Refresh rate 60Hz Viewing angle 178°... - Page 21 Audio output, supported files Left and right audio channel, MP3 RTC (real-time clock) Functions Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces 3.5mm headphone Wi-Fi Type-C OTG Net weight 90.4lbs (41kg) Gross weight 125.6 lbs (57kg) Unit dimensions (W*D*H)
-
Page 22: Troubleshooting
Troubleshooting the Digital Signs – DK043TLB,DK043TLW Issue Probable Cause Solutions No picture or sound Unit not plugged into wall outlet □ Check that the unit is plugged into wall Power cord not properly outlet. connected to the terminal on the □... - Page 23 Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at content to play Did the customer purchase or ...
-
Page 24: Cleaning And Maintenance
Android board is defective. Images> Editor > Paste Open DiViEX app and select desired transitions, slide time and looping > Play MX Player steps > Follow same steps as DiViEX App > MediaFolder > Video > Editor > Paste. Open MX Player and select video to play. -
Page 25: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О... -
Page 26: Fcc Statement
FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
