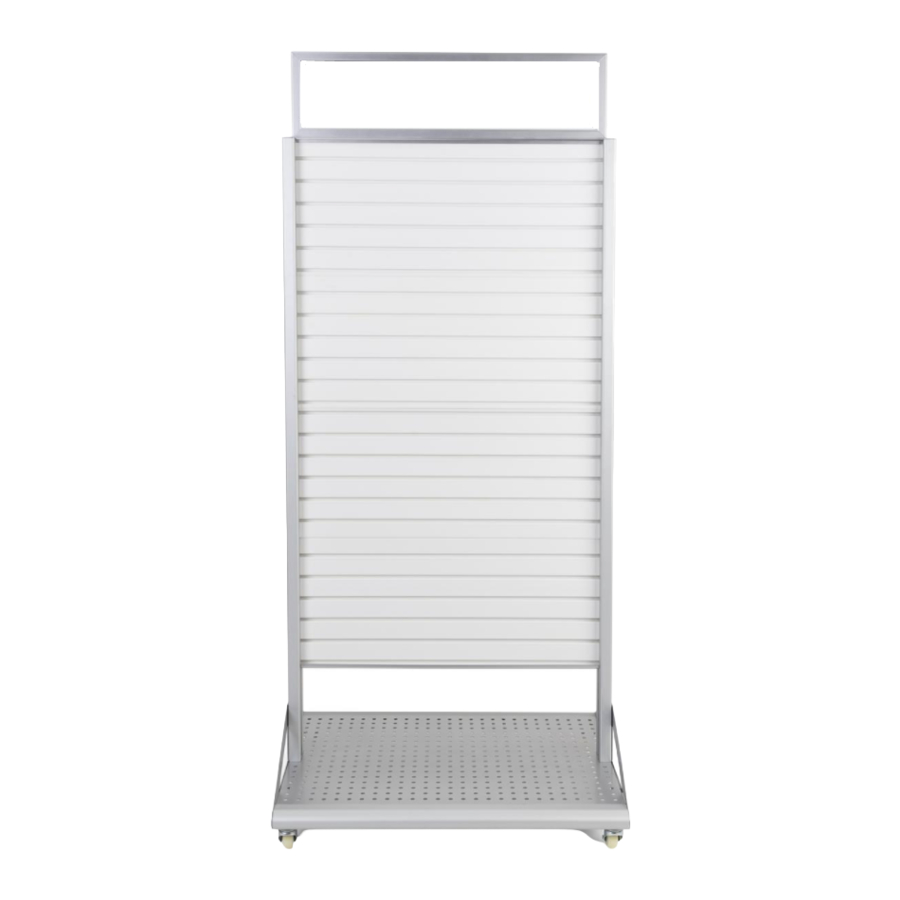

- Page 1 Assembly Instructions SMMSD - Modular Slatwall Display Rev 20.10 Scan QR code to visit the product page: If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2G customer service 844-221-3388.
- Page 2 Parts List M6x20 Hex Drive Flat head Screws Side bracket 2 PCS 24 PCS Alu. base plate 1 PC M4x16 Phillips Rounded Head Screw 6 PCS Alu connecting tube Wheel with lock Wheel 2 PCS 2 PCS 2 PCS M4x8 Phillips Low Profile Head Screw 4 PCS M4x16 Phillips Flat Head Screw Poster frame...
- Page 3 Assembly Instructions Side bracket Alu. connecting tube Side bracket Alu. connecting tube M6x20 Hex Drive Flat Head Screw 16 PCS Step 1 Alu. Upright Pole Assemble the base by connecting 2 side brackets with 2 Aluminum Tubes using 16 M6x20 Hex Drive Flat Head screws as shown above. Bottom support bar Wheel M4x8 Phillips Low Profile...
- Page 4 Poster frame M4x16 Phillips Flat Head Screw 4 PCS PVC Slatwall PVC Slatwall Poster frame M4x16 Phillips Flat Head Screw 4 PCS Top support bar Step 5 Remove the lens and back sheet from the poster frame. Securely Fix the poster frame onto the top support bar using 4 M4x16 Phillips Flat Head Screws.
