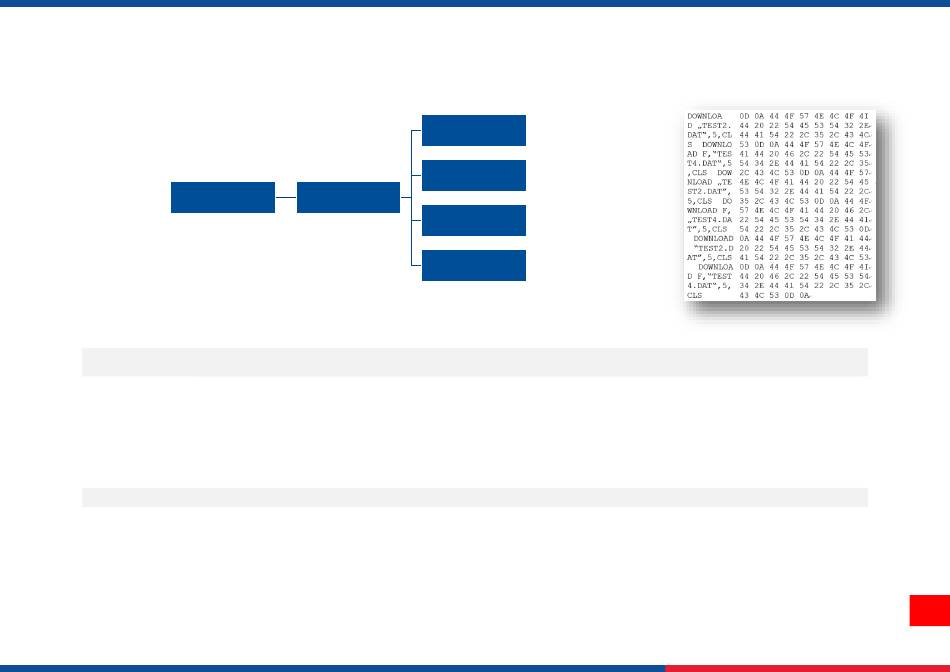

6.12 Diagnostic

Print Config.
Dump Mode
Main Menu Diagnostics
Battery
Print Head
Item Description
Print current printer configuration to the label. The configuration printout contains print head test pattern, which is useful
Print Config.
for checking the dot damage on the print head heater.
Captures the data from the communications port and prints out the data received by printer. In the dump mode, all
characters will be printed in 2 columns. The left side characters are received from your system and right side data are
Dump Mode
the corresponding hexadecimal value of the characters. It allows users or engineers to verify and debug the program.
Dump mode requires 4" wide paper width.
Battery Check the battery conditions.
Check print head's temperature and bad dots.
Print Head
