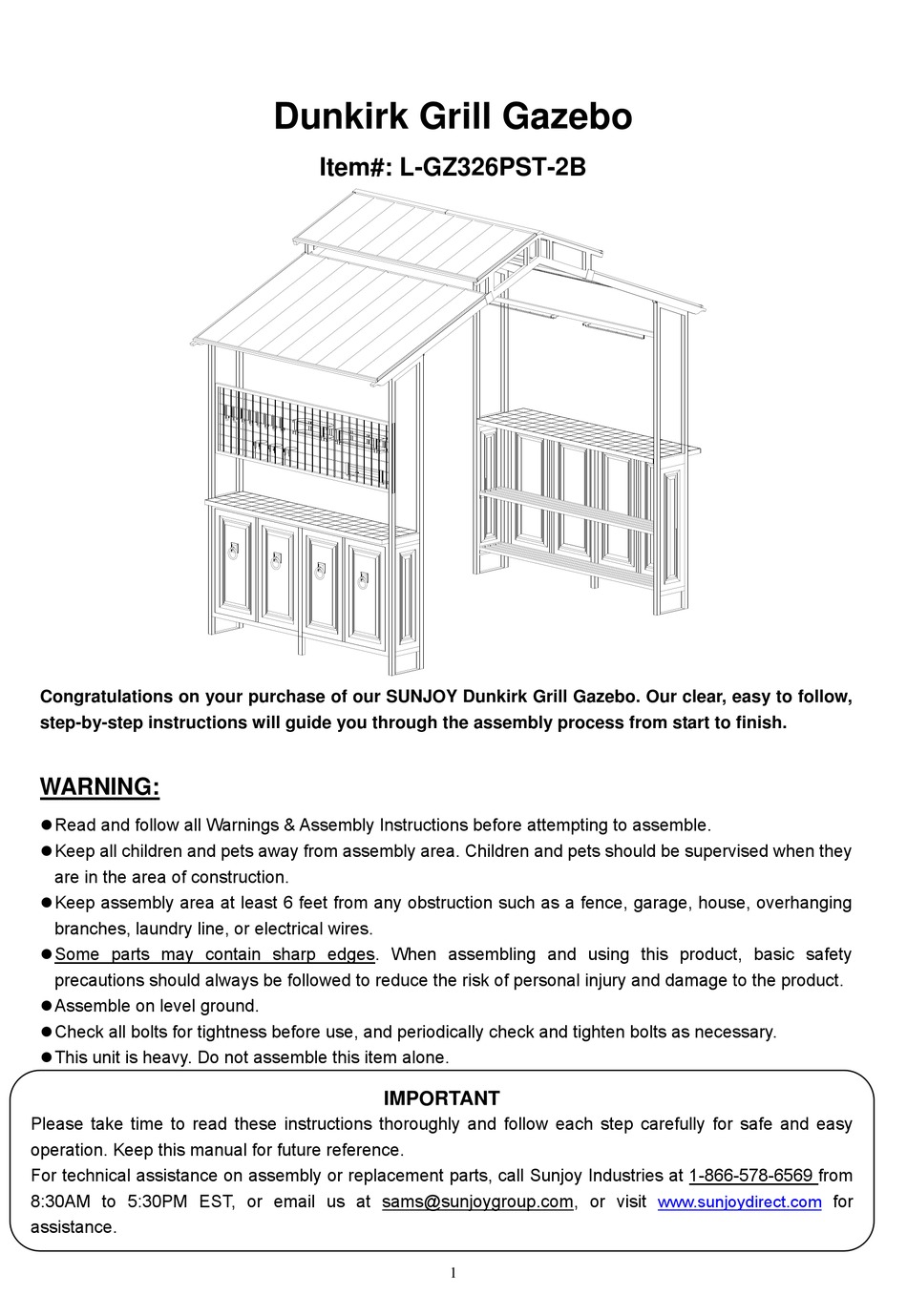

Congratulations on your purchase of our SUNJOY Dunkirk Grill Gazebo. Our clear, easy to follow,
step-by-step instructions will guide you through the assembly process from start to finish.
WARNING:
 Read and follow all Warnings & Assembly Instructions before attempting to assemble.
 Keep all children and pets away from assembly area. Children and pets should be supervised when they
are in the area of construction.
 Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging
branches, laundry line, or electrical wires.
 Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the product.
 Assemble on level ground.
 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
 This unit is heavy. Do not assemble this item alone.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569 from
8:30AM to 5:30PM EST, or email us at sams@sunjoygroup.com, or visit
assistance.
Dunkirk Grill Gazebo
Item#: L-GZ326PST-2B
IMPORTANT
1
www.sunjoydirect.com
for

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dunkirk L-GZ326PST-2B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy Dunkirk L-GZ326PST-2B

  • Page 1 Dunkirk Grill Gazebo Item#: L-GZ326PST-2B Congratulations on your purchase of our SUNJOY Dunkirk Grill Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING:  Read and follow all Warnings & Assembly Instructions before attempting to assemble.
  • Page 3: Parts List

    Parts List Top Screen Tilt Beam (1) Tilt Beam (2) Baffler Upper Connection Pole Lower Connection Pole Top Connection Pole Top Hook Cover Supporting Bar Big Cover (1) Big Cover (2) Big Cover (3) Small Cover (1) Small Cover (2) Small Cover (3) Cover Panel Post (1)
  • Page 4: Hardware Pack

    Parts List Small Slate Table Top Corner Slice Shelf 1 Shelf 2 Screen Foot Hanger Bar Grid Big Basket Small Basket Paper Towel Rack Paper Towel Holder Small Hook Cover Panel Presser Hardware Pack 1 Screw M6X15 28 PCS Flat Washer M6 32 PCS Screw M6X30 4 PCS...
  • Page 5 Fig.1: Insert Tilt Beam (B1) to Top Screen (A), and tighten them with Baffler (B3) by using Screw (AA) and Washer (BB). Same way for Tilt Beam (B2). Then tighten Upper Connection Pole (C1) to it by Screw (AA) and Washer (BB) (Side with mark “UP”...
  • Page 6 Hardware Pack 2 Flat Washer M6 36 PCS Screw M6X30 4 PCS Screw M6X15 30 PCS Screw M6X40 2 PCS Fig.6: Insert the lower end of Big Cover (F2) to Cover Supporting Bar (E), and tighten the upper end of (F2) to Upper Connection Pole (C1) with Screw (DD) and Washer (BB).
  • Page 7 Fig.8: Insert Small Cover (G2) to Cover Supporting Bar (E), and then insert Small Cover (G1), (G3) to Cover Supporting Bar (E). Tighten the side with Screw (DD) and Washer (BB). Fig.9: Tighten Cover Panel (H) to Top Connection Pole (D1) with Screw (EE) and Washer (BB). Fig.10:Fix Cover Panel Presser (V) to Cover (F1), (F2), (F3), Small Cover (G1), (G2) and (G3).
  • Page 8 Hardware Pack 3 Screw M6X15 16PCS Flat Washer M6 40PCS Screw M6X45 8 PCS Screw SS Finish M6X35 4 PCS Flat Washer SS Finish M6 4PCS Screw M6X15 16 PCS Stake Φ6*180 8 PCS...
  • Page 9 Fig.11: Tighten Screen Foot (M) to the Middle of Screen (J1 & J2) with Screw (AA) and Washer (BB). Fig.12: Tighten one Screen (J2) to Post (I1 & I2) with Screw (JJ) and Washer (BB). Tighten another Screen (J1) to Post (I3 & I4). Fig 13-1: Put up the assembled part, insert Tilt Beam (B1) and (B2) into the hole of Post (I1&I2&I3&I4).
  • Page 10 Limited Warranty: Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
