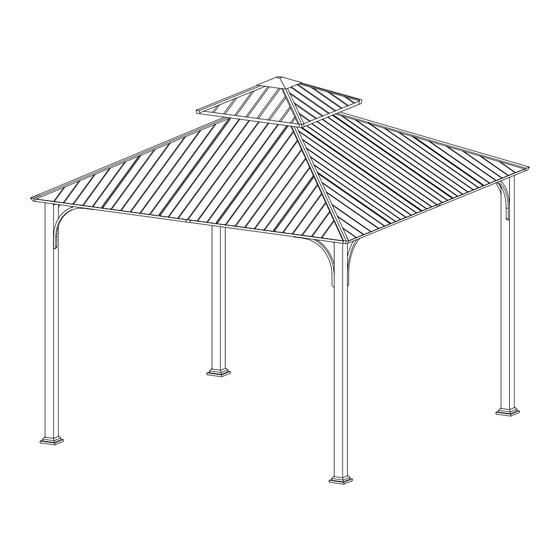

Assembly Instructions
Item #: L-GZ340PST-3N-6
anytime 24 hours / 7 days a week. You can also send the email to
or visit
www.sunjoyonline.com
IMPORTANT
to get tech. assistance or to place your
亚马逊邮箱要改,
最好是第一页整页
打出来改掉,贴得
很难看
Production Number: 20183840

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ340PST-3N-6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ340PST-3N-6

  • Page 1 Assembly Instructions Item #: L-GZ340PST-3N-6 IMPORTANT Thank you very much for choosing Sunjoy Group. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference. We would like to hear from you with any comments or suggestions. You can call us toll-free at 1-866-578-6569 anytime 24 hours / 7 days a week.
  • Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage,house, overhanging branches, laundry line or electrical wires.
  • Page 3: Parts List

    Parts List Description Part Number Image P11178B01108 Post Stake Slice P11664A01108 Stake Cover P11552A01108 Oblique Beam Connector P10744A01108 P10840A01108 Middle Beam Connector Corner Cross Beam P11029D01108 Long Cross Beam P11030D01108 Guide Rail P12172A01108 Big top frame angle P02309A01108 Big top frame long bar P02310A01108 Oblique Beam P10336B01108...
  • Page 4: Hardware Pack

    Small Top Connector P10144B01108 Small Top Oblique Beam P10265A01108 Small Top Oblique Beam P12063A01108 Cover Big Top Oblique Beam P12064A01108 Cover P11980B01160 Small Top Cover Big Top Cover P11981B01160 Middle Left Cover P11982B01160 Middle Right Cover P11983B01160 Small Left Cover P11984B01160 P11985B01160 Small Right Cover...
  • Page 5 Fig.1: Put Stake Cover (C) to Post (A). Fix Stake Slice (B) to Post (A) by Bolt (AA) and Flat Washer (BB). Fig.2: Put Oblique Beam Connector (D) to Post (A) and fix them by Bolt (CC) and Flat Washer (BB). Fig.3: Insert Corner Cross Beam 1 (F) to Long Cross Beam (G) and fix them by Bolt (DD) and Flat Washer (BB).
  • Page 6 Hardware Pack 2 Bolt M6X15 44 PCS H09015C11 116 PCS H19001C11 Flat Washer M6 H02015C11 Bolt M6X15 32 PCS Bolt M6X55 20 PCS H09055C11 H14001C11 Nut M6 20 PCS Fig.8-1:Connect Big top frame angle (J1)and Big top frame long bar(J2) by Bolt (CC) and Flat Washer (BB).
  • Page 7 Fig.9: Attach the bottom of Oblique Beam (K) to Oblique Beam Connector (D) by Bolt (EE), Flat Washer (BB) and Nut (GG). Fig.10: Attach the top of Middle Beam (L) to Big Top Frame by Bolt (CC) and Flat Washer (BB). Fig.11: Attach the bottom of Middle Beam (L) to Middle Beam Connector (E) by Bolt (EE), Flat Washer (BB) and Nut (GG).
  • Page 8 Hardware Pack 3 Flat Washer M6 73 PCS H19001C11 Bolt M6x15 56 PCS H09015C11 Bolt M6x40 16 PCS H09040C11 Stake Φ8x260 16 PCS P12402A01001 M6 Globe Nut H15001C11 1 PCS Fig.18: Use Bolt (AA) and Flat Washer (BB) to fasten the small top cover (T1) on the Small Top Oblique Beam (R).
  • Page 9 Fig.22-1: Attach the Big Top Cover (T2) on the Big Top Frame (J1) (J2)by using Bolt(AA)and Flat Washer (BB). Fig.22-2: Use Bolt(AA) and Flat Washer(BB) to fasten the Big Top Cover(T3、T4、T5、T6) on the Oblique Beam(K). Fig.23: Insert the Pilot Pin of the Big Top Oblique Beam Cover (S2) into the Small Top Oblique Beam(R), then use Bolt(FF) and Flat Washer(BB) to fasten it on the Oblique Beam.
  • Page 10: Care And Maintenance

    Care & Maintenance: Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty.
