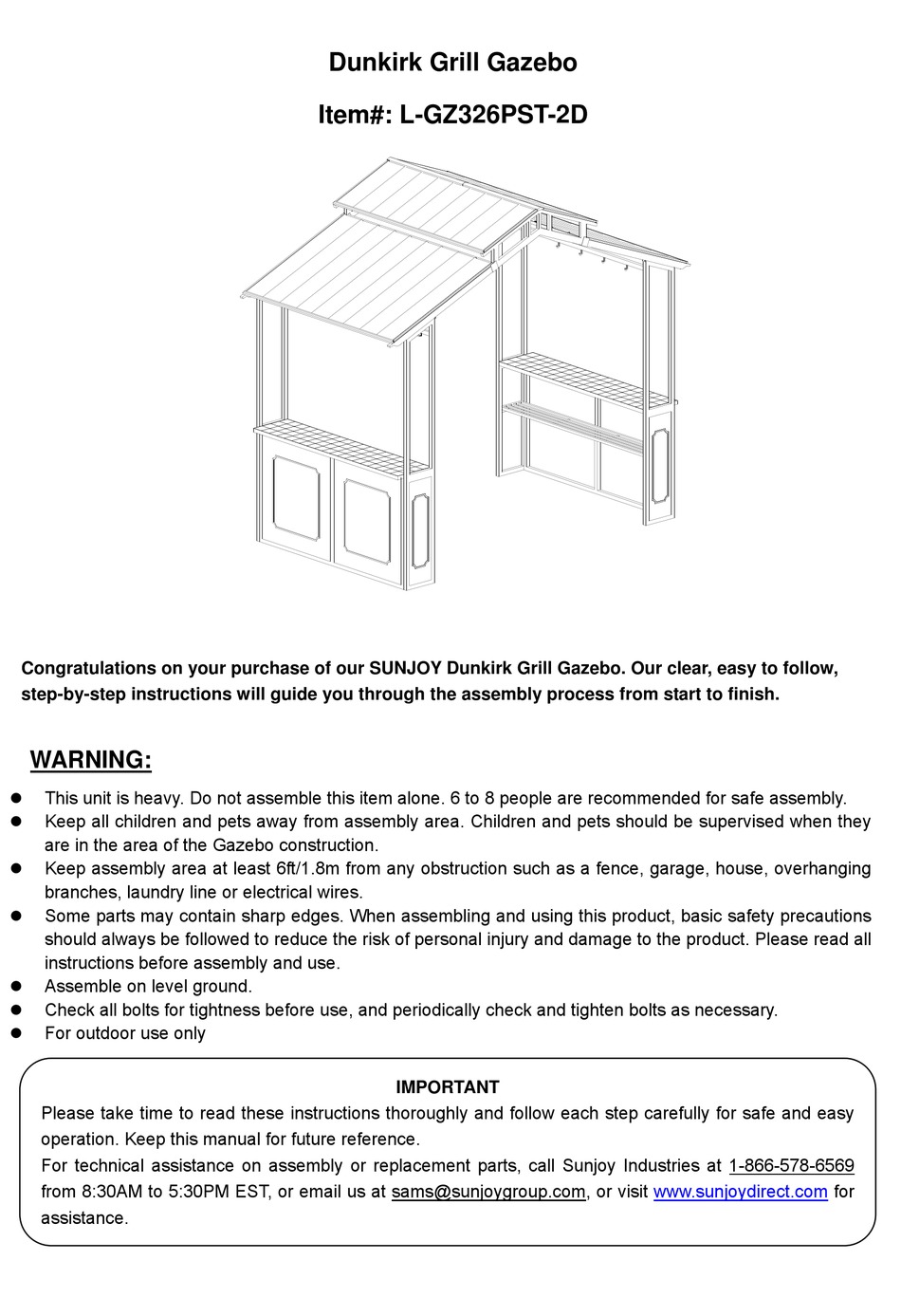

Congratulations on your purchase of our SUNJOY Dunkirk Grill Gazebo. Our clear, easy to follow,
step-by-step instructions will guide you through the assembly process from start to finish.
WARNING:
This unit is heavy. Do not assemble this item alone. 6 to 8 people are recommended for safe assembly.
Keep all children and pets away from assembly area. Children and pets should be supervised when they
are in the area of the Gazebo construction.
Keep assembly area at least 6ft/1.8m from any obstruction such as a fence, garage, house, overhanging
branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions
should always be followed to reduce the risk of personal injury and damage to the product. Please read all
instructions before assembly and use.
Assemble on level ground.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
For outdoor use only
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569
from 8:30AM to 5:30PM EST, or email us at sams@sunjoygroup.com, or visit
assistance.
Dunkirk Grill Gazebo
Item#: L-GZ326PST-2D
IMPORTANT
www.sunjoydirect.com
for

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dunkirk L-GZ326PST-2D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy Dunkirk L-GZ326PST-2D

  • Page 1 Dunkirk Grill Gazebo Item#: L-GZ326PST-2D Congratulations on your purchase of our SUNJOY Dunkirk Grill Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING:  This unit is heavy. Do not assemble this item alone. 6 to 8 people are recommended for safe assembly.
  • Page 2: Parts List

    Parts List Top Screen Tilt Beam 1 Tilt Beam 2 Baffler Upper Connection Pole Lower Connection Pole Top Connection Pole Top Hook Cover Supporting Bar Big Cover 1 Big Cover 2 Big Cover 3 Small Cover 1 Small Cover 2 Small Cover 3 Cover Panel Post 1...
  • Page 3: Hardware Pack

    Table Top Shelf Hanger Bar Hook Rack Cover Panel Presser Corner Slice Hardware Pack 1 Bolt M6X15 28 PCS Flat Washer M6 32 PCS Bolt M6X30 4 PCS Wrench M6 1 PC...
  • Page 4 Fig 1: Insert Tilt Beam 1 (B1) to Top Screen (A), and tighten them with Baffler (B3) by Bolt (AA) and Flat Washer (BB). Use the same way for Tilt Beam (B2). Then tighten Upper Connection Pole (C1) to it by Bolt (AA) and Flat Washer (BB) (Side with mark “UP”...
  • Page 5 Hardware Pack 2 Flat Washer M6 36 PCS Bolt M6X30 4 PCS Bolt M6X15 30 PCS Bolt M6X40 2 PCS Fig 6: Insert lower end of Big Cover 2 (F2) into Cover Supporting Bar (E), then tighten Upper end of Big Cover 2 (F2) to Upper Connection Pole (C1), and tighten them by Bolts (DD) and Flat Washer (BB).
  • Page 6 Fig 7: Tighten Cover Supporting Bar (E) on Top Screen (A) by Bolt (CC) and Flat Washer (BB). Fig 8: Insert the lower end of Small Cover 2 (G2) into Cover Supporting Bar (E). Insert the lower end of Small Cover 1&3 (G1&G3) into Cover Supporting Bar (E), tighten the sides by Bolt (DD) and Flat Washer (BB).
  • Page 7 Hardware Pack 3 Bolt M6X15 16 PCS Flat Washer M6 40 PCS Bolt M6X15 16PCS Bolt M6X45 8 PCS Ground Stake Φ8x180 8 PCS...
  • Page 8 Fig 11: Assemble Post 1&2 (I1&I2) to Screen (J) by Bolt (JJ) and Washer (BB). Fig 12-1: Put up the assembled part, insert Tilt Beam (B1) and (B2) into the hole of Post (I1&I2). Fig 12: Connect Post (I1&I2) with Tilt Beam (B1), (B2) by using Screw (AA) and Flat Washer (BB). Fig 13: Put Table Top (K) on the assembled Screen, and fix it on Post 1&2 (I1&I2) by Corner Slice (P), Bolt (DD) and Washer (BB).
  • Page 9 Limited Warranty: Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
