Avalon gazebo 10’x12’

Advertisement

ASSEMBLY INSTRUCTIONS
ITEM# L-GZ137PST-1B

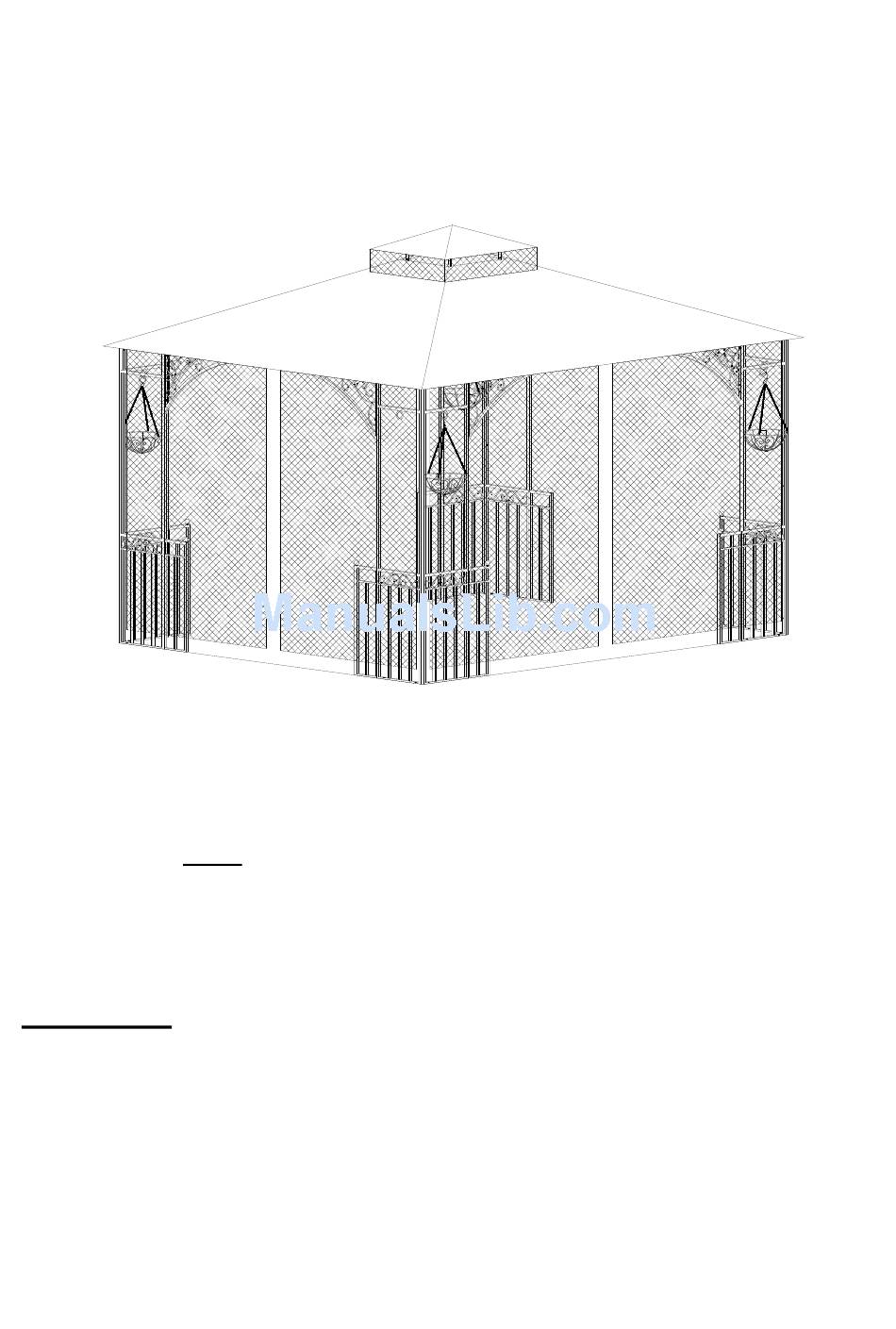

AVALON GAZEBO 10'x12'
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The
final product will be a quality piece that will go together smoothly and give years of enjoyment.
Note: THIS UNIT IS HEAVY!
DO NOT assemble this item alone for safety. Four people are necessary.
Item Identification: For ease of identification, all parts are labeled to correspond to the Step number in which
the part is used.
Warnings:
1. Assembly Instructions must be followed.
2.
Pegs supplied must be used to hold this gazebo in place when upright.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
It is not fire proof. The fabric may burn if left in continuous contact with any flame source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ137PST-1B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-GZ137PST-1B

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM# L-GZ137PST-1B AVALON GAZEBO 10’x12’ Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will go together smoothly and give years of enjoyment.
  • Page 2 Parts List Screen (1) Screen (1) Small screen Decor Screen connector Short bar Long bar Tilted top bar Tilted top bar connector (1) Tilted top bar connector (2) Long top bar Short top bar Small top bar Big top connector Small top connector Pothook Short mosquito pipe...
  • Page 3 Hardware Pack 1 M6X20 (Bolt) 16 PCS TBZ00306020HQ M6 (Washer) 24 PCS TBZ10406HQ M6X35 (Bolt) 8 PCS TBZ00106035HQ M6 (wrench) 1 PC Fig.1: Attach the decor (C1) and the small screen (C). Fig.1-1: Connect the screen (C) and screen (A & B) by using Bolt (AA) and washer (BB). Fig.2 &...
  • Page 4 Hardware Pack 2 M6 (flat washer) 48 PCS TBZ10406HQ M6X20 (Bolt) 16 PCS TBZ00106020HQ M6X15 (Bolt) 32 PCS TBZ00306015HQ Fig.4: Insert Screen connector (D) into long and short bar (E1, E) separately, tighten them with Bolt (DD) and flat washer (BB). Fig.5: Connect the screen A (B) and Screen connector (D) by using Bolt (II) and flat washer (BB) to form a basic frame.
  • Page 5 Fig.6: Insert the tilted top bar connector F1 (F2) into the top screen corner. Fig.7 & Fig.7-1: Attach the pothook (L) to Big top connector (J), insert four tilted top bar (F) into big top connector (J). Then insert the tilted top bar (F) into tilted top bar connector F1 (F2). At last, insert the long side top bar (G), short side top bar (H) into the big top connector (J).
  • Page 6 Hardware Pack 4 Φ6*180MM (Round nail) 16 PCS TBZ10606180HQ Plastic hang ring 44 PCS Fig.11 : Fix small canopy (R) and then spread the big canopy (Q). Then hang the mosquito net (S) to mosquito pipe M (N) by using plastic hang ring (HH). You also can hang the privacy panels (not included) to the pipe M (N).
  • Page 7 IMPORTANT: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
