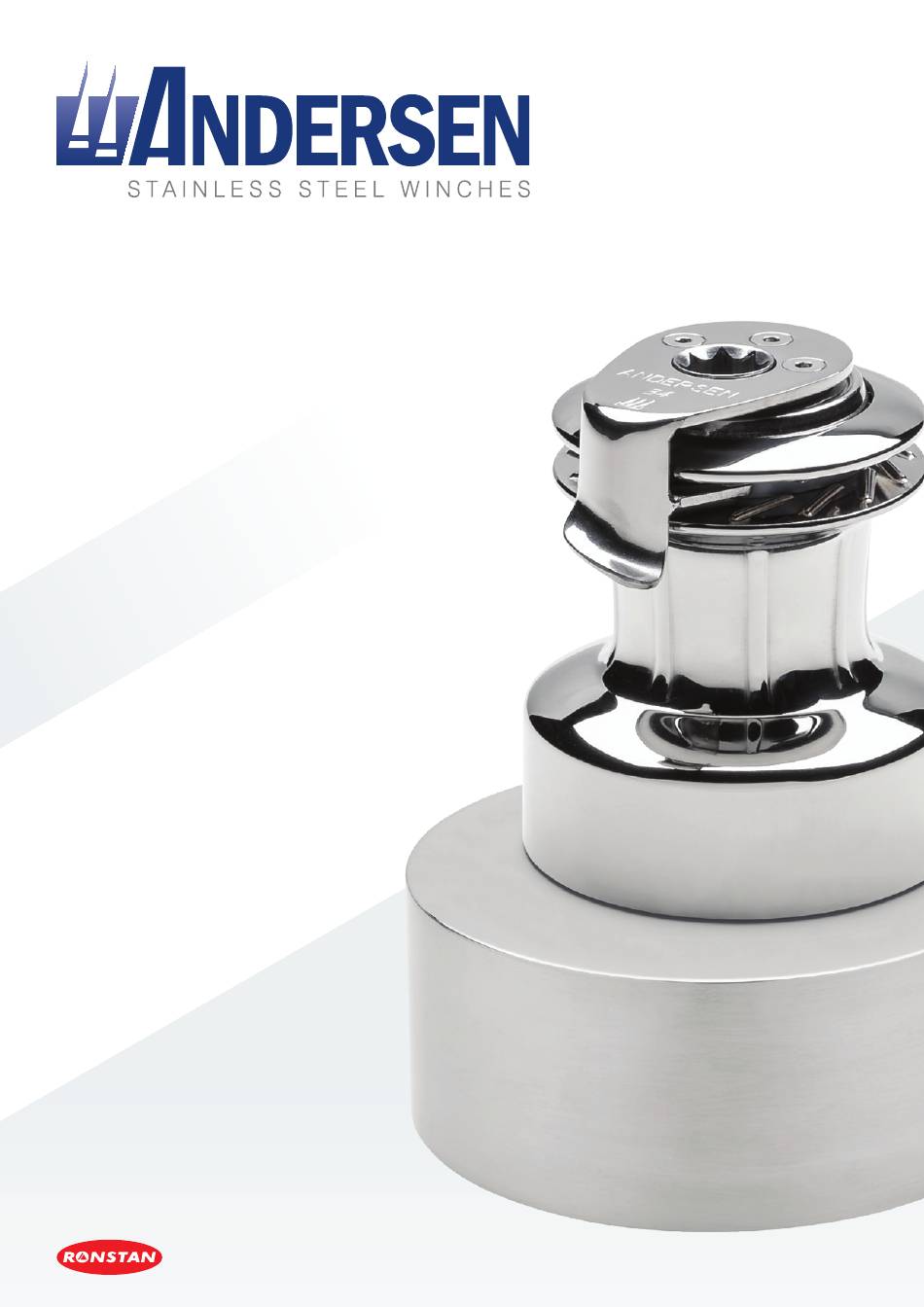

PRODUCT MANUAL
Compact Motor
Above Deck
Electric Winch
28/34/40ST
FOR USE WITH:
Compact Motor™ Electric Winches
RA2028015100
RA2034015100
RA2028015200
RA2034015200
Compact Motor™ Conversion Kits
RA2028215100
RA2034215100
RA2028215200
RA2034215200
Winch Versions:
28ST ( ≥ V.4.0)
34ST ( ≥ V.2.0)
Your Winch Version No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Your Motor Serial No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
™
RA2040015100
RA2040015200
RA2040215100
RA2040215200
40ST ( ≥ V.4.0)
710200 Rev.1
Advertisement
Table of Contents
Related Manuals for Andersen 28ST
Summary of Contents for Andersen 28ST
- Page 1 RA2034215200 RA2040215200 Winch Versions: 28ST ( ≥ V.4.0) 34ST ( ≥ V.2.0) 40ST ( ≥ V.4.0) Your Winch Version No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Your Motor Serial No.
-
Page 2: Table Of Contents
Contents ANDERSEN Stainless Steel Winches ® Your Andersen winch is made with the care and craftsmanship that PAGE come from more than sixty years of experience. Andersen winches are built to last, to retain their exceptional finish and to deliver... -
Page 3: Safety Notices
Do not install or operate this winch before reading and fully understanding the contents of this Safety Notice Sheet and the Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained Help prevent significant damage and/or serious injury by ensuring any person operating a winch has a thorough understanding of its proper operation and is aware of the potential hazards involved. -
Page 4: Exploded View Of Assembly
Winch Versions: 1 3/4" (1’’) 15.00° 50mm 50mm 28ST (≥V.4.0) 34ST (≥V.2.0) 40ST (≥V.4.0) (1 15/16’’) (1 15/16’’) Method A Your Winch Version No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Blue shaded areas of template Drill a Ø19mm (3/4”) hole at the centre of the push button... -
Page 5: Parts List
PART NO. Motor Compact AD, 12V for 28ST, 34ST RD823800 Motor Compact AD, 12V for 40ST RD824000 Motor Compact AD, 24V for 28ST, 34ST, 40ST RD823900 Base Cover, Stainless Steel O-ring 157mm OD x 1.5mm RD877501 O-ring 184.5mm OD x 3mm... - Page 6 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ Required for installation • Hex keys, metric (included) • Cross head screwdrivers • Drill bits Ø6.5mm (9/32’’) and Ø3mm (1/8’’) • Hole saws Ø15mm (5/8”), Ø25mm (1”) and Ø30mm (1 3/16’’) • 6x ISO 4762-A4 M6 (1/4”) mounting bolts;...
-
Page 7: Installation Instructions
The position of the drain port is also indicated on the drilling template. 1.6 The 28ST and 34ST winches have a fixed self-tailing arm; the winch may be rotated incrementally on the motor/ base during final assembly to achieve the optimum arm orientation. - Page 8 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 2 Prepare the mounting surface 2.1 After determining the mounting location and orientation, clean the mounting surface and use the drilling template [A3] as a guide. Ensure that the surface is flat and there is adequate space and clearance for operation of the winch.
- Page 9 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 3 Prepare and dry-fit the motor unit 3.1 Slide the stainless steel cover [2] upward to remove it from the RED terminal extension BLACK terminal extension fitted to RED POSITIVE (+) fitted to BLACK NEGATIVE ( –...
- Page 10 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 4 Install motor unit. Having a second person to assist during this step may help to avoid fouling the wiring and drain tube with sealant as they are passed through the deck. 4.1 Apply sealant to the deck to prevent water ingress.
-
Page 11: Important Notes - Electrical Installation
Victron ® is a registered trademark of Victron Energy B.V. Operation The Andersen Compact Motor™ electric winch uses a brushless DC motor. Brushless DC motors draw current from the battery when operating, and can send current back to the battery when spinning down unloaded. Avoid operating the... -
Page 12: Wiring Diagram
PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ Wiring Diagram The positive cable (+RED) must be connected to positive terminal of PUSH BUTTON the motor. [A1] INCORRECT POLARITY WILL CAUSE PERMANENT DAMAGE TO WARNING THE MOTOR AND INVALIDATE THE WARRANTY! CONTROL CABLE [A12]... - Page 13 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ Motor Detail Negative ( Terminal BLACK M8 Thread Positive ( Terminal RED M8 Thread Drain port fitting with drain tube Thermal sensor wires Control cable (connection to push button)
- Page 14 6.3 Consult the table in the Winch Data Sheet for the model and voltage corresponding to your Andersen Compact Motor™ Electric Winch, to determine the minimum wire size for your cables according to the total cable length required for your installation.
- Page 15 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 8 Connect power and push button cables 8.1 NEGATIVE (–) BLACK connection from motor to battery: Connect the NEGATIVE (–) BLACK terminal of the motor to the NEGATIVE (–) BLACK terminal of the battery using the (-) BLACK power cable prepared in Step 6.
- Page 16 PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 9 Check installation 9.1 The PCB at the rear of the circuit breaker is fitted with 3 LED indicators, located along its edge as indicated in the photo. Pre-wired at factory Yellow LED The yellow LED may signal a status code by emitting a sequence of flashes once every 20 seconds.
-
Page 17: Winch Installation
PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ STEP 10 Winch Installation 10.1 Use a hex key to remove the screws at the top of the winch, then lift off the self-tailing arm and the drum to expose the centre stem and gears. Position the centre stem of the winch on the motor unit with mounting holes aligned, Secure it to the motor unit using the M6 countersunk head screws [A5] provided, then fit the drum to complete the assembly. -
Page 18: Troubleshooting
PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ Troubleshooting Compact Motor™ electric winches have built-in monitoring and protection features to enhance safety and avoid permanent damage to the electronic and mechanical components of the motor and winch. Automatic cut-out and reset The integrated controller will cause the motor to stop without tripping the circuit breaker if one of the following conditions is detected: •... - Page 19 ON, or flashes every PCB or its terminals may be Contact your Andersen dealer, replace PCB if 20 seconds in normal use. damaged. necessary. Circuit breaker trips, switches to...
-
Page 20: Led Status Codes / Diagnostics
PRODUCT MANUAL 28/34/40ST Above Deck Compact Motor ™ LED Status Codes / Diagnostics In normal operation the green LED illuminates continuously for the first 5 minutes after GREEN switching the circuit breaker to ON, flashes once every 20 seconds thereafter and goes off a few seconds after switching the circuit breaker to OFF. -
Page 21: Service And Maintenance
™ Service and Maintenance Proper care and maintenance of your Andersen products will ensure many years of reliable service. For your Compact Motor™ unit it is essential that the following service procedures are carried out at the recommended intervals. Safety First! Always disconnect power before performing any service or maintenance work on an electric winch. - Page 22 Contact Andersen Stainless Steel Winches are manufactured by Ronstan Denmark ApS. ® Jægervænget 36, 7100 Vejle Denmark info@andersenwinches.com WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.andersenwinches.com Andersen Stainless Steel Winches is a registered trademark of Ronstan Denmark ApS ®...
