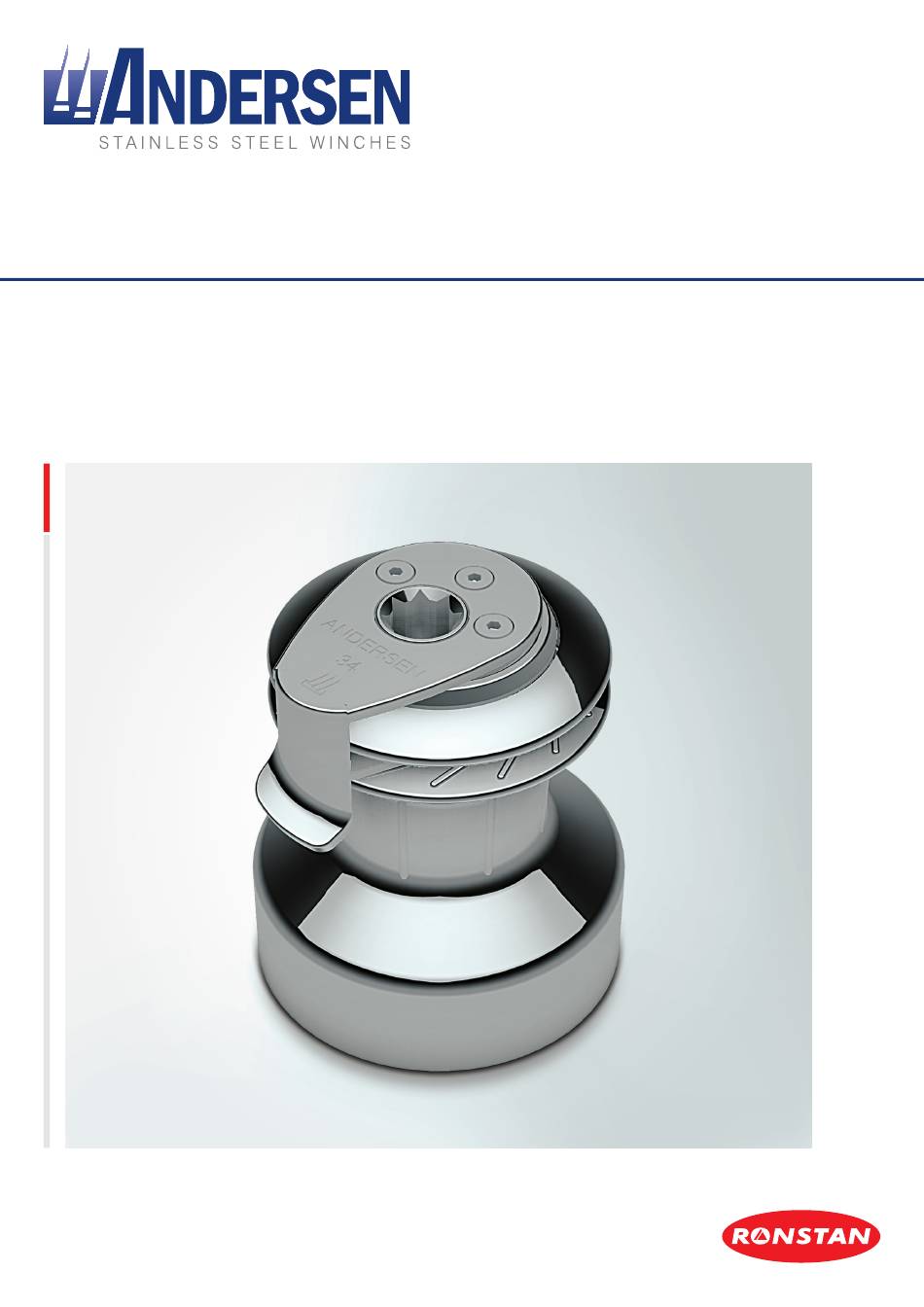

- Page 1 PRODUCT MANUAL 34ST (V.2.0) 34ST FS (V.2.0.F) RON-WPM-710229-34ST/34STFS-Rev.5...
- Page 2 34ST (V.2.0) 34ST FS (V.2.0.F) EXPLODED VIEW ITEM. 3 ITEM. 3 MODEL ST - PART No. 537551 MODEL ST FS - PART No. 537511 ITEM. 11 ITEM. 5 - PART No. 729021 MODEL STE - PART No. 534210...
- Page 3 34ST (V.2.0) 34ST FS (V.2.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543311 Self-tailing arm 596751 Self-tailing top complete 537551 Model ST Self-tailing top complete 537511 Model ST FS Circlip 726400U Top ring 782100 Screw 781811 Disc 726310...
- Page 4 • Ring spanner to match nuts 1. Remove screws (1). 2. Remove self-tailing arm (2) and drum (4). 3. Mark location of boltholes using the template. IMPORTANT: On the 34ST the self-tailing arm (2) is fixed in one position. Ensure correct positioning of the self-tailing arm, before marking the bolt holes. Drill bolt holes Ø6.5mm (1/4”). Be sure that no dust comes into contact with the winch while drilling. 5. Apply a light coat of bedding compound, ensuring that each bolthole is bedded.
- Page 5 11. Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
- Page 6 Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year. We strongly recommend always to use ANDERSEN WINCH GREASE, when lubricating your winch. ANDERSEN WINCH GREASE is a high quality silicone/Teflon grease product. Most other types of grease, including “marine grease” are not suitable for lubrication of winches.
- Page 7 Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained...
- Page 8 PRODUCT MANUAL 34ST (V.2.0) 34ST FS (V.2.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
