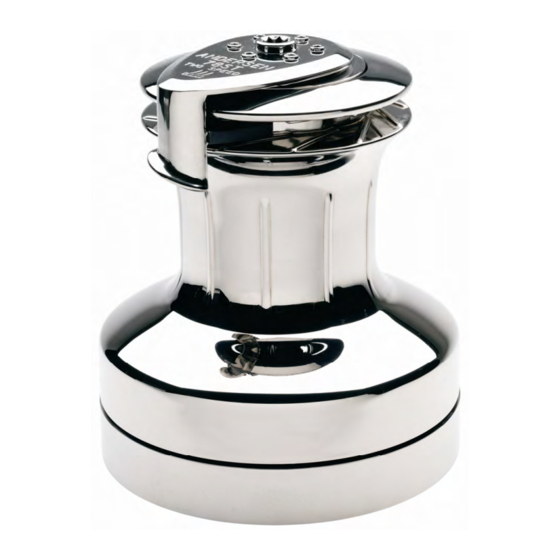

Manual 78ST/FS

Version 1.1

Table of Contents

Need help?

Do you have a question about the 78ST and is the answer not in the manual?

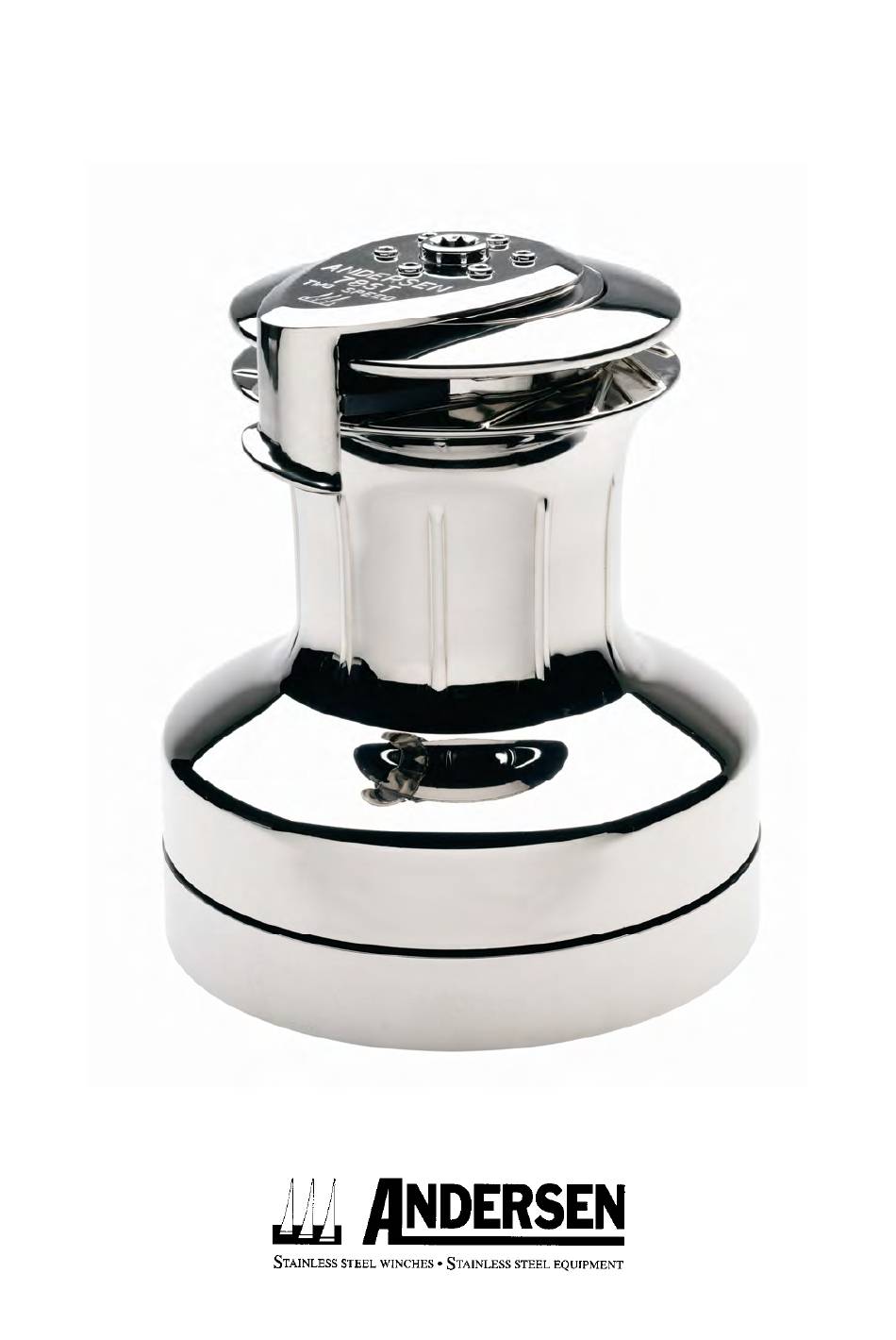

Page 1 Manual 78ST/FS Version 1.1...
Page 2: General Information
Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch.
Page 3: Installation
INSTALLATION Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: Allen key (10 mm.). Allen key (6 mm.). Drill Ø12,5mm. 6 pcs.
Page 4 Assemble in reverse order. During assemble, lightly grease all gear teeth, drive shaft, roller bearing, shafts, balls, pawls, springs and composite bushings. Use a small, soft brush. Pawls may be lubricated with either a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
Page 5 DRAWING...
Page 6: Parts List
PARTS LIST 78 ST Ver. 1.1 POS. QTY. DESCRIPTION ART. NO. Lower base 751100 Gear Wheel 746000 Screw DIN912-A4-M8x25 Pawl 533400 Spring 533500 Ball, stainless steel 724900 Ratchet gear, Big 537700 Ball ring 537200 Bearing RD100151 Bushing 983400 Shaft for Ratchet gear, big 537301 Circlip 592400I...
Page 7 POS. QTY. DESCRIPTION ART. NO. Top disc 538300 DIN7-A1-5H8x5 DIN7-A1-5H8x10 592400 Pawl 712500 Ring RD100152 Bushing 983500 Ring RD100169...
