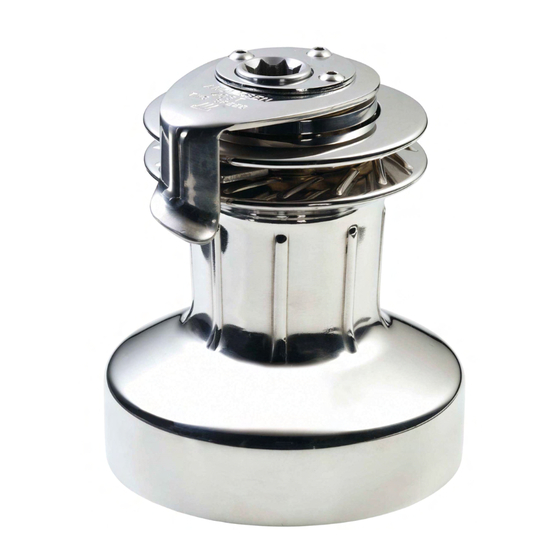

Andersen 40ST Manual

Hide thumbs Also See for 40ST:

MANUAL

40ST – 40 ST FS

Version 3.0

Version 1.0

Table of Contents

Need help?

Do you have a question about the 40ST and is the answer not in the manual?

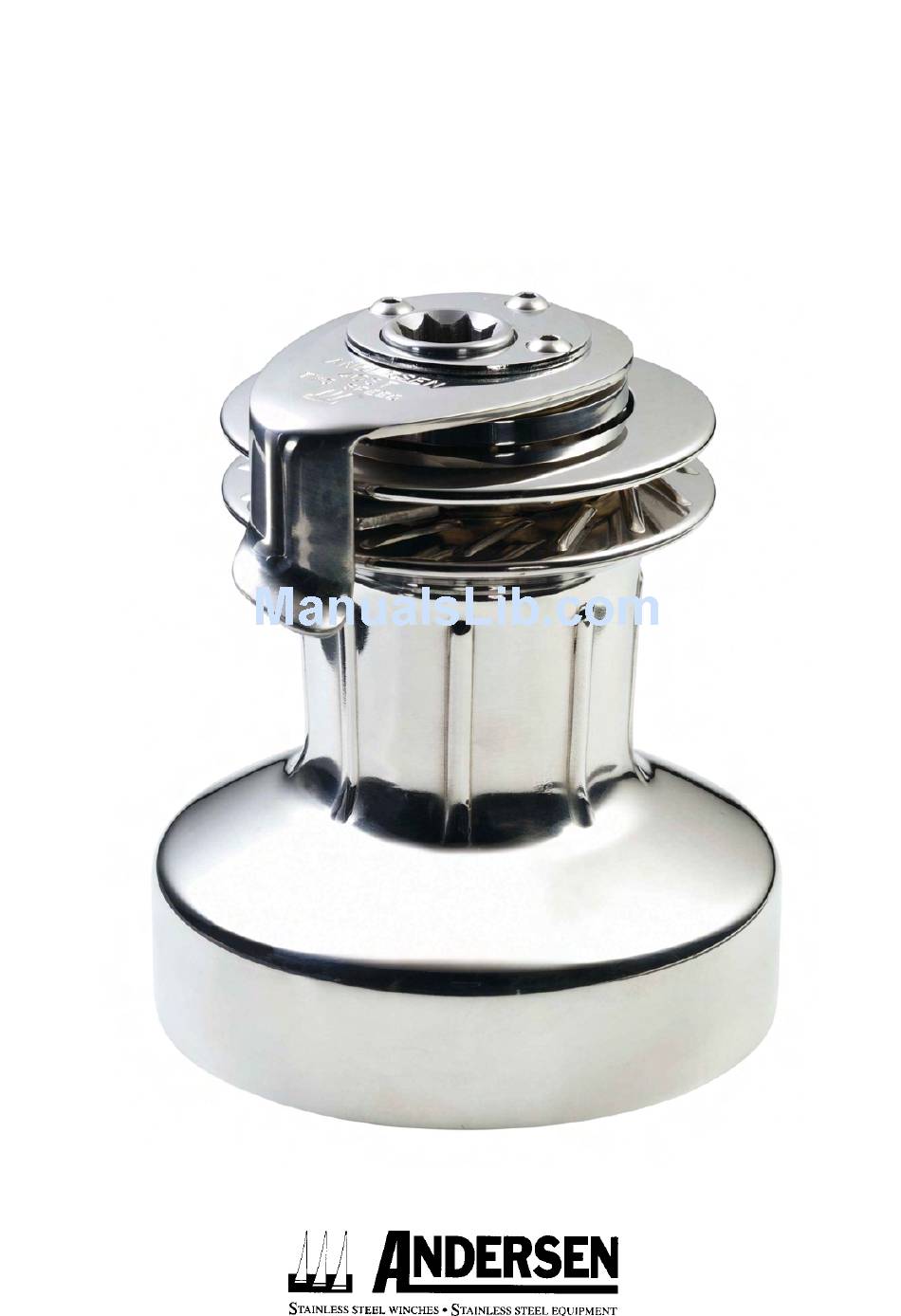

Page 1 MANUAL 40ST – 40 ST FS Version 3.0 Version 1.0...
Page 2 Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch.
Page 3 INSTALLATION Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: Screwdriver (large). Ø6,5 mm. (1/4”) drill. 5 pcs. M6 (1/4”) countersunk head screws. Ring spanner to match nuts.
Page 4 Assemble in reverse order. During assemble, lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Use a small, soft brush. Pawls may be lubricated with either a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
Page 5 PARTS LIST POS. QTY. DESCRIPTION ART. NO. Screw ISO 7380-A4-M6x12 Top cap 535101 Selftailing arm 535220 Selftailing Top Model ST - 537450 / ST FS - 537410 Circlip 590300U Top Ring 782220 Disc Model ST only - 535510 Drum cpl. 535411 Drive shaft cpl.
Page 6 EXPLODED VIEW POS. 4 - 537450 POS.4 - 537410...
