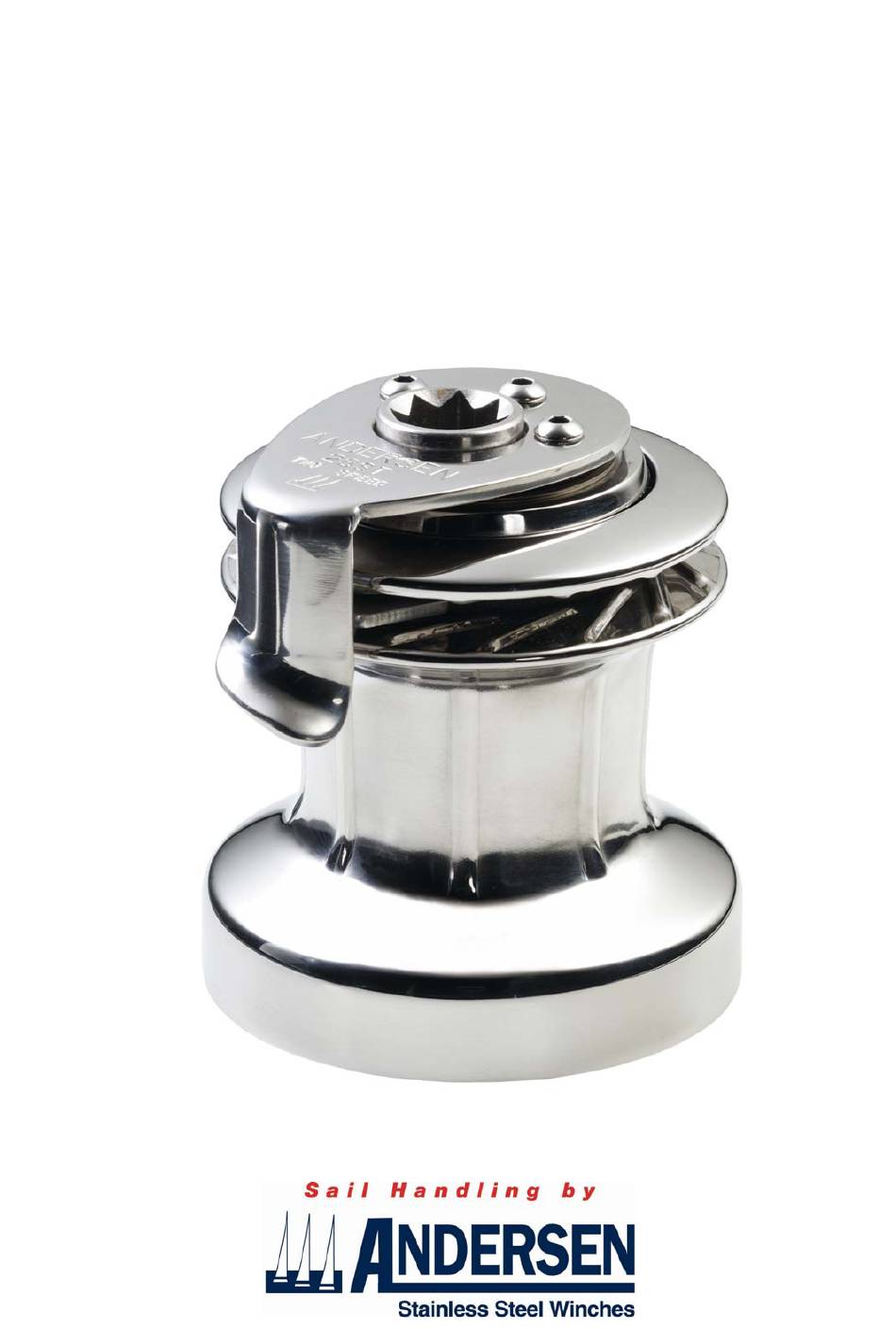

- Page 1 MANUAL 12ST – 12ST FS Version 3.0 Version 1.0...
-
Page 2: General Information
CONGRATULATIONS You have purchased an ANDERSEN high quality winch. This product is a result of many years of development and experience in producing winches for sailboats. This winch gives you a high degree of functionality and many years of safe and easy sail handling. - Page 3 Be also aware that self-tailing arm is positioned correctly. We recommend having the self-tailing arm positioned within the shaded area. On 12ST and 28ST the position of the self-tailing arm is fixed, making it very important to establish the proper location of the holes prior to drilling these in the deck.
-
Page 4: Installation
INSTALLATION 12ST ver. 3.0 – 12ST FS ver. 1.0 Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: Allen key (4 mm.). - Page 5 Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
- Page 6 NOTES:_____________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
-
Page 7: Parts List
PARTS LIST 12ST ver. 3.0 – 12ST FS ver. 1.0 POS. QTY. DESCRIPTION ART. NO. Screws ISO 7380-A4-M6×12 Self-tailing arm 596711 Self-tailing top Model ST 537551 Model ST FS 537511 Circlip 726400U Top ring 782100 Screw 781811 Disc Model ST – (only for 537551) 726310 Drum comp. -
Page 8: Exploded View
EXPLODED VIEW 12ST ver. 3.0 – 12ST FS ver. 1.0 POS. 3 - 537551 POS. 3 - 537511... -
Page 9: Limited Warranty
ANDERSEN issue a three-year warranty on all their products covering manufacturing and material defects on condition that the products are used in normal fashion. The warranty shall apply for three years from the moment ANDERSEN sell the product concerned (to the first buyer).
