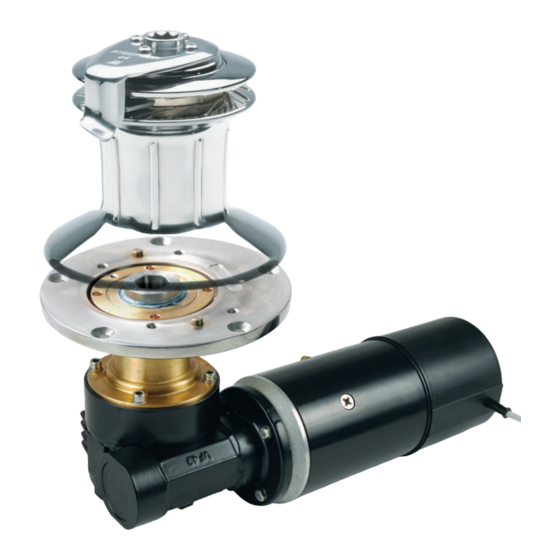

PRODUCT MANUAL
E1 Single Speed
Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 46,50
FOR USE WITH
• RA2046001300
• RA2046001400
• RA2046011300
• RA2046011400
• RA2046211300
• RA2046211400
Serial No.: PS______________________
Winch versions:
46 (V.4.0)
50 (V.1.0)
RON-WPM-710472-E1-46/50ST-Rev.3
• RA2050001300
• RA2050001400
• RA2050011300
• RA2050011400
• RA2050211300
• RA2050211400
Advertisement
Table of Contents
Related Manuals for Andersen RA2046001300
Summary of Contents for Andersen RA2046001300
- Page 1 PRODUCT MANUAL E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 FOR USE WITH • RA2046001300 • RA2050001300 • RA2046001400 • RA2050001400 • RA2046011300 • RA2050011300 • RA2046011400 • RA2050011400 • RA2046211300 • RA2050211300 • RA2046211400 • RA2050211400 Serial No.: PS______________________ Winch versions: 46 (V.4.0) 50 (V.1.0)
-
Page 2: Table Of Contents
To Suit Self-Tailing Winch Sizes 46,50 CONGRATULATIONS You have purchased a high quality ANDERSEN Stainless Steel Winch It is a result of more than 60 years of experience and expertise in producing winches for sailboats. This winch offers a high level of performance and functionality, and will provide many years of safe and easy sail handling. -
Page 3: Motor Unit Included Components
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 Please read this product manual & the relevant winch manual fully before installation or operation. FEATURES • Highest quality winch featuring a stainless • High quality European engineered and steel drum for ultimate durability and style, manufactured motor, with matched gearbox vertical Power Ribs ™... -
Page 4: Assembly Exploded View
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 EXPLODED VIEW 46/50 ST E1 SINGLE SPEED 12V/24V * When supplied as an E1 Electrical Motorised Winch, this gear wheel will already be fitted inside the winch. The gear wheel has a hexagonal section that protrudes from the winch base to engage in the motor unit drive shaft. -
Page 5: Parts List
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 PARTS LIST 46/50 ST E1 SINGLE SPEED 12V/24V ITEM NO. QTY DESCRIPTION PART. NO. Motor E1 1000W 12V, incl. controller 777400 Motor E1 1000W 24V, incl. controller 777410 Gear box VF 49, i=28 P71 B14 776210... -
Page 6: Installation Instructions
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 INSTALLATION INSTRUCTIONS STEP 1 - Positioning the winch and motor unit • Position the winch drilling template [A3] in the required position on the deck, ensuring that there is adequate flat space for the deck plate/ winch base. - Page 7 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 INSTALLATION INSTRUCTIONS STEP 3 *Note: It is extremely important that the motor is aligned correctly with the winch. Non-aligned motors will be noisy and gear wear will be accelerated. *Note: It is important that two or more people are involved with Step 3.
- Page 8 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 INSTALLATION INSTRUCTIONS STEP 4 *Note: The push button [A1] requires 25mm depth clearance the behind mounting surface. The push button is supplied with 500 mm (19 5/8”) of cable and the motor unit with 1400 mm (55 3/16’’) of control cable.
-
Page 9: Wire, Circuit Breaker & Battery Capacity Requirements
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 INSTALLATION INSTRUCTIONS STEP 5 • Connect wires from push button to wires from motor unit as per electrical connection diagram p10 Detail A. STEP 6 • Measure the total wire run distance from the battery to the motor unit and back to the battery. -
Page 10: Electrical Connection Diagram
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 ELECTRICAL CONNECTION DIAGRAM 46/50 ST E1 SINGLE SPEED 12V/24V Positive (+) motor terminal must be connected to Positive (+) battery terminal. PUSH BUTTON Negative (-) motor terminal must be connected to Negative (-) battery terminal. -
Page 11: Troubleshooting
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 TROUBLESHOOTING E1 IN-BUILT SYSTEM PROTECTION The E1 Electric Motor Unit has a very high level of in-built system protection, via monitoring of various operating parameters, its integrated controller and other protection/control componentry. This functionality includes: • Reverse polarity protection • Mechanical overload protection... - Page 12 • 7 Flashes Max relay cycles reached. The motor relay has been activated 20,000 times and will need to be replaced to ensure continued safe operation. Contact Ronstan or your local Andersen Winches distributor for advice.
-
Page 13: Service & Maintenance
To access the Sealing Ring [7], it is necessary to remove the winch from the winch base. Refer to the Winch Product manual for instructions. The Sealing Ring should be lubricated with a grease such as Klüber ISOFLEX TOPAS NB 52, or Andersen Winch Grease. Drive shaft Sealing Ring... -
Page 14: Installation Dimensions - Sizes 46 & 50
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 INSTALLATION DIMENSIONS SIZE 46/50 NOT TO SCALE Ø89mm (3 1/2”) Ø89mm (3 1/2”) Ø89mm (3 1/2”) Ø181mm (7 1/8”) Ø181mm (7 1/8”) Ø181mm (7 1/8”) 65mm 300mm 65mm... -
Page 15: Drilling Template - Sizes 46 & 50
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50 DRILLING TEMPLATE SIZE 46/50 NOT TO SCALE PART.NO. RD 100212 DRILLING TEMPLATE ANDERSEN 46/50 ST E 1 Ø155mm (6 3/32”) 18.7mm... -
Page 16: Safety Notices
Safety Notice Sheet and the Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained... - Page 17 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46,50...
-
Page 18: Worldwide Distribution And Service
PRODUCT MANUAL E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 46, 50 WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.andersenwinches.com...
