ANDERSEN Winches

Manual for Conversion Kits

28STE Compact & 2+1 SE ............................................................. 2

40STE Compact & 2+1 SE ............................................................. 5

46STE Compact Above Deck up to version 3.2 ........................... 7

46ST version 3.2 to 4.0 winch with drive unit .............................. 8

52ST/ST FS Eletric or Hydraulic Below Deck Convertion Kit .... 9

52STE Compact Above Deck Version ........................................ 10

58/62STE Compact Above Deck Version ................................... 13

68/72STE Compact ....................................................................... 15

Page 1 of 17

Need help?

Do you have a question about the 28STE Compact and is the answer not in the manual?

Questions and answers

Summary of Contents for Andersen 28STE Compact

Page 1: Table Of Contents
ANDERSEN Winches Manual for Conversion Kits 28STE Compact & 2+1 SE ............. 2 40STE Compact & 2+1 SE ............. 5 46STE Compact Above Deck up to version 3.2 ......7 46ST version 3.2 to 4.0 winch with drive unit ......8 52ST/ST FS Eletric or Hydraulic Below Deck Convertion Kit ..

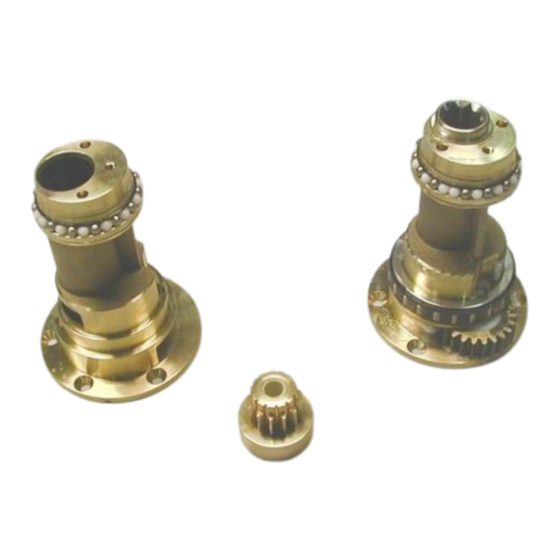

Page 2: 28Ste Compact & 2+1 Se
While reassembling apply a thin layer of Andersen Winch Grease to all moving part. Tools: Flathead screwdriver, winch-handle and ANDERSEN Winch Grease. (Newer winches require a 4mm Alan key) 1. Loosen the screw on top of the winch and remove the drum.
Page 3 4. Remove the circlip holding the bottom cap. The bottom cap will then fall into the winch and you can slide the cap out through the side of the winch. The old bottom ratchet gear can now fall out the bottom of the winch. 5.
Page 4 7. Slide the top ratchet gear into place then with a twisting motion insert the drive shaft through the base until it falls to the bottom. 8. Your winch is now ready to be installed with your new compact/ 2+1 SE motor. Page 4 of 17...
Page 5: 40Ste Compact & 2+1 Se
40STE Compact & 2+1 SE For 2003 winches on Tools: Flathead screwdriver, hammer, punch and grease Drum Winch base Roller bearing Side cogwheel 1. Loosen the 3 screws on top of the winch and remove the drum. 2. Remove the roller bearing by sliding it up over the winch base. 3.
Page 6 6. After applying grease, insert the newly supplied free running cogwheel onto the main shaft using a twisting motion so that the pawls fall into place. Be careful! The ratchet cogwheel can fall out before step 8 is complete. Step 6 Free running cogwheel 7.
Page 7: 46Ste Compact Above Deck Up To Version 3.2
46STE Compact Above Deck up to version 3.2 Tools required for this conversion: Allen keys 4mm and 5mm Small screwdriver Winch-handle 1. Remove the winch from its mounted position. Place the winch drum and self-tailing arm to one side. 2. Remove the 6 or 9 screws holding the upper base to the lower base.
Page 8: 46St Version 3.2 To 4.0 Winch With Drive Unit
46ST version 3.2 to 4.0 winch with drive unit IMPORTANT INFORMATION when mounting a new winch with a drive unit. With the 46ST version 4.0, we have integrated the deck plate features in the winch base plate. With the new deck plate there is a distance ring, which gives the correct height from the unit to the winch, see the installation drawing below.
Page 9: 52St/St Fs Eletric Or Hydraulic Below Deck Convertion Kit
HOW TO INSTALL WINCH 52ST/ST FS WITH AN ELECTRIC OR HYDRAULIC BELOW DECK CONVERSION KIT 52ST/ST FS version 2.5 52ST/ST FS version 3.0 (or earlier version) (or later version) 52ST/ST FS from ver. 3.0, has integrated the deck plate features in the winch base. The lower Bronze winch base is used as deck plate.
Page 10: 52Ste Compact Above Deck Version
52STE/ STE FS Compact Above Deck Conversion manual for Compact motor Above Deck. For above deck compact motors a new lower base is required for winches manufactured before September 2002. This manual shows how to replace your old lower base with a new, so that older winches will function with the new above deck compact motor.
Page 11 6. Remove gear wheel (19) by removing screw (17) and then sliding shaft (18) upwards. 7. Remove the complete freewheeling ratchet gear (10-16) by sliding the shaft (9) upwards and pulling the complete freewheeling ratchet gear out to the side. (Figure 4) 8.
Page 12 Drum Selftailing Upper base Gears Bearing Drive Shaft Gear axles Lower base Base Cover Figure 6: Parts in a 52ST ANDERSEN Winch Page 12 of 17...
Page 13: 58/62Ste Compact Above Deck Version
58/62STE – STE FS Compact Above Deck Conversion manual for Compact Above Deck motor. This manual shows how to replace your old lower base with a new, so that older winches will function with the new above deck compact motor. The numbers below in brackets ( ) refer to the position numbers on the parts list found in the back of the 58ST ver.
Page 14 10. Your winch is ready to be mounted on your new above deck compact motor. Drum Selftailing Upper base Gears Bearing Drive Shaft Gear axles Lower base Base Cover Figure 12: Principle photo of parts in a 58-62ST ANDERSEN Winch Page 14 of 17...
Page 15: 68/72Ste Compact
68/72STE Compact To use your new 68ST compact electric unit with your existing 68ST winch, the existing winch base needs to be swapped with the base supplied with your new unit. Follow the steps below to complete the process. 1. Remove your winch from the boat and find a stable place to work on the winch. Winch ready for service.
Page 16 Old screws New screws. 5. Reassemble using the new winch base and the altered large ratchet gear Old Base New base 6. Your winch can now be connected to your new motor unit. Page 16 of 17...
Page 17 Tel.: 021 511 7292 Fax: 021 510 1487 E-mail: manex@manex.co.za For current distributor list please see www.andersenwinches.com Andersen Winches, Jaegervaenget 36, DK-7100 Vejle, Denmark – tel. +45 76427777 – fax +45 76427788 e-mail: info@andersenwinches.com web: www.andersenwinches.com J:\2_Produktinfo\Manual\Versioner-Gældende\710225_CONVERSION-MANUAL.doc Page 17 of 17...
