Manual
46ST – 46ST FS
Version 4.1
Version 4.1.F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 46ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Andersen 46ST

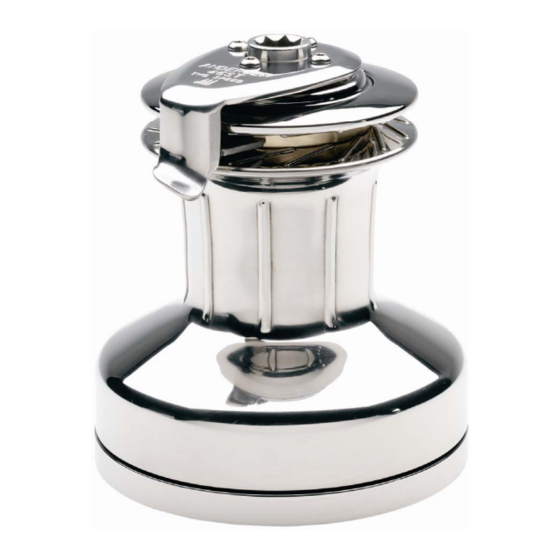

Summary of Contents for Andersen 46ST

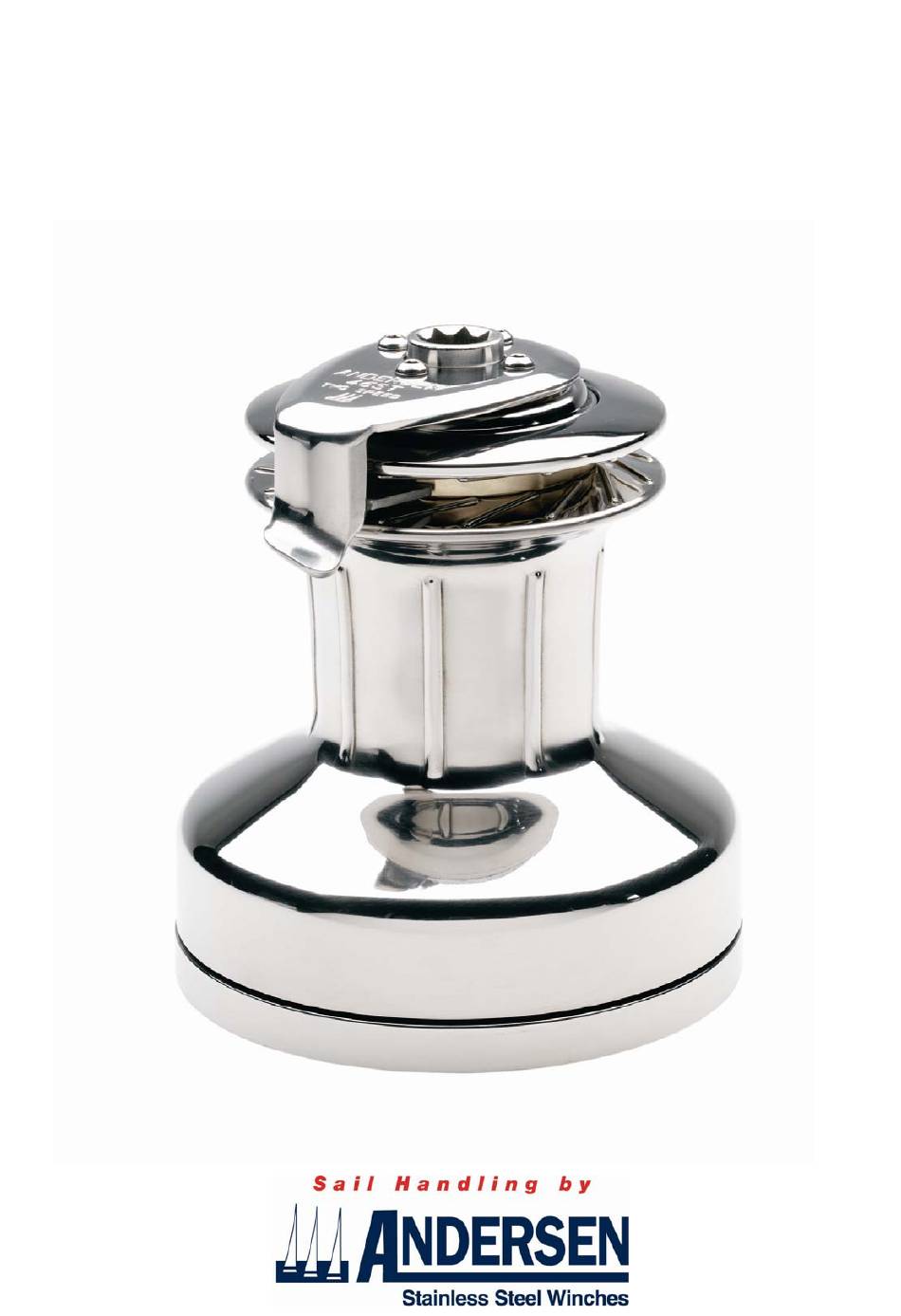

  • Page 1 Manual 46ST – 46ST FS Version 4.1 Version 4.1.F...
  • Page 2 CONGRATULATIONS You have purchased an ANDERSEN high quality winch. This product is a result of many years of development and experience in producing winches for sailboats. This winch gives you a high degree of functionality and many years of safe and easy sail handling.

  • Page 3: General Information

    Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch.

  • Page 4: Installation

    INSTALLATION 46ST ver. 4.1 – 46ST FS ver. 4.1.F Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: Allen key (4 mm).
  • Page 5 Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
  • Page 6 NOTES:_____________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...

  • Page 7: Parts List

    PARTS LIST 46ST ver. 4.1 – 46ST FS ver. 4.1.F POS. QTY. DESCRIPTION ART. NO. Screw ISO7380-A4-M6×12 Self-tailing arm 734315 Self-tailing top complete Model ST 544521 Self-tailing top complete Model ST FS 544530 Circlip 590300U Top ring 595010 Screw 585100...

  • Page 8: Exploded View

    EXPLODED VIEW 46ST ver. 4.1 – 46ST FS ver. 4.1.F POS. 3 POS. 3 544521 544530 MODEL ST MODEL ST FS POS. 13 POS. 12 13.1 12.1 13.2 12.2 13.3 13.4 12.4 12.3 13.5 12.5 13.6 12.6 13.1 12.1 13.7 12.7...

  • Page 9: Limited Warranty

    ANDERSEN issue a three-year warranty on all their products covering manufacturing and material defects on condition that the products are used in normal fashion. The warranty shall apply for three years from the moment ANDERSEN sell the product concerned (to the first buyer).
