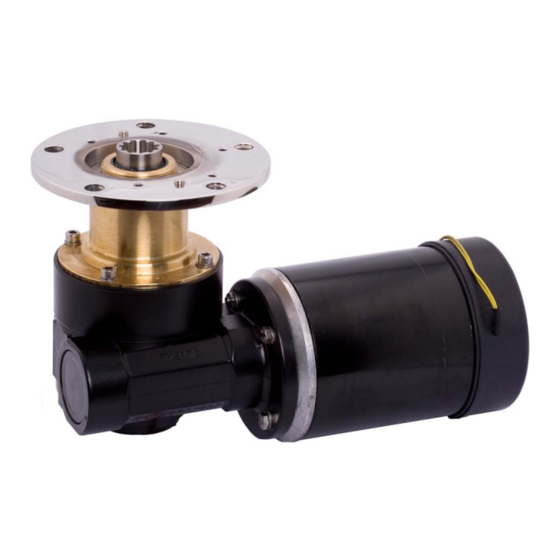

- Page 1 Manual 28 + 40STE SE 2+1 SPEED 12V & 24V GENEREL INFORMATION MOUNTING INSTRUCTION EXPLODED VIEW PARTS LIST CONNECTING DIAGRAM WIRE DIMENSION AND FUSE SIZE WORLD WIDE DISTRIBUTION LIST SERIAL NO: PS_____________ www.Busse-Yachtshop.de - info@busse-yachtshop.de...
-
Page 2: General Information
CONGRATULATIONS You have purchased an ANDERSEN high quality winch. This product is a result of many years of development and experience in producing winches for sailboats. This winch gives you a high degree of functionality and many years of safe and easy sail handling. -
Page 3: Mounting Instruction
MOUNTING INSTRUCTION 28 + 40 STE SE 2+1 SPEED FIG.1 FIG.3 FIG.2 Ø24 FIG.4 www.Busse-Yachtshop.de - info@busse-yachtshop.de... - Page 4 Important Installation Information! It is extremely important that your motor is aligned with your winch. Non-aligned motors will be noisy and gear wear will be accelerated. To insure that your motor is aligned properly the motor flange must be flush with the deck plate and the eight-sided nut must fit snugly into the octagon in the deck plate.
-
Page 5: Exploded View
EXPLODED VIEW 28 + 40 STE SE 2+1 SPEED 2.11 2.10 2.1.2 2.1.1 www.Busse-Yachtshop.de - info@busse-yachtshop.de... -
Page 6: Parts List
PARTS LIST 28 + 40 STE SE 2+1 SPEED POS. QTY. DESCRIPTION ART. NO. Gear complete 28STE TYPE2 777000 Gear complete 40STE TYPE2 777020 Motor CIMA 1000W 12V 28+40+46STE 777300 Motor CIMA 1000W 24V 28+40+46STE 777310 DIN6885-A-5X5X15 Gear Unit 28ST SE 776120 Gear Unit 40ST SE 776130... - Page 7 CONNECTING DIAGRAM 12V + 24V 28 + 40 STE SE 2+1 SPEED FUSE BATTERI IMPORTANT: Do not use connection 1D1 REMARK: Fuse must be of a slow blow type www.Busse-Yachtshop.de - info@busse-yachtshop.de...
- Page 8 CAP. CAP. 0-3 m / 0-10 ft 35 mm² 125 A 240 Ah 25mm² 76 A 120Ah 28 STE SE 3-8 m / 10-27 ft 50 mm² 160 A 240 Ah 25mm² 100 A 120Ah 0-3 m / 0-10 ft 35 mm²...
