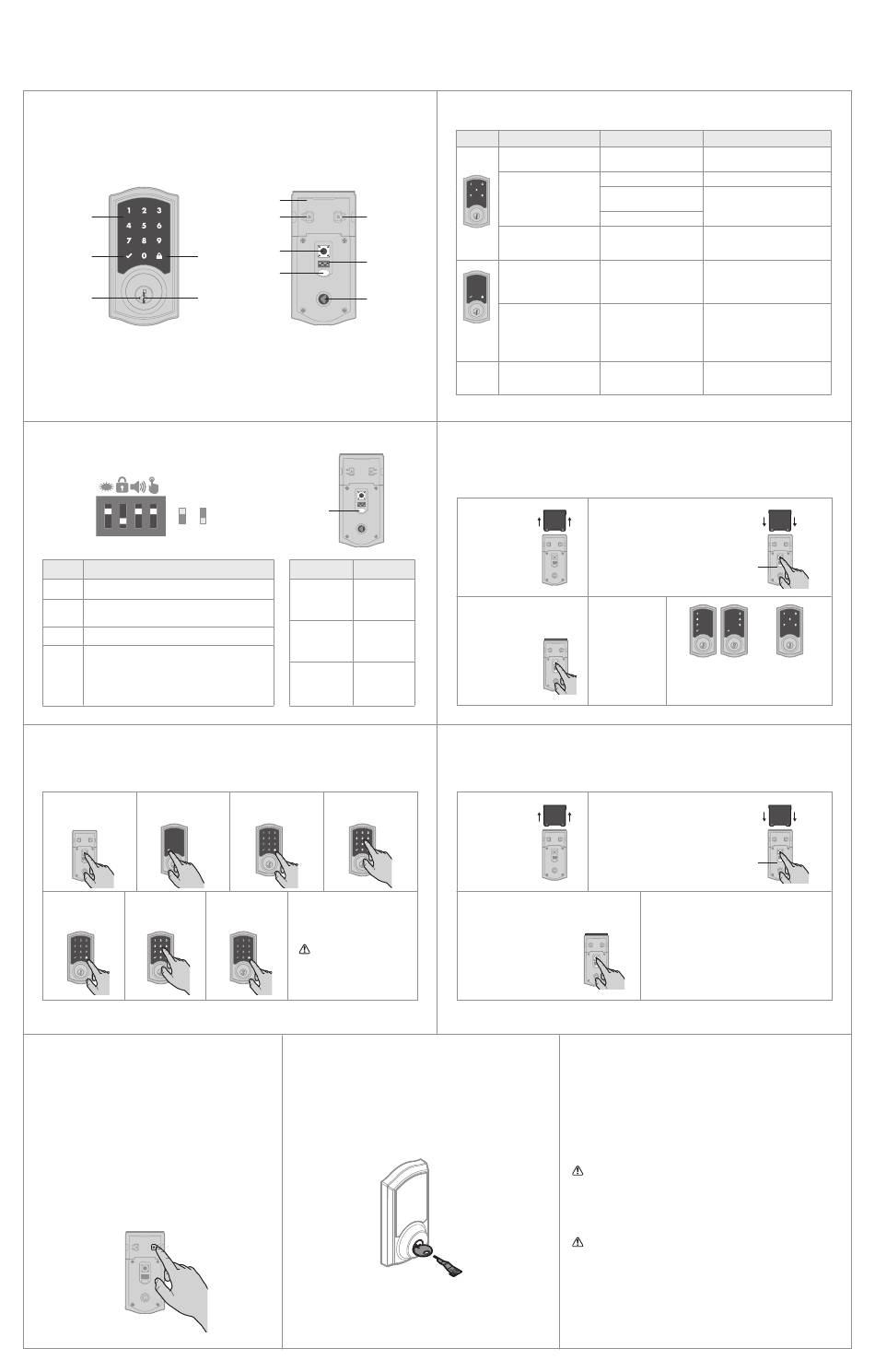

SmartCode at a Glance
Exterior
Touchscreen
Checkmark Lock
symbol symbol
Keyway
SmartKey
tool hole
Switches and Status LED Colors
Switches
On Off
1 2 3 4
Switch Function
1 Door lock status LED blinks every 6 seconds
Lock automatically re-locks door 30 seconds after
2
unlocking. Disabled if no codes are programmed.
3 Audio
SecureScreen feature displays random digits to be
pressed before entering user code. This added-
4 security feature ensures that there are fingerprints
on all digits so that codes cannot be identified by
examining the touchscreen for fingerprints.
Deleting a single user code
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the online Programming and Troubleshooting Guide.
1 Keep door open. 2 Press Checkmark
Press Program symbol once.
button once.
5 Press Lock 6 Re-enter user
symbol once. code.
If the screen is not pressed for 20 seconds, the system will time out, and you will need to restart the procedure.
Network Information
ZigBee System Notes
ZigBee is a "Wireless mesh network," and results may vary
based on building construction and communication path,
with 35+ feet being typical installed distance in a standard
home environment and 250 feet+ when the lock has a
clear line of sight with the smart home controller. It may be
necessary to install additional ZigBee devices to enhance the
communication path between the lock and controller for a
more robust ZigBee network.
Removing the lock from the network
Press button "B" on the lock interior nine times.
Interior (cover removed)
Back
panel
Button "A" Button "B"
Program
button
Switches
Status
LED
Turnpiece
shaft
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
Status
LED
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
3 Press Lock 4 Enter user code
symbol once. to be deleted.
7 Press Lock
If unsuccessful
symbol once.
Make sure to enter the same
valid code in steps 4 and 6.
Test code
While the door is open, test the
user code to make sure it no
longer unlocks the door.
SmartKey Re-Keying
Re-key the lock to work with your existing key. See the supplied
SmartKey Re-key instructions for more information.
Note: If Auto-Lock is enabled (see "Switches and Status LED
Colors"), remove the battery pack before re-keying your lock.
Reference Guide
System Alerts
Display Alert
"X" pattern flashes one time
with one beep*.
"X" pattern flashes three
times with three beeps*.
"X" pattern flashes 15 times
with 15 beeps*
Checkmark and
lock symbols flash
simultaneously five times
with long continuous beep*.
Checkmark and lock
symbols alternate flashing
five times with long
continuous beep*.
N/A Lock beeps continuously.
Manual Door Handing
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a different door.
1 Remove
battery pack.
3 Press the Program
button once more.
Factory Reset
A factory reset will delete all codes associated with the lock, and it will
remove it from your smart home system.
1 Remove
battery pack.
3 Press the Program button
once more. The status
LED will flash green and
red several times.
4 / 4
Reason Solution
One incorrect code entered. Re-enter code.
No user code programmed. Program at least one user code.
Programming timeout after
Attempt programming
20 seconds.
procedure again.
Unsuccessful programming.
Three incorrect codes Re-enter code after 60 second
entered within one minute. touchscreen lockout.
Low battery. Replace batteries.
Door jammed while Manually re-lock door. If needed,
attempting to lock. reposition strike.
Remove battery pack, reconnect the
Interior assembly is
interior to the exterior, then replace
disconnected from exterior.
battery pack.
*Beeping sound will only be heard if switch #3 is on.
2 Press and HOLD the Program
button while reinserting the
battery pack.
Release button once battery
pack is installed. The status LED
will flash red and green.
Status
LED
4 The latch bolt
will extend and
retract to learn
the orientation
of the door.
Success
If the touchscreen indicates a failure, see the
online Programming and Troubleshooting Guide
or call Technical Support.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED flashes red.
Status
LED
4 After a few seconds, the lock will
initiate the door handing process, and
the latch bolt will extend and retract
to learn the orientation of the door.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to
local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with
access to the back panel can change the user codes, you
must restrict access to the back panel and routinely check
the user codes to ensure they have not been altered without
your knowledge. The use of a mastercode can help protect
your system's settings.
WARNING: This Manufacturer advises that no lock can
provide complete security by itself. This lock may be
defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute
for caution, awareness of your environment, and
common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to
enhance security and reduce risk, you should consult a
qualified locksmith or other security professional.
© 2018 Spectrum Brands, Inc.
