Kwikset SmartCode 909 Installation And User Manual

62888 / 01

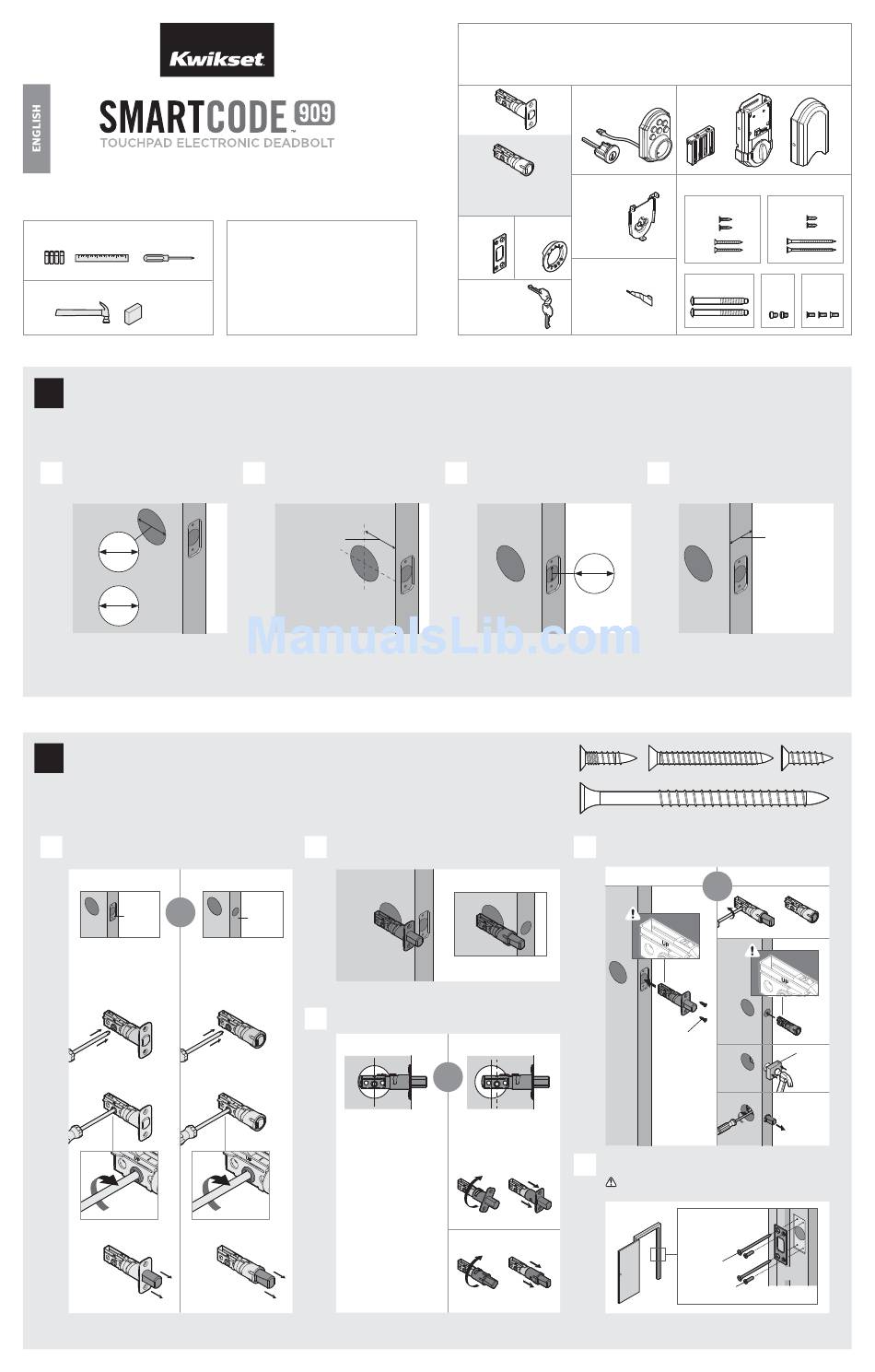

Installation and User Guide
Required tools
4 AA Batteries Ruler Phillips head screwdriver
Additional Tools (depending on application)
Hammer Wood block
1 Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
Measure to confirm that the hole in
A
the door is either 2-1/8" (54 mm) or
1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
Note: Additional door preparation may be
required for doors with 1-1/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
2 Install the latch and strike
A
Is the door edge chiseled?
YES
or
chiseled
Use latch "A". If the
latch bolt is not already
extended, extend the
latch bolt as shown.
A
Kwikset
1-800-327-5625
www.kwikset.com
Measure to confirm that the backset is
B
either 2-3/8" or 2-3/4" (60 or 70 mm).
b a
2-3/8" or 2-3/4"
60 or 70 mm
B
Hold the latch in front of the door hole, with the latch
face flush against the door edge.
NO
not
chiseled
Use latch "B" (not
included). If the latch
bolt is not already
extended, extend the
latch bolt as shown.
B
C
Are the latch holes centered in the door hole?
No adjustment is required.
Proceed to next step.
Parts in the box
Latch
B
"B" is not included. If needed,
please contact Kwikset to order
a drive-in latch for your lock.
Strike Adapter
ring
C D
Keys
E
C
Measure to confirm that the hole in
the door edge is 1" (25 mm).
c k
s e
t
A
B
YES NO
or
Rotate latch face as
shown to extend latch.
A
B
1 / 4
Exterior
Interior
Assembly
Assembly
A
F
W
Mounting Fasteners
Plate
03809
G
P
SmartKey
Tool
48654
H
Measure to confirm that the door is
D
between 1-3/8" and 1-3/4"* (35 mm
and 44 mm*) thick.
1"
25 mm
*Service kits for 2-1/4" (57 mm) thick doors
are available through Kwikset.
actual
size
N
S
D
Which latch are you installing?
Latch "A"
A
N or P
(2x)
E
Install strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
Longer screws
install closest to
the door jamb.
S (2x)
Q (2x)
K L M
46780
Q
N
S
27526 64109
T
U V
1-3/8" – 1-3/4"*
35 – 44 mm*
P Q
Latch "B"
or
B
wood
block
C
door frame
