Pulse-Eight neo 4*4 Video Matrix Product User Manual page 6

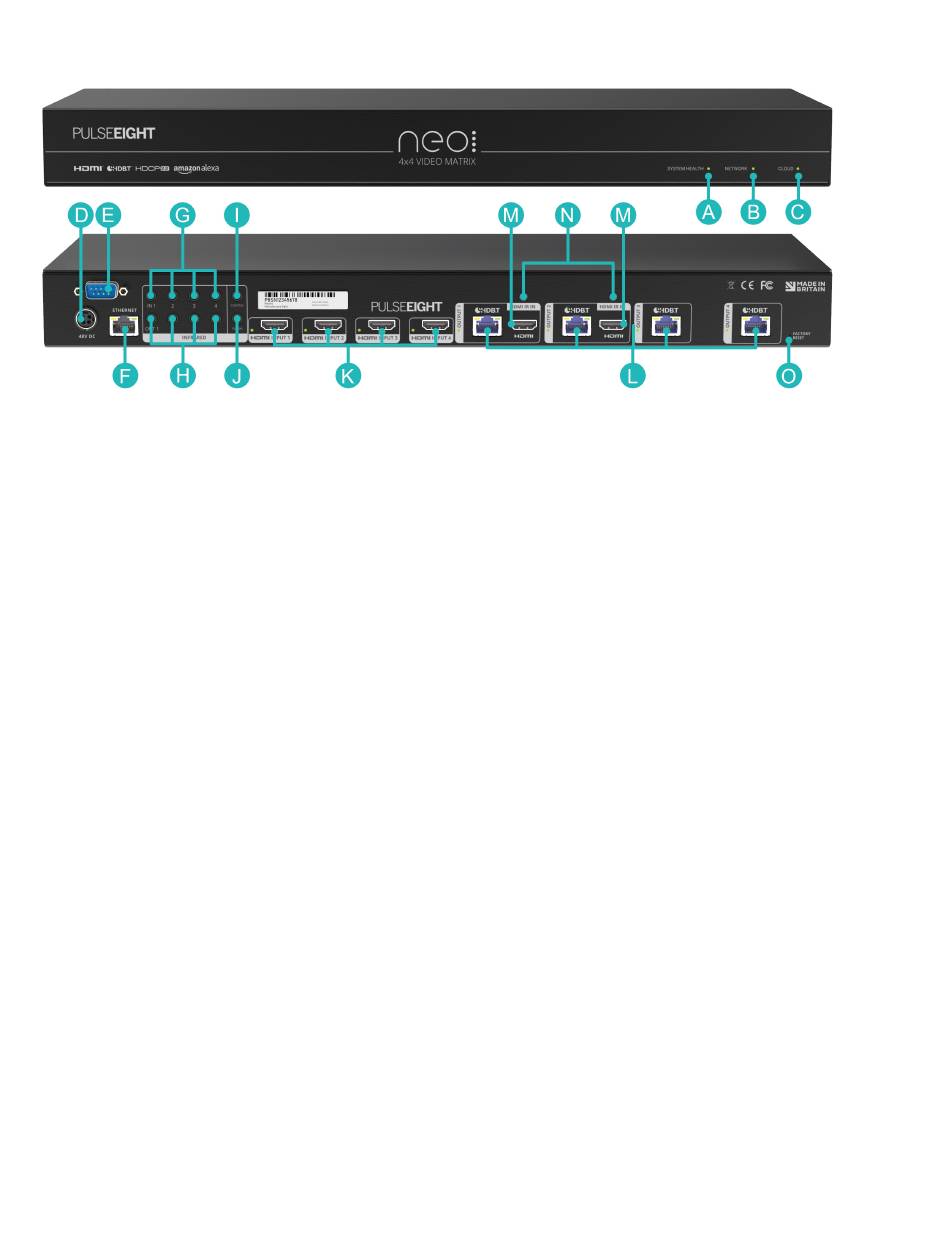

Panel
A.
System Health LED Indicates whether matrix is turned on and healthy (green), or if there is an issue present
(red).
B.
Network LED Indicates the matrix is connected to the internet through its network link (green) or if there is an
issue (red).
C.
Cloud LED Indicates the matrix is able to connect to the Pulse-Eight Remote Monitoring Portal (green) or if there
is an issue (red).
D.
Power Connector Power connector. Use supplied power cord to connect the power.
E.
Serial Port D-Sub 9 pin RS-232 port for Third Party Control System. Connect to the matrix via serial cable.
F.
Ethernet Connect to network - required for connection to Web Interface, Third Party Control and Cloud Remote
Monitoring Portal.
G.
IR Inputs Connect as required. The IR Inputs are to be used to return IR back to the matrix using an P8-IR-
Optocable.
H.
IR Outputs Connect as required. The IR Outputs are to be used to connect input devices using the supplied IR
Emitters. See full installation guide to identify IR buds.
I.
Control IR Input General IR input designed for legacy control systems or where direct IR input is required (we
recommend the use of our IP driver instead of this port, where applicable).
J.
Global IR Used for a control system to be able to see all IR signals from all zones. We recommend using a P8-
IR-Optocable for connectivity from this port to your control system.
K.
HDMI Inputs Connect the appropriate high speed HDMI cable to each input. These cables should then be con-
nected to the Source device. (Blu-Ray player etc.)
L.
HDBaseT Outputs Connect the appropriate Cat5e or higher grade cable to each output. These cables should
then be connected to one of the supplied neo:Lite Receivers at each Sink device. (i.e. TV.).
M.
HDMI Mirror Outputs Connect the appropriate high speed HDMI cable to each output. These cables should
then be directly connected to each Sink device. (TV/AVR etc.) The output will mirror the adjacent HDBaseT out-
put.
N.
HDMI Mirror IR In Connect as required. The HDMI IR In ports are to be used to return IR back to the matrix
