Setup
INSTALLING IN A RACK
1. Attach the rack ears to the front sides of the matrix using the provided screws.
2. Install into rack and connect cabling according to mode of operation – as described below.
WARNING: To prevent damage, it is important to ensure adequate ventilation space on the sides of the matrix, espe-
cially on the ventilation openings on the side of the product enclosure.

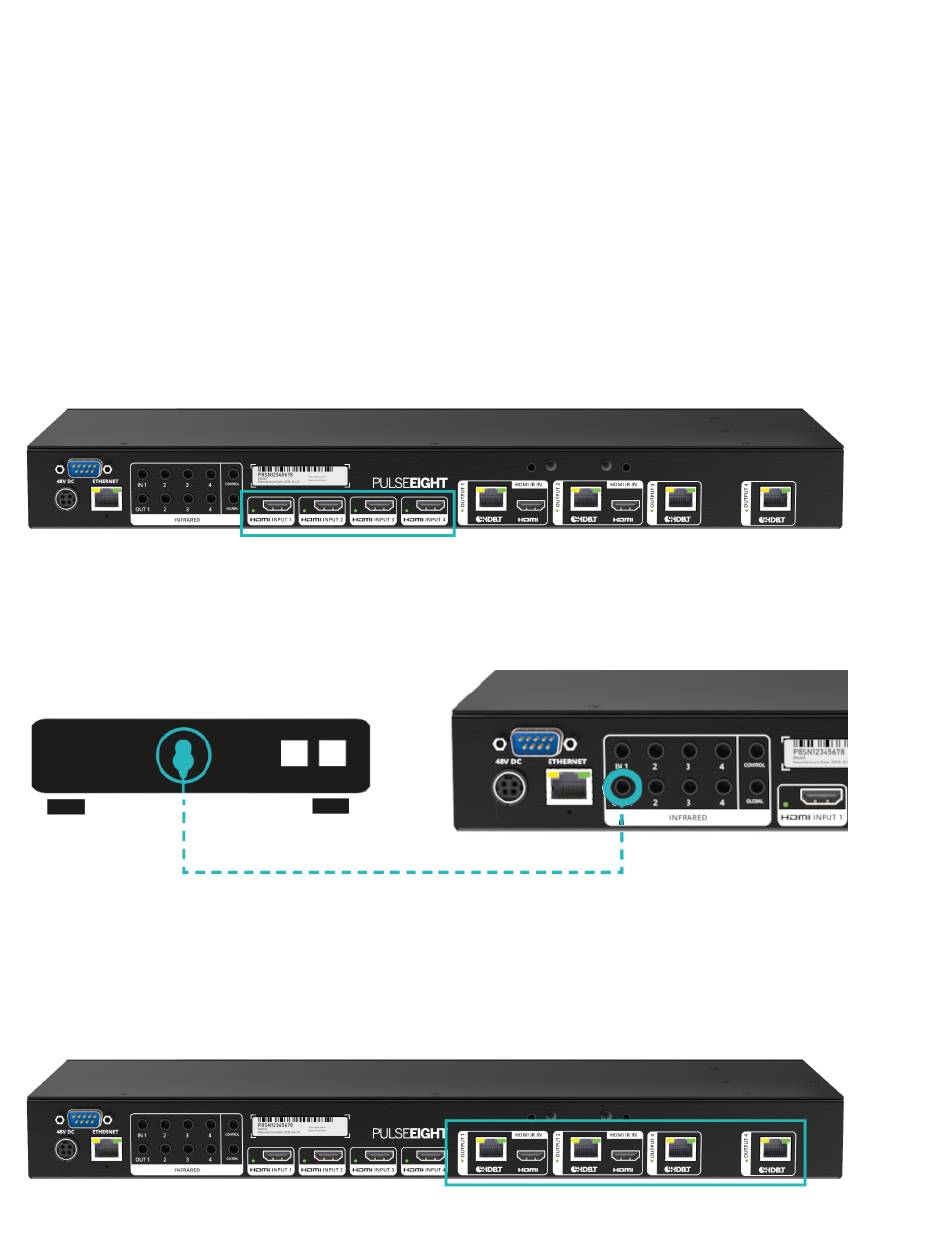

CONNECTING THE VIDEO INPUTS
3. Connect HDMI cables from your video sources (e.g. Blu-Ray player) to the HDMI inputs of the matrix.
Note: It is recommended, for ease of setup, to connect devices from Input 1 to Input 4, although this is not necessary.
4. Connect the supplied IR Emitter (Identifiable by matt surface) over the source device's IR window and attach to the
'IR Out' port.
Note: Ensure that the IR Emitter is connected to the same zone as the source device's HDMI input (i.e HDMI input 3
and IR 3).
CONNECTING THE HDBASET VIDEO OUTPUTS
5. Connect the appropriate Cat5e or higher grade cable to each HDBaseT output port you require.
Note: It is recommended, for ease of setup, to connect devices from Output 1 to Output 4, although this is not neces-
sary.
