Summary of Contents for Pulse-Eight HDBaseT Lite

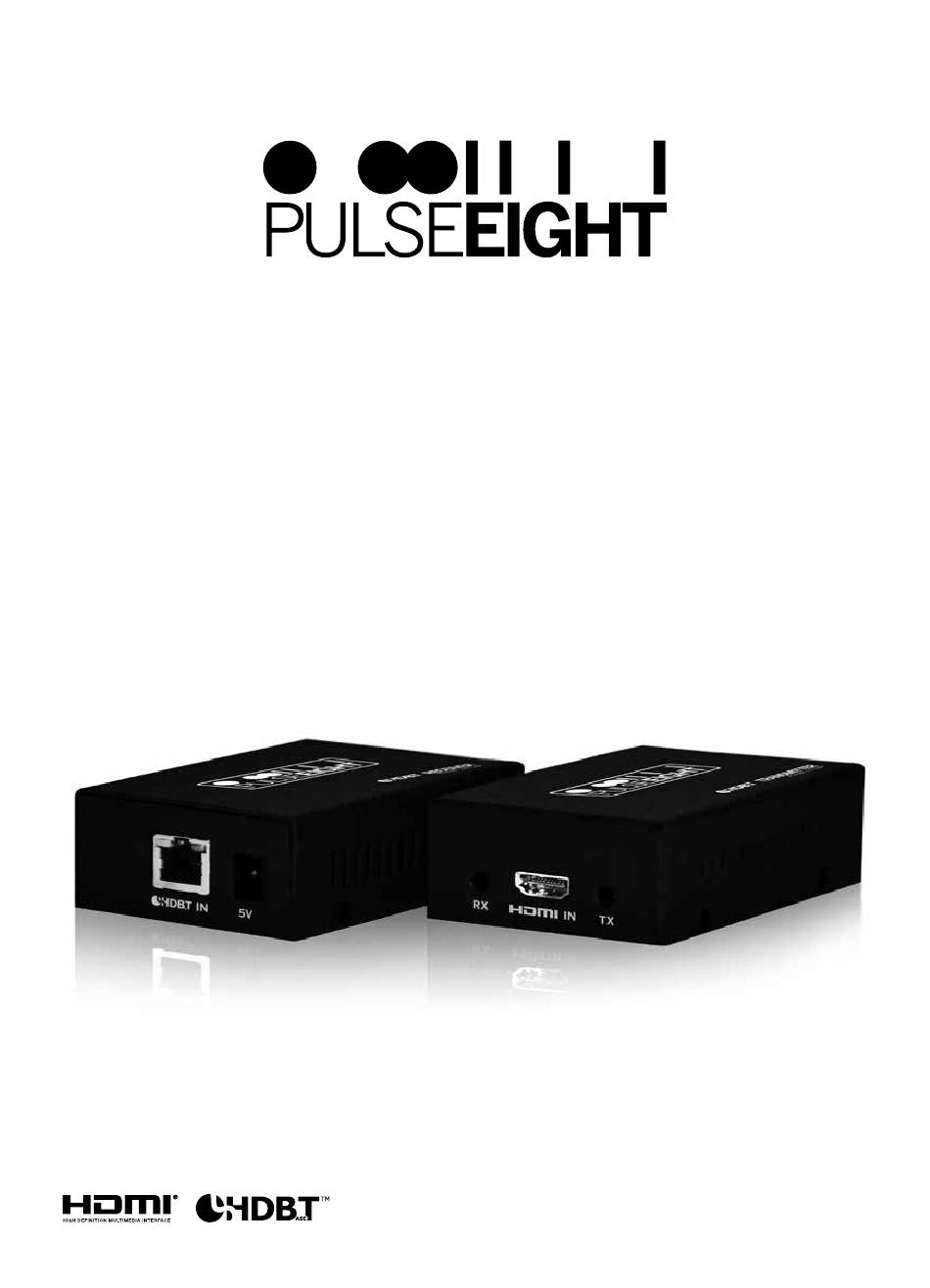

- Page 1 HDBaseT Lite ™ HDMI Extender Kit Quick Setup Guide P8-HDBT-L-NP-EXSET...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to install or operate this equipment. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury. •... -
Page 3: Package Contents
This HDBaseT™ Lite HDMI Extender Kit allows un-compressed HDMI and 2-way IR signals to be transmitted via a Single CAT5e/6/7 cable; over distances of up to 70 metres. PACKAGE CONTENTS • 1× Transmitter - HDMI to HDBaseT with IR • 1× Receiver - HDBaseT to HDMI with IR •... - Page 4 RECEIVER AND TRANSMITTER PORTS HDBaseT Connect with a single CAT5e/6/7 cable for data transmissions. The Green LED will illuminate when the device is connected to the power supply. The Yellow LED will illuminate when both devices are connected and powered. Connect only to the power supplies provided.
-
Page 5: Technical Specifications
IR PIN ASSIGNMENT IR EMITTER Ground IR Signal IR RECEIVER IR Signal Ground TECHNICAL SPECIFICATIONS Transmitter Input 1× HDMI, 1× IR Receiver Output 1× RJ45, 1× IR Emitter Receiver Input 1× RJ45, 1× IR Receiver Output 1× HDMI, 1× IR Emitter Max Video Bandwidth 300MHz/10.2Gbps Power Consumption... -
Page 6: Troubleshooting
TROUBLESHOOTING Should you encounter installation difficulties or issues with device communication, the following checklist of common issues and causes should help resolve your issues. If you still continue to experience issues, please email support@pulse-eight.com for further assistance No or poor picture quality: •... - Page 7 REFERENCE CABLE DISTANCES Cable Type Range Pixel Clock Video Data Supported Rate Rate Video CAT5e/6/7 70 metres <=225 MHz <=5.3 Gbps Up to 1080p, (HD Video) 60Hz, 36-bit, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). 40 metres >225 MHz >5.3 Gbps...
- Page 8 Pulse-Eight Limited | Poole | Dorset | BH12 4AL | UK T: +44(0)1202 413610 E: sales@pulse-eight.com www.pulse-eight.com...
