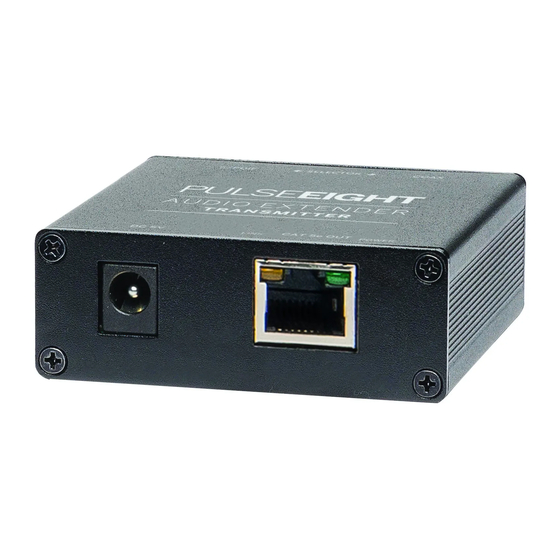

Pulse-Eight P8-AE-CAT-EXSET Quick Setup Manual

P8-AE-CAT-EXSET
QUICK SETUP GUIDE
RECEIVER
A
POWE R SIGNAL
CAT 5e IN
AUDIO EXTENDER
RE CEIVER
COAX
C
TRANSMITTER
E
S/PDIF
AUDIO EXTENDER
TRANSMITTER
DC 5V
B
B
DC 5V
S/PDIF
D
F G
COAX
CAT 5e IN
SIGNAL POWER
A
Cat 5e Port
A
link the transmitter
to the receiver with
a Cat 5e cable.
The corner LEDs
indicate when
connected correctly
Power
B
Connect
the supplied mains
power cable
Coax Out
C
out port- connect
to audio output
(ie amp)
S/PDIF Out
D
(Sony/Philips Digital
Interface Format)
out port - connect
to audio output
(ie amp)
S/PDIF In
E
(Sony/Philips Digital
Interface Format)
in port - connect
to audio input
(ie DVD player/TV)
F
Selector
select either Coax
or S/PDIF (Optical)
G Coax In
*
port - connect
to audio input
(ie DVD player/TV)
To
*
Coax
*
*
Adjust to
Coax in
