8. Finish the connection using a the appropriate high speed HDMI cable from the output device and connect to the
Receiver's 'HDMI Out' port.

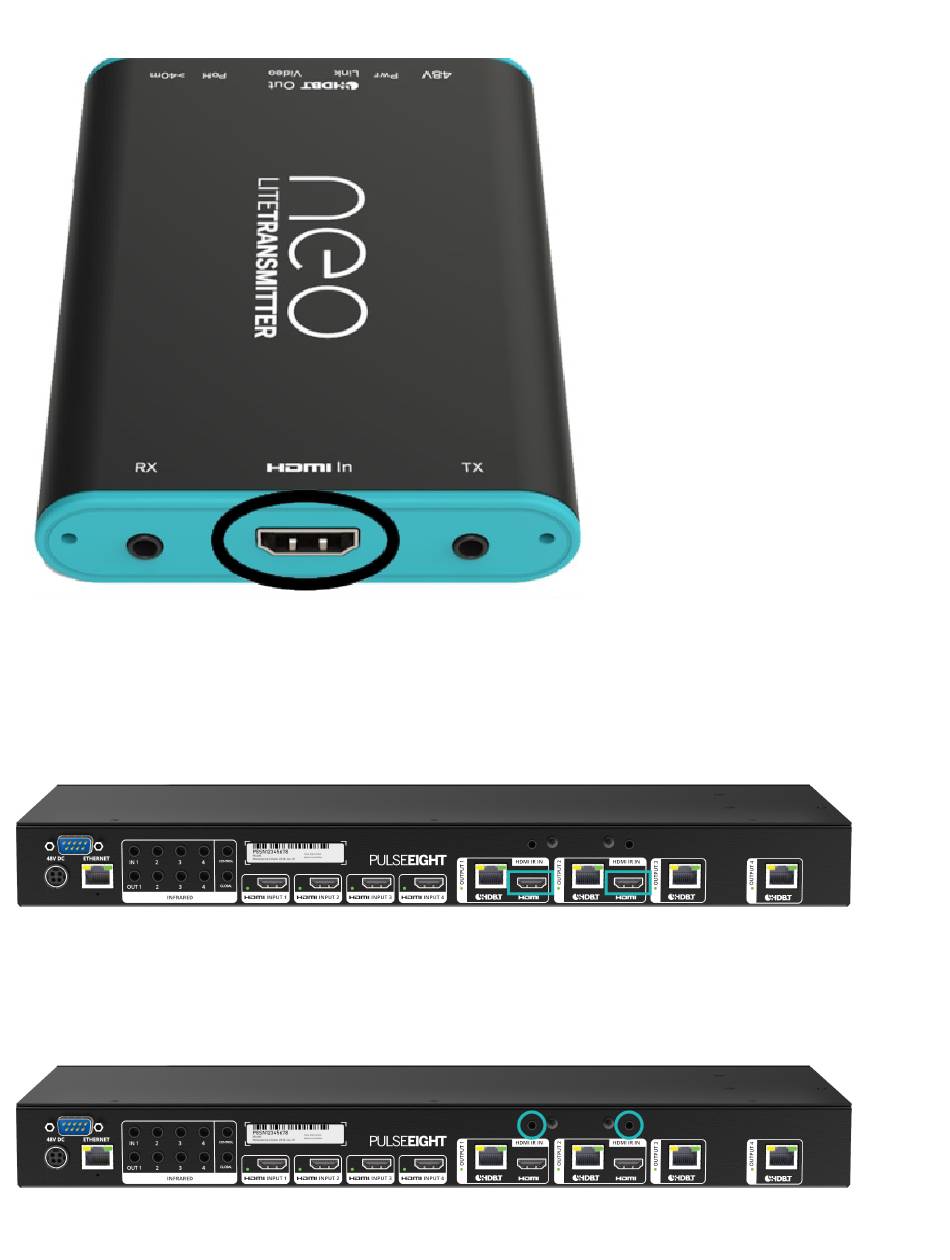

CONNECTING THE MIRROR HDMI VIDEO OUTPUTS
9. For HDMI Output ports 1 and 2, connect sink devices directly via high speed HDMI cables. The output of these ports
mirror the output of the adjacent HDBaseT ports.
Note: Can also be used in conjunction with a HDMI Extender Set (sold separately) for reaching further distances.
CONNECTING THE MIRROR IR PORTS
10. If you wish to use the mirror HDMI outputs, these IR ports can be used for sending return IR back to the matrix using
an P8-IR-Optocable.
