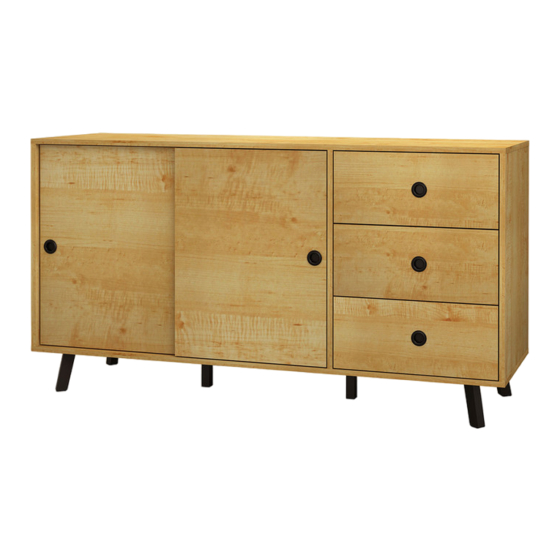

Kirra Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
bolt
dowel
screw
locking
x12
x8
x16
nut x8
L
K
M
wedge
screw
long
x4
x4
screw
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au
E
F
G
screw
slide
slide
x56
rail x3
rail x3
O
P
N
shelf
wheel
wheel
plugs
x4
x4
x8

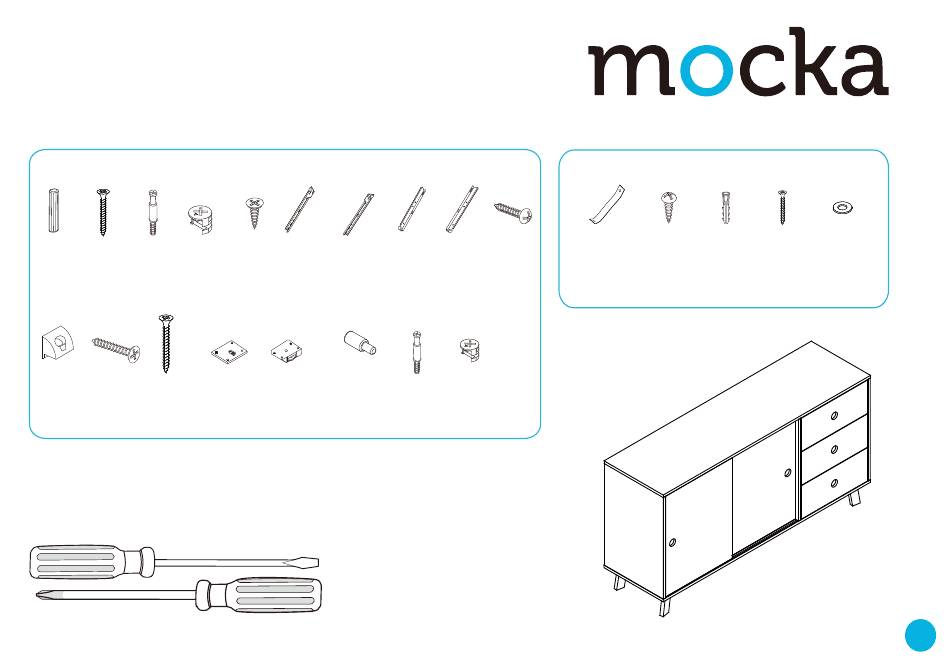

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
J
H
I
slide
screw
slide
rail x3
x24
rail x3
Q
R
small
small
bolt
locking
x12
nut x12
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Kirra Buffet
Summary of Contents for Mocka Kirra Buffet
- Page 1 Kirra Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. safety screw wall wall washer slide screw bolt screw slide dowel screw locking slide slide strap x1 anchor screw rail x3 rail x3...
- Page 2 Kirra Buffet Assembly Instructions Attach 3x slide rails (G) to panel [3] and secure with 6x small screws (E). Insert 8x dowels (A) to panel [1]. Insert 8x bolts (C) into panel [1]. Attach 3x slide rails (F) to panel [5] and secure with 6x small screws (E).
- Page 3 Kirra Buffet Assembly Instructions Attach panels [2] , [3] , [4] and [5] to panel [1] and secure with Insert connector [11] to join panels [9].Insert connector [10] to join panels [8]. 8x locking nuts (D). Tighten with a screwdriver.
- Page 4 Kirra Buffet Assembly Instructions Slide panels [8] and [9] between the grooves of panels [2], [3], [4] Insert 8x dowels (A) into the ends of panels [2], [3], [4] and [5]. Attach panel and [5] to form the back of the unit, as shown.
- Page 5 Kirra Buffet Assembly Instructions Attach the legs [14] and [15] to panel [7] as shown using 24x screw (J) . Insert 8x shelf plugs (P) into the end cavities of the cabinet as shown.Insert the shelf panels [6] and balance on top of the plugs.
- Page 6 Kirra Buffet Assembly Instructions back Note: If the door is not sliding smoothly or sitting straight, there is a screw in the middle of the wheel on the bottom of each door that can be tightened/loosened until the door is sitting properly.
- Page 7 Kirra Buffet Assembly Instructions Insert 4x small bolts (Q) to panel [16]. Tighten with a screwdriver. Attach panels [17] and [18] to panel [16] and secure with 4x small locking nuts (R). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 8 Kirra Buffet Assembly Instructions Attach panel [17], [18] and [20] as shown using 4x screws (B). Tighten with Slide panel [19] down along the grooves of panels [17] and [18]. a screwdriver. mocka.co.nz | mocka.com.au...
- Page 9 Kirra Buffet Assembly Instructions Attach slide rails (I) and slide rails (H) to the underside of the side Insert the assembled drawers into the corresponding compartments as panels as shown. Secure with 4x screws (E) and tighten with a shown. Ensure the drawers slide easily along the rails.
- Page 10 Kirra Buffet Assembly Instructions Once assembled lift furniture into place, do not drag. Use a drill to create Attach 4x wedges (K) into the corners of the back of the unit and secure with a small hole lining up with the top of the safety strap (V). Fasten to wall 4x screws (L).
