HON 105 Stack-On Unit Manual

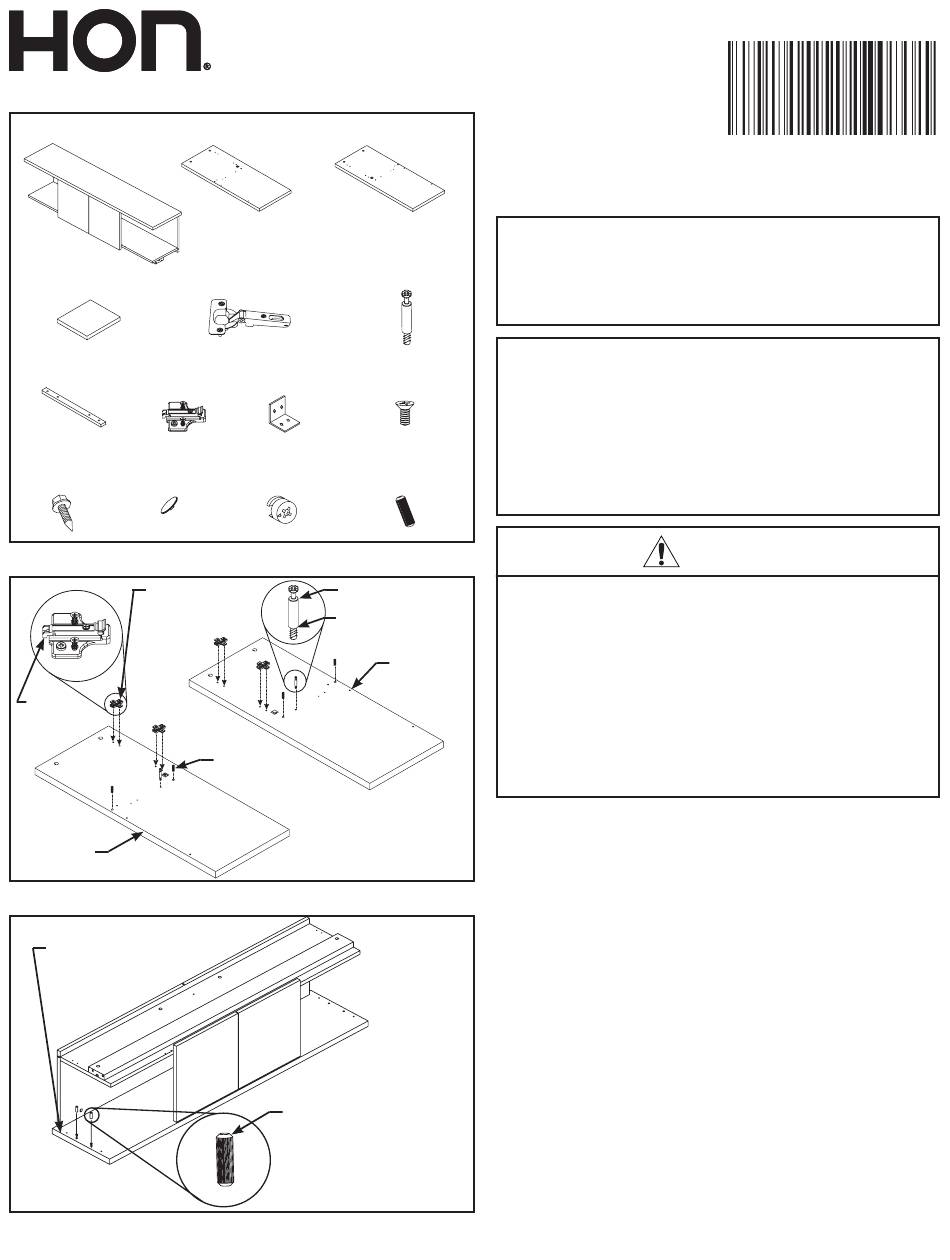

Illustration 1
Top assembly Right end panel
Door
Mounting
Reveal
plate
Wood Connector
screw cover
Illustration 2
Hinge mounting
plate
Front of
mounting
plate
Right end
panel
Illustration 3
Side of top assembly
242-9641C
www.hon.com
Left end panel
Minifix bolt
Hinge
Hinge
Corner
bracket
screw
Minifix Dowel
cam
Minifix bolt
Shoulder
Left end
panel
Dowel
Dowel
Read all instructions and review illustrations before
installing.
Tools required for assembly:
/ " power nutdriver
1
4
Tape measure
Safety glasses
Phillips screwdriver
This assembly includes (Illustration 1):
(1) Top assembly
(1) Right end panel
(1) Left end panel
(2) Corner bracket
(4) Mounting plate
(4) Hinge
(10) Connector cover
Wood products are heavier than they appear and
may be hard to control when moving. Use two or
more people when moving wood products or severe
personal injury may result.
Heavy panels can
Do not place fingers between or under panels
during assembly.
To prevent the possibility of serious eye injury,
always wear eye protection when hammering and
using power tools.
Assembly:
1. Refer to Illustration 2. Lay right end panel, with holes
up, on cardboard or a carpeted surface. Use the rub-
ber mallet to install two dowels (from hardware pack)
into locations shown.
Use the Phillips screwdriver to install a minifix bolt
(from hardware pack) onto right end panel at location
shown.
Use the Phillips screwdriver to install two hinge mount-
ing plates (from hardware pack) onto right end panel.
Repeat this procedure for left end panel.
2. Refer to Illustration 3. Lay top assembly upside down
on cardboard or a carpeted surface. Use the rubber
mallet to install two dowels (from hardware pack) into
larger holes along each side of top assembly.
105 Stack-On Unit
Drill
Masking tape
Rubber mallet
(2) Door
(8) Dowel
(2) Reveal
(6) Minifix bolt
(6) Minifix cam
(8) Wood screw
(8) Hinge screw
WARNING
pinch or crush fingers.
1 OF 1
