Coordinate Troubleshooting Guide

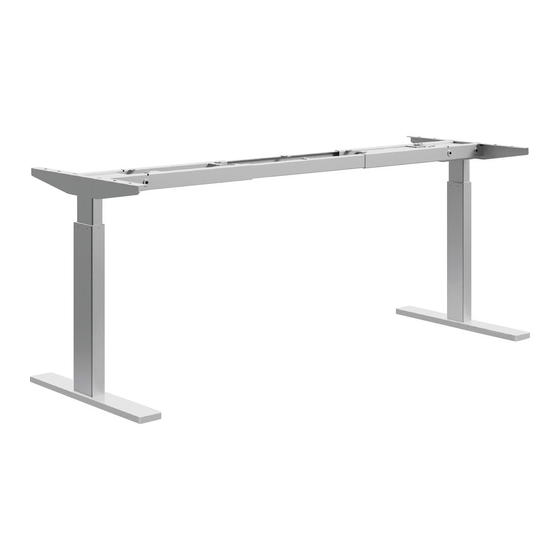

Product Series: Coordinate
Applicable Models: HHAB3S2L, HHAB3S3L, HHAB2S2L
Allows end user to reset the base out of the box or if any issues occur
1. Press and hold the "down" button on keypad controller until the base reaches its lowest
position.
2. Release the "down" button
3. Hold the "down" button again until the display reads "RST"
4. Release the "down" button
5. Hold the "down" button again until the base lowers slightly, then raises back up
6. Release the "down" button
The base should now be ready to use
Allows end user to set the memory presets at desired locations (up to 4 presets)
1. Adjust the base to the desired height using the "up" and "down" buttons
2. Press "M" followed by the desired preset number
The memory preset is now set for that height
Allows end user to set maximum height of base if highest height is not desired
1. Adjust the base to the desired maximum height
2. Press the "M" button, then release
3. Immediately press the "up" button, then release
4. Press and hold the "M" button. The display will flash "999" then change to display the height
The upper limit (maximum height) is now set
How to reset the height adjustable base:
How to set the memory presets:
How to set the upper limit:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HON Coordinate Series
Summary of Contents for HON Coordinate Series
- Page 1 Coordinate Troubleshooting Guide Product Series: Coordinate Applicable Models: HHAB3S2L, HHAB3S3L, HHAB2S2L How to reset the height adjustable base: Allows end user to reset the base out of the box or if any issues occur 1. Press and hold the “down” button on keypad controller until the base reaches its lowest position.
- Page 2 How to set the lower limit: Allows end user to set minimum height of base if lowest height is not desired 1. Adjust the base to the desired minimum height 2. Press the “M” button, then release 3. Immediately press the “down” button, then release 4.
- Page 3 Table is not running End user is stating there is no communication from the table base 1. Does the keypad controller display anything? a. If yes, please follow the following troubleshooting: I. Is there an error code? See Error code section for more info. II.
- Page 4 Error code is displayed on the keypad End user states that an error code has displayed on the keypad preventing usage of the base 1. Error code E01-E13 displays on the keypad a. Reset the base – If resetting the base is unsuccessful, replace the base 2.
