Tools Required
for assembly
Phillips
or
ATTENTION
Make sure all bolts, screws and other fasteners are fully tightened before use.Tighten all bolts/
screws/other fasteners at least every 6 months or whenever needed.
WARNING!
To ensure proper assembly, follow all steps and use all parts. Failure to follow this warning
can result in serious injury to yourself or others.
Assembly Time
1 of 4

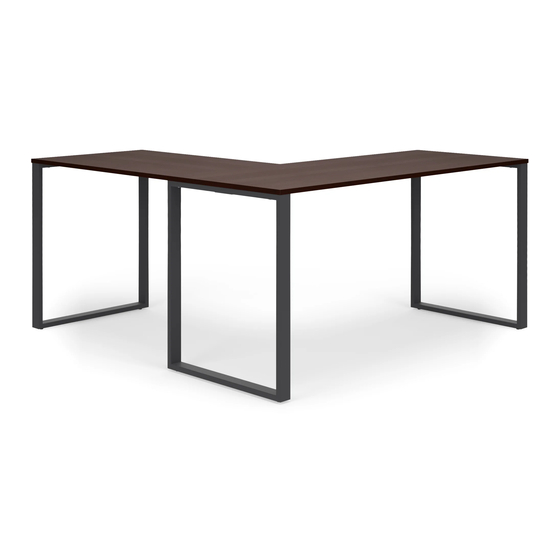

Model No.BSXLMOL
Advertisement
Table of Contents
Related Manuals for HON basyx BSXLMOL
Summary of Contents for HON basyx BSXLMOL
- Page 1 Model No.BSXLMOL Tools Required Assembly Time for assembly Phillips ATTENTION Make sure all bolts, screws and other fasteners are fully tightened before use.Tighten all bolts/ screws/other fasteners at least every 6 months or whenever needed. WARNING! To ensure proper assembly, follow all steps and use all parts. Failure to follow this warning can result in serious injury to yourself or others.
- Page 2 Long Long Short Short B.M6*20 C.M6*30 D.M6*35 E.ST 3.5*14mm (1 for spare) (1 for spare) (1 for spare) (1 for spare) X 19 X 13 X 13 STEP 1 2 of 4...
- Page 3 STEP 2 2-1 Assemble support (4)(5) to Top (1) with screws (D).Hand-Tight only(do not tighten them completely). 2-2 Assemble support (6)(7) to Top (2) with screws (D).Hand-Tight only(do not tighten them completely) Note the holes orientation related to the nut on the top. STEP 3 3-1 Put in the Legs (3) as the illustration.
- Page 4 STEP 5 (Left side assembly) 5-1 Place and assemble two sub-assembly with screws (B) and (D) as illustration. 5-2 Align the top edges. 5-3 Completely tighted screws (D) and then screws(B). 5-4 Assembly the plates (A) with screws (E). STEP 5 (Right side assembly) 5-1 Place and assemble two sub-assembly with screws (B) and (D) as illustration.
