HON Initiate Flexconnect Installation Instructions

Initiate™
Connection to a power source, by a licensed electrician, and quantity of receptacles used for a given cir-
cuit must be in compliance with all national and local electrical codes. Connect a maximum of 13 recep-
tacles (12 in Canada, and fewer in certain U.S. locales) to one circuit. Consult applicable national and
local electrical codes.
Disconnect electrical connections between panels prior to removal of a mechanical connection. Ensure
that the power supply is disconnected prior to disconnecting any electrical components.
When electrical components are interconnected from one panel to another, the panels must be mechan-
ically connected per the appropriate panel-to-panel installation instructions.
Failure to observe these warnings could result in a fire or electrical shock.

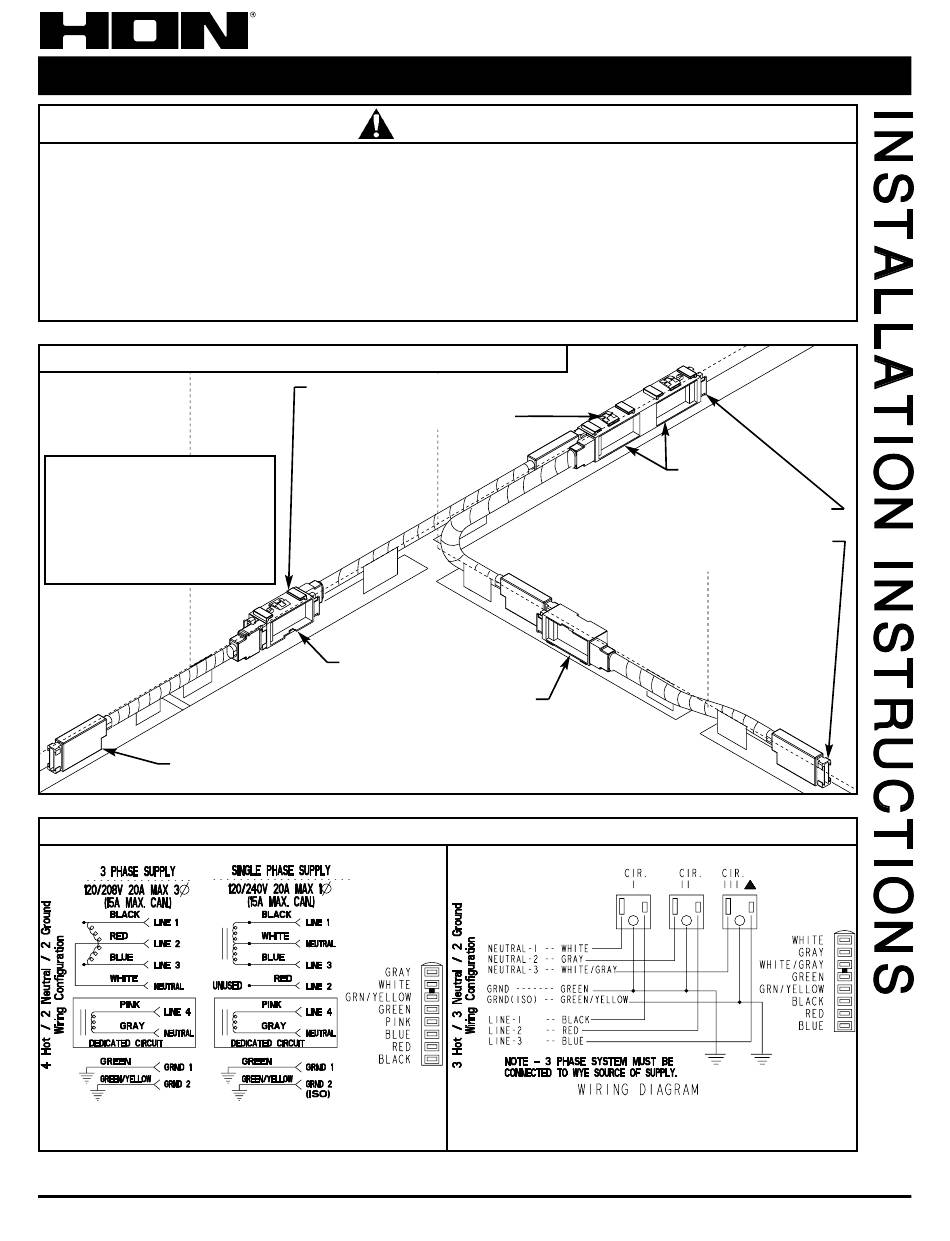

Illustration 1. General Configuration and Component Identification:

Notes: All electrical components
are UL Listed to UL1286
and UL183.
By pulling on terminal
housing at end of cable
assemblies, Power and
Pass-Thru harnesses can
be stretched up to 3
Pass-Thru cable (12"-18")
8710XX

Illustration 2. Electrical Wiring Diagrams:

Component Identification: Color of terminal ends and
receptacle backs are BLACK.
Flexconnect
WARNING
•
Connect to previously installed cable.
•
Stretch, as required, to proper position.
•
Snap onto mounting bracket.
1
/ " .
2

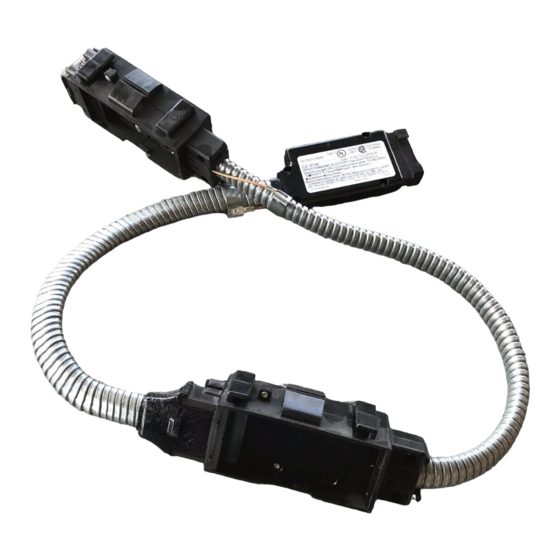

Power harness (24")
871224
Pass-Thru harness (24"-60")
8711XX
TM
ELECTRICAL S S YSTEM ( ( 8-w w ire)
4 hot / 2 neutral / 2 ground systems:
color of terminal ends are black.
3 hot / 3 neutral / 2 ground systems:
color of terminal ends are rust.
Component Identification: Color of terminal ends and
receptacle backs are RUST.
Power harness
(30"-60") 8712XX
42-2241
SIDE 1 OF 3 (7/01)
