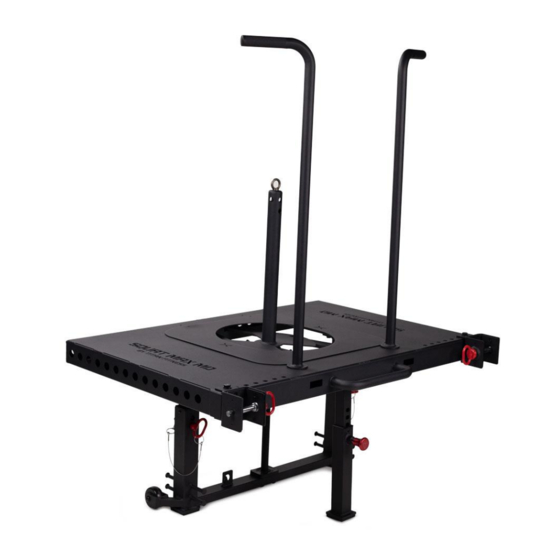

RACK MOUNTED SQUAT MAX
SQTMAXRCK1 - SQTMAXRCK2
401486
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titan Fitness SQTMAXRCK1
Summary of Contents for Titan Fitness SQTMAXRCK1
- Page 1 RACK MOUNTED SQUAT MAX SQTMAXRCK1 - SQTMAXRCK2 401486 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 ASSEMBLY PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION PEDAL FRAME LOAD-BEARING FRAME BASE FRAME WEIGHT PLATE HOLDER ADJUSTABLE FRAME RIGHT SAFETY FRAME CONNECTING FRAME LEFT SAFETY FRAME SUPPORT INNER FRAME SUPPORT OUTER FRAME TAPE 970*175*16 HANDLE FRAME METAL PLATE Ф40*Ф10*5 STOPPER SAFETY HOOK Ф10*110...
-
Page 3: Hardware Pack
HARDWARE PACK... - Page 5 ASSEMBLY INSTRUCTIONS STEP 1 1. Install the Safety Hook (30) on the Load-bearing Frame (11). 2. Connect Stopper (10) and Base Frame (2), using Flat Washer Φ11*Φ20*2 (41) and Hex Bolt M10*40 (40). 3. Install the Load-bearing Frame (11) on the Stopper (10). 4.
- Page 6 STEP 2 1. Put the Weight Plate Support (12) on the Pedal Frame (1). 2. Install the Connecting Frame on the Pedal Frame (1), using Flat Washer Φ11*Φ20*2 (41), Nut M12(46), and Hex Bolt M12*105(43). 3. Connect the Support Outer Frame (3) with Pedal Frame (1), using Flat Washer Φ13.5*Φ24*2.5 (45), Spring Washer Φ12, and Hex Bolt M12*25(42).
- Page 7 STEP 3 Insert the Right Safety frame (13) and Left Safety Frame (14) into the Pedal Frame (1). Insert the Handle (8) through the Pedal Frame (1), and he Right Safety frame (13) and Left Safety Frame (14), fixing by metal Plate (23), Flat Washer Φ9*Φ16*1.6 (39), Spring Φ8 (38), and Hex Bolt M8*20(61).
- Page 8 APPENDIX - FULL ASSEMBLY/EXPLODED VIEW/ FULL PARTS LIST...
- Page 9 FULL PARTS LIST DESCRIPTION DESCRIPTION PEDAL FRAME (24) HOLLOW SLEEVE BASE FRAME (25) FLOOR MAT ADJUSTABLE FRAME (26) ROLLER Φ75*40 CONNECTING FRAME (27) GUARD PLATE 95*68*5 BUMPER PIN (28) GUARD PLATE 90*48*5 SUPPORT INNER (29) END CAP Φ32*2 FRAME SUPPORT OUTER SAFETY HOOK (30) FRAME...
- Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 11 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2023 Titan Brands...
