Active Infrared Scanner TopScan-S

Sensing Field

Detection Angle of the Sensor:
5. Lay the test card on the ground with its mark parallel to the door.
6. Place the test specimen on the door-side of the test card mark. (see Figure
3.7).
7. Aim the sensor down vertically.
8. Use the chassis lever to swivel the sensor forward until it detects the test
specimen (20 cm height) and the red LED illuminates.
9. Swivel the sensor's light beam slowly further away from the door sees the
ground again (LED switches from red to green).
10. Now use the M3 screw (g) to attach the module to the module holder. The
detection angle has now been set.
This setting has been competed now.
Checking the Sensing range adjustment
11. Use the test card to check the sensing range adjustment once again.
For operation as a safety sensor in complying with German standard DIN 18650,
the sensing range has to be set to approx. 12.5 cm
DIN
4 Sensing Field
Depending on the application and the door width, a master module can be supplemented with up to
seven slave modules.
We recommend to adjusting the straight (vertical) transmitting / receiving beam of the corresponding
sensor module no further than 10 cm away from the main leading edge.

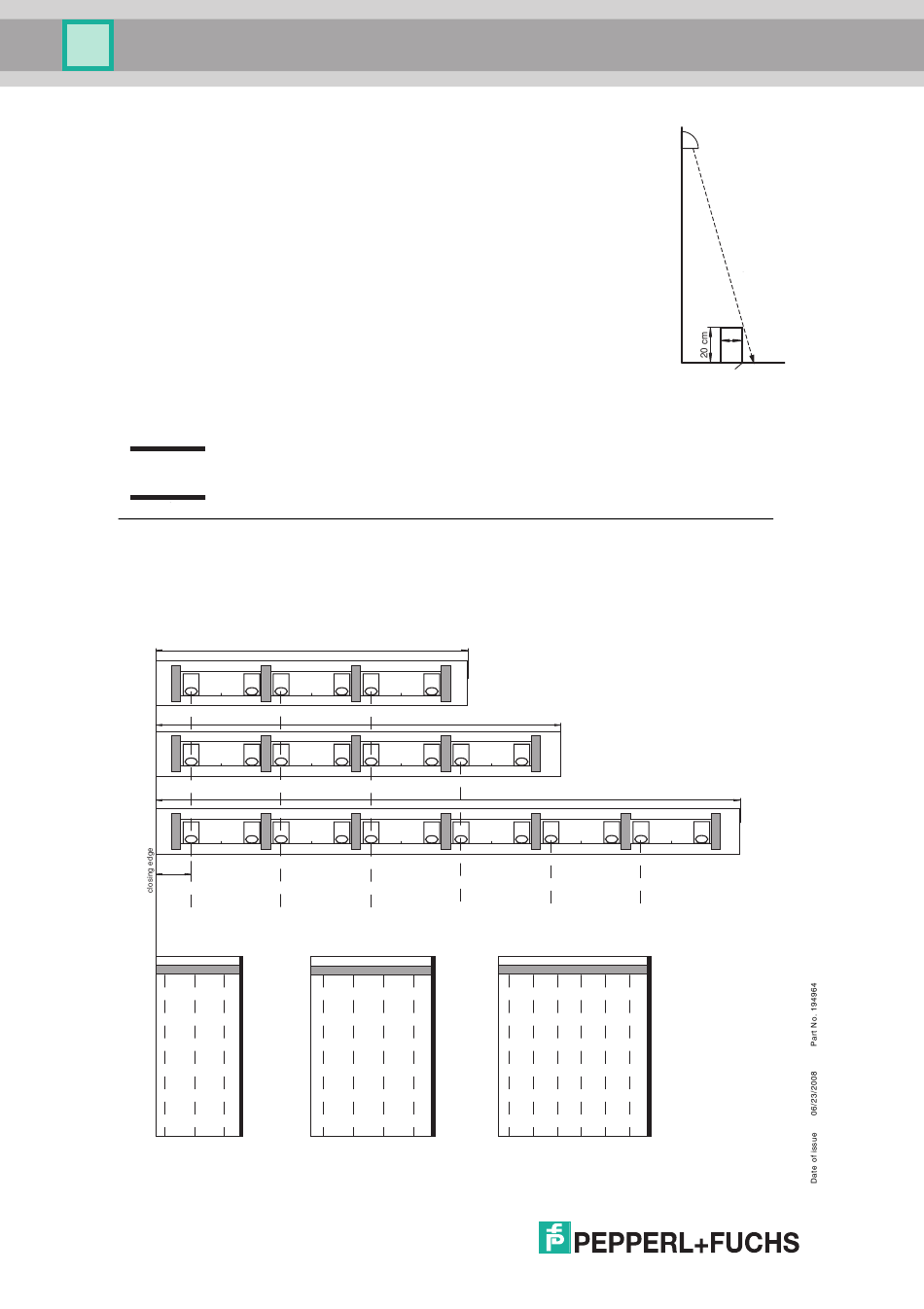

.Figure 4.1 illustrates the installation for different door panel widths.
Slave
AIR 17-S
Slave
AIR 17-S
Slave
AIR 17-S
100 mm
750 mm
Width of door panel
Figure 4.1 Sensing field
The wider the door panel is, the more slave modules are required.
20
750 mm
Slave Master
AIR 17-S AIR 17-S
900 mm
Slave Slave
AIR 17-S AIR 17-S
1400 mm
Slave Slave
AIR 17-S AIR 17-S
900 mm
Width of door panel
Figure 3.7Positioning the test specimen
1 cm over the ground.
±
Master
AIR 17-S
Slave Slave
AIR 17-S
AIR 17-S
1400 mm
Width of door panel
12
Mark on test card
Master
AIR 17-S
