Active Infrared Scanner TopScan-S

Components of TopScan-S

Standards of Conformity
Standards
Standards
Standards
Ambient conditions
Ambient temperature
Humidity at 20° Celsius
Humidity at 60° Celsius
Mechanical data
Housing length L
Mounting height
Protection type
Connection
Material
Housing
Light exit
Table 9.1 Technical data
9.1

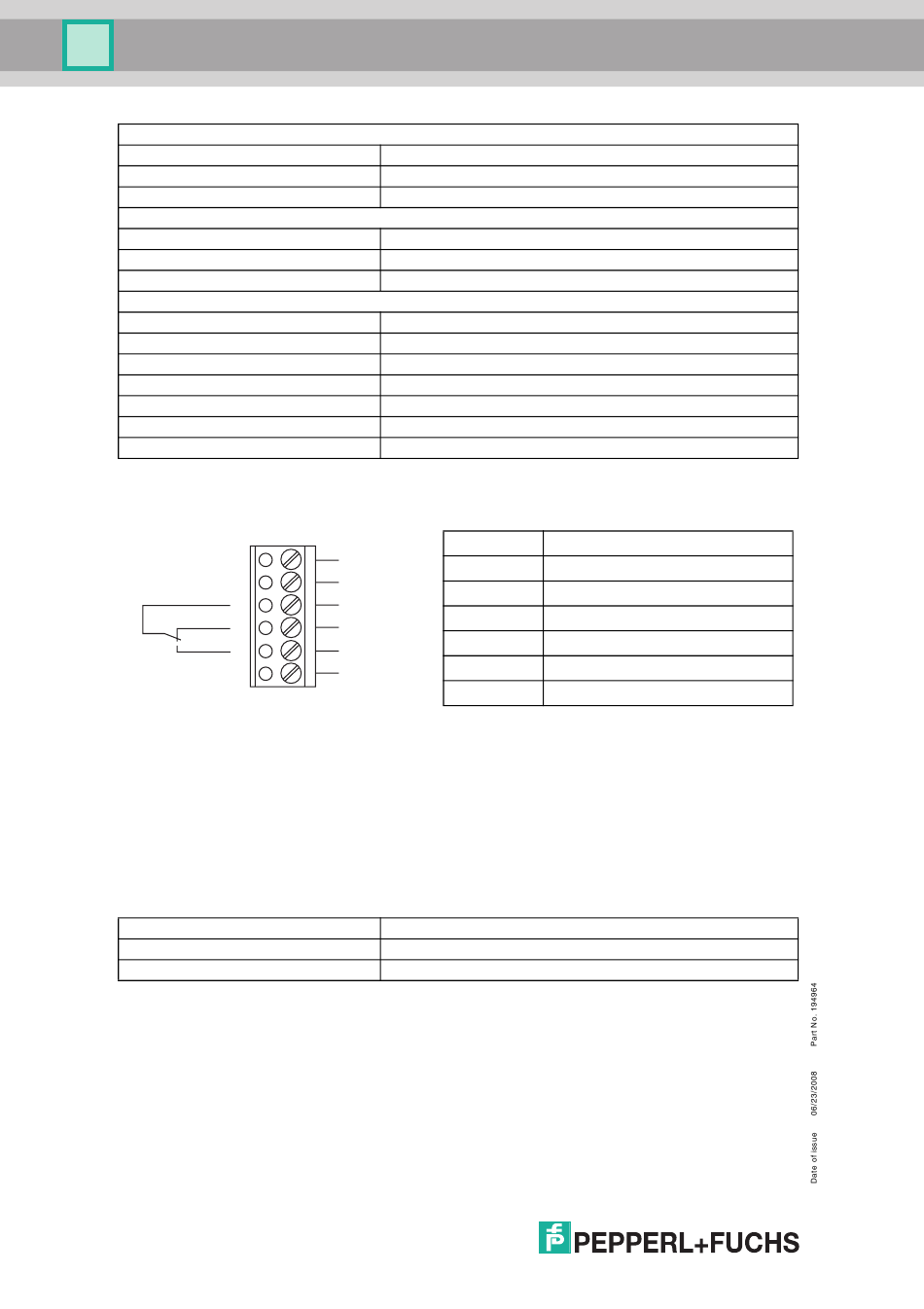

Wiring Diagram

Explanation:
Relay:
• Relay is inactive for target presence
• Relay is active in for target absence
Test input:
• Test input is inactive when signal is -3 V DC to +5 V DC or disconnected
• Test input is active when signal is +11 V DC to +30 V DC
10
Components of TopScan-S
Part Numbers
208177
208178
Table 10.1 Components of TopScan-S
24
EN 60947-5-2 / EN 61000-6-3 / EN 12650-1 / EN 12978
EN 61000-6-2 without EN 61000-4-5 / EN 61000-4 / EN -11
DIN EN 18650-1 / EN 954-1 / EN 60825-1 / EN 61508
-10° Celsius ... 50° Celsius (263 K ... 323 K)
< 90 %
< 50 %
min. 310 mm
max. 2,500 mm
IP52, with optional rubber seal IP54
Screw terminal
Aluminum / ABS
PMMA
1
-
2
+
3
4
5
6
TE
Description
AIR 17-S MASTER
AIR 17-S SLAVE
Pin
Assignment
1
GND (0 V)
2
V+ (+24VDC +/- 20%)
3
Relay output - common
4
Relay output - Normally closed
5
Relay output - Normally open
6
Test input
