Active Infrared Scanner TopScan-S

Design of the Device

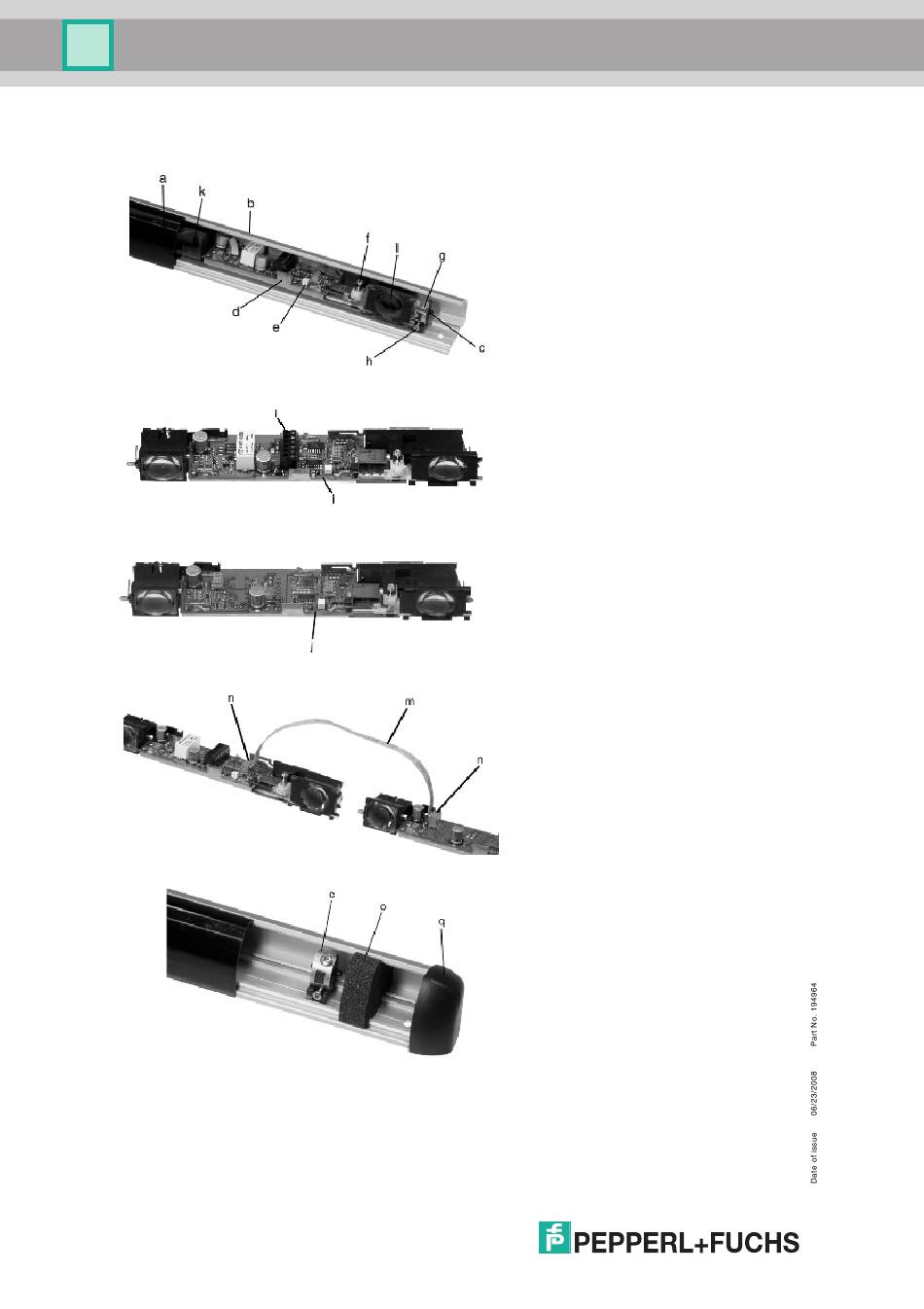

1 Design of the Device
Figure 1.1 Internal design of the device
Figure 1.2 Design of the master module
Figure 1.3 Design of the slave module
Figure 1.4 Connection of two modules
Figure 1.5 Installation of the module holder and of the profile seal
16
a
Removable housing cover
b
Aluminum profile
c
Module holder
Handle to set the detection angle
d
(chassis lever)
e
LED for status indication
f
Screw for sensing range adjustment
g
Screw to secure the detection angle
Screw M2.5 to secure the module
h
holder
Terminal block for supply voltage,
i
output and test input
j
Configuration bridge
k
Infrared transmitter
l
Infrared receiver
m
Flat cable
n
Module connector
o
Profile seal
q
End caps
