Active Infrared Scanner TopScan-S
Installation and Initial Operation
3.1.2 Installation of the Module
1.
Set the transmitters of the modules identically on all modules to be used (see Figure 3.3). -> For
example, move all of the transmitter adjustments towards the hinge
(the hinge side is opposite the leading edge).
2.
Connect all required flat cables to the modules prior to the installation of the modules. -> Use
the long flat conductor cable (24 cm) for the master module and the short flat conductor cable
(20 cm) for the slave module.
3.
Please make sure that the master module is always located on the door's hinged side.
4.
Connect the screw terminals (i) of the master module to the connection cable of the door
controller.
5.
Place the module holders into the Aluminum profile.
6.
Place the modules between the module holders (c). Then use the headless screw (h) to screw
the modules down to the module holder (see Figure 1.1).
7.
Use cutters to cut the configuration bridge (j) out of the PCB of the last module (last slave module
or individual master module) (see Chapter 5).
8.
Set the detection angle and the sensing range as indicated in Chapter 3.2.
9.
Replace the housing cover (a).
10. Screw down the end caps.
11. Finally, check the sensing range for each beam.
The connection cable to the door control er can be passed through the end cap by
means of a cable bushing. The optional section seal (o) can be used to seal the
TopScan-S section to conform with IP54.
3.2
Setting the Monitoring Beam - Leading Edge
Designate either the transmitting light beam or receiving light beam as vertical to optimize coverage
of the door's leading edge.

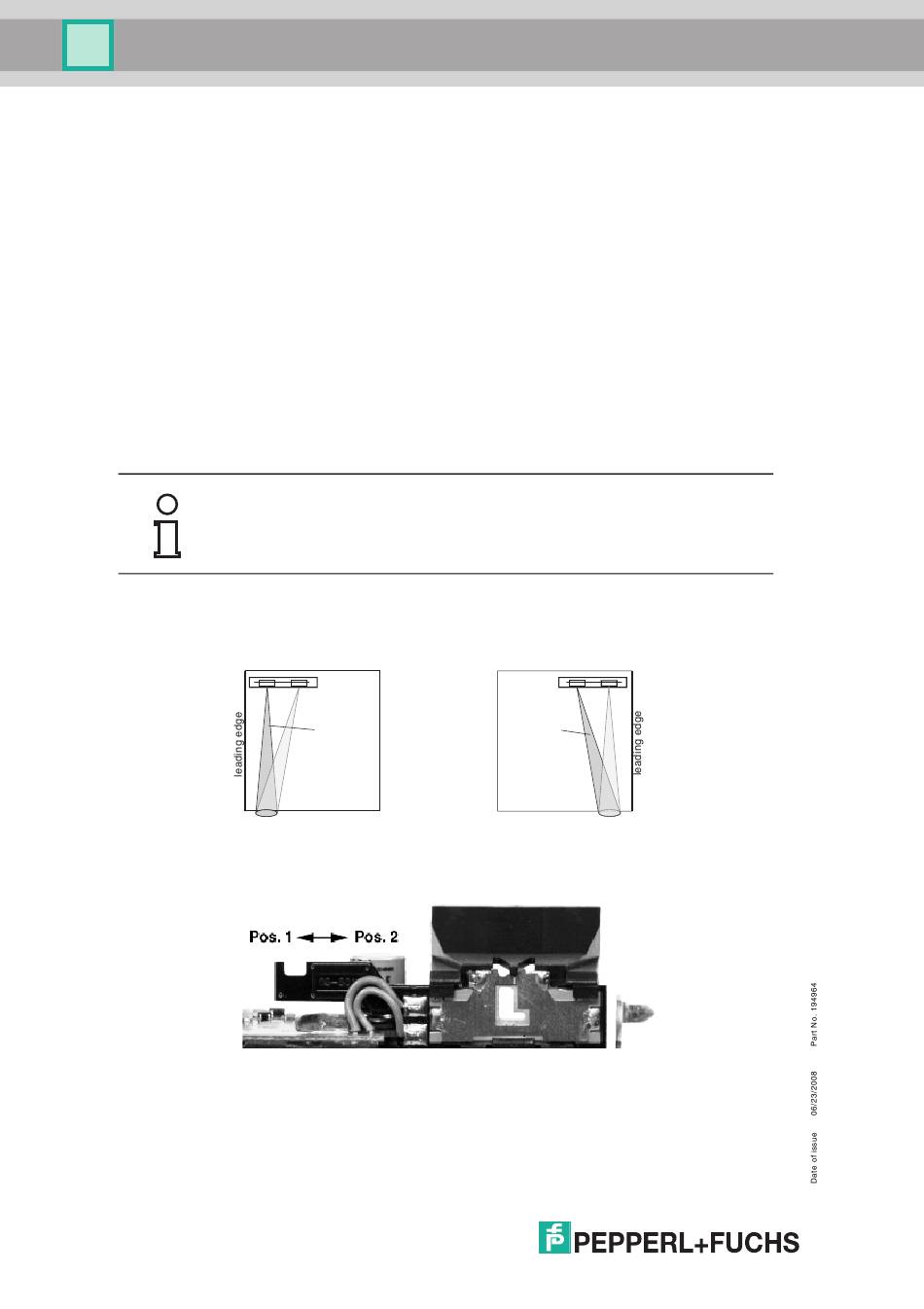

Figure 3.2 Explanation of the monitoring beam setting at the leading edge
Adjust the transmitter for left-justified or right-justified monitoring of the main leading edge. (see Figure
3.3.).
Figure 3.3 Setting the monitoring beam to the leading edge
In the factory default setting, all transmitter modules are preset to position 1 and to a sensing range
to maximum. Position 1 means that the transmitter beam is straight and the main leading edge is on
the left (see Figure 3.2 left).
Make sure that all modules (including the master) have identical transmitter settings on their lock po-
sitions.
18
Position 1
Transmitter
Position 2
Transmitter
