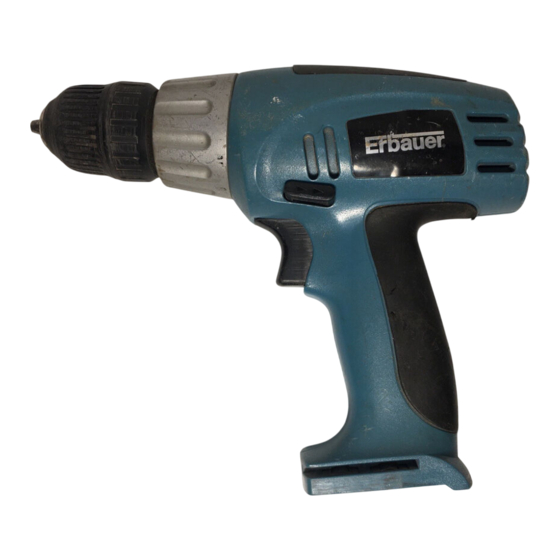

- Page 1 WARRANTY YEARS ERH005DDH ERH008DDH 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 1 2007-6-14 10:43:28...
- Page 2 - Repairs attempted by anyone, unless authorised by Screwfix Direct Ltd. This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice and spare parts please contact the customer helpline number on 0845 607 6380. CDT114L ERH008DDH ERH005DDH-M-070611.indd 2 2007-6-14 10:43:29...
-
Page 3: Safety Instructions
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 3 2007-6-14 10:43:29... - Page 4 fire. d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery CDT114L ERH008DDH ERH005DDH-M-070611.indd 4 2007-6-14 10:43:29...
-
Page 5: Additional Safety Instructions
10. Do not solder directly onto the battery. 11. Do not expose battery to water or salt water, or allow the battery to get wet. 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 5 2007-6-14 10:43:30... - Page 6 Rinse well with water and immediately seek medical care. If left untreated, the battery fluid could cause damage to the eye. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards CDT114L ERH008DDH ERH005DDH-M-070611.indd 6 2007-6-14 10:43:30...
- Page 7 1. ON/OFF SWITCH 2. FORWARD AND REVERSE ROTATION SELECTOR 3. DOUBLE ENDED BIT 4. VARIABLE CLUTCH 5. KEYLESS CHUCK 6. BATTERY PACK LATCH 7. BATTERY PACK 8. SOFT GRIP HANDLE 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 7 2007-6-14 10:43:30...
-
Page 8: Technical Data
Drilling capacity in steel: Battery capacity: 1.5Ah Lithium-Ion Charging time: 3~5 hours Net weight: 1.5kg VIBRATION DATA Vibration level: 1.5m/s ACCESSORIES 1.5Ah Li-ion battery pack 1pc(ERH005DDH) 1.5Ah Li-ion battery pack 2pcs(ERH008DDH) 3-5H Charger Double ended bit CDT114L ERH008DDH ERH005DDH-M-070611.indd 8 2007-6-14 10:43:30... -
Page 9: Charging Procedure
The temperature light (B) will illuminate when the battery temperature is over 60 C. It indicates that the drill cannot work under such condition. The drill stops working automatically. Allow the drill to cool down for re-operation. 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 9 2007-6-14 10:43:31... - Page 10 When the selector is in the center position, the switch is locked. Warning: Never change the direction of rotation when the chuck is rotating. Wait until it has stopped. Fig 6 CDT114L ERH008DDH ERH005DDH-M-070611.indd 10 2007-6-14 10:43:31...
- Page 11 8. Bit storage (See Fig 9) The bit provided with the drill can be placed in the storage area located on top of the drill. 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 11 2007-6-14 10:43:31...
-
Page 12: Handy Hints
1. When driving in larger and/or longer screws in hard material, it is advisable to drill a pilot hole first, slightly longer and just smaller than the shank diameter of the screw to be fitted.The pilot CDT114L ERH008DDH ERH005DDH-M-070611.indd 12 2007-6-14 10:43:31... -
Page 13: Troubleshooting And Faq
5. The battery pack gets warm during use The power-draw from the battery generates heat. This is increased as the energy draw increases. You will not damage the battery pack and the 14.4V LI-ION DRILL DRIVER CDT114L ERH008DDH ERH005DDH-M-070611.indd 13 2007-6-14 10:43:31... -
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. CDT114L ERH008DDH ERH005DDH-M-070611.indd 14 2007-6-14 10:43:32... - Page 15 Declaration of Conformity We, Importer Erbauer (UK) LTD BA22 8RT Declare that the product 14.4V LI-ION DRILL DRIVER ERH005DDH ERH008DDH Complies with the essential health and safety requirements of the following directives: EC Machinery Directive -98/37/EC EC Low Voltage Directive -2006/95/EC...
- Page 16 CDT114L ERH008DDH ERH005DDH-M-070611.indd 16 2007-6-14 10:43:32...
