Revision 2.6

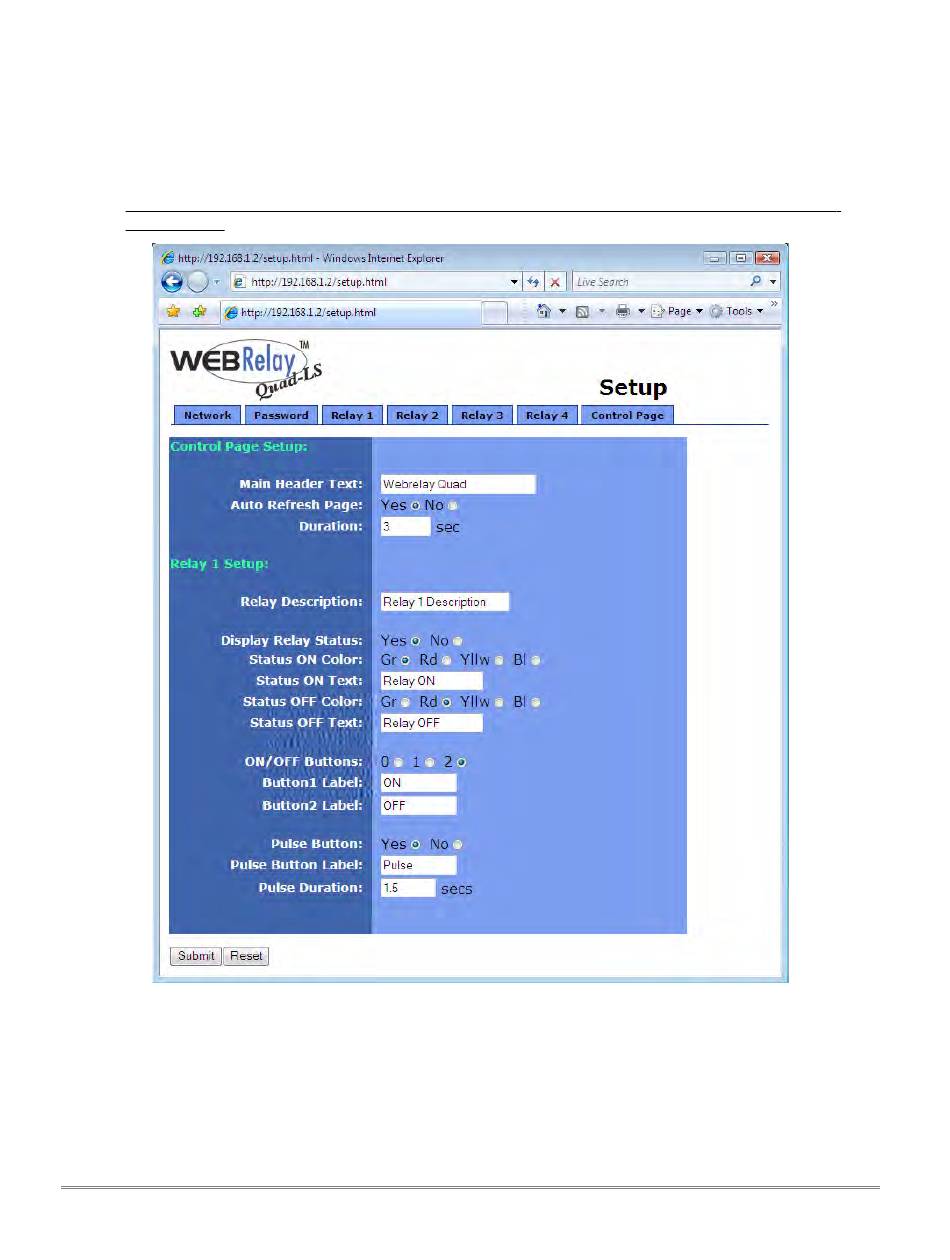

2.4.4 Relay Setup Pages
These pages are used to set up the function of each of the four relays, and how each relay is
represented on the control page. All four pages are identical, with the exception of the Relay 1
page which also includes a field for the main header text on the control page, the option to
automatically refresh the control page, and the time duration for auto refresh.
The following settings are only included on the Relay 1 setup page and not on Relay 2,3 or 4
setup pages.
Main Header Text:
This text will be displayed in the main header area of the control page. This field can be up to
25 characters in length.
Xytronix Research & Design, Inc.
WebRelay-Quad™ Users Manual
page 25
