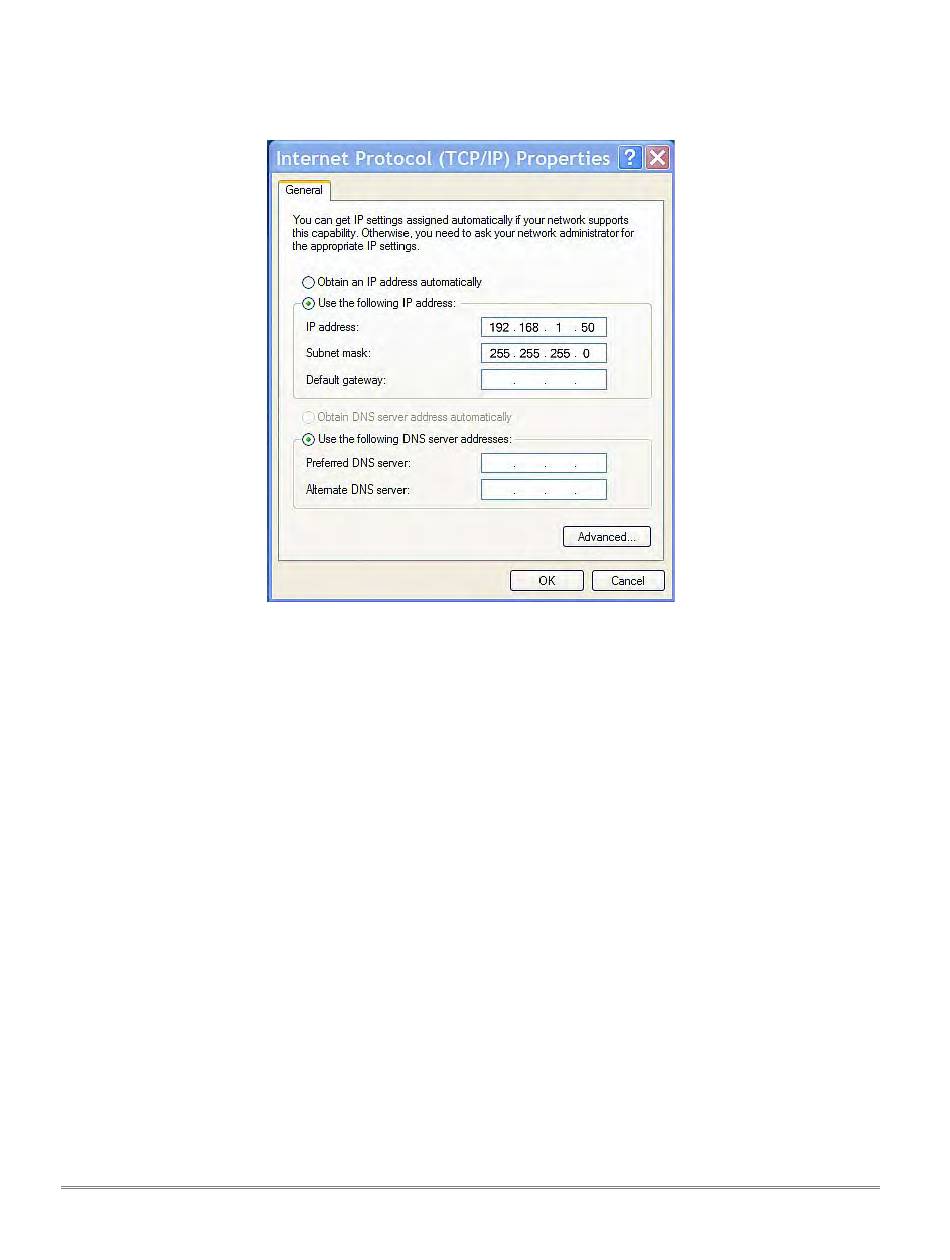

Step 5: Before making any changes to the network settings, write down the current settings so
they can be restored once WebRelay-Quad™ is configured. Next, select the radio button labeled
"Use the following IP address," and type in the IP address 192.168.1.50. Type in a subnet mask of
255.255.255.0. Leave the default gateway field blank. Click OK to apply settings.

2.3.3 Open Configuration Web Page

Once the network is set up, open the configuration setup page by typing the following URL into the
browser:
http://192.168.1.2/setup.html
Note: If option 1 above was used for initial configuration, replace the IP address given here with
the newly assigned IP address.
A password is required to change any parameters. The default password is 'webrelay' (do not
include quotes, password is case sensitive).
