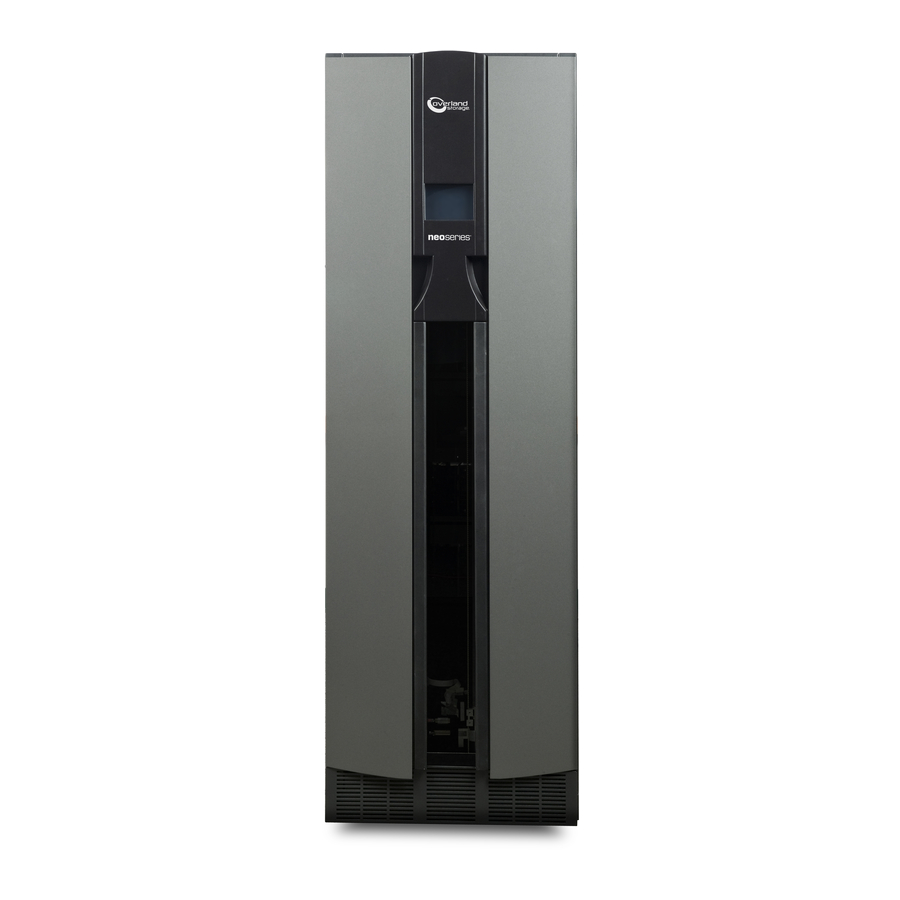

Overland Storage NEO 8000e Instructions

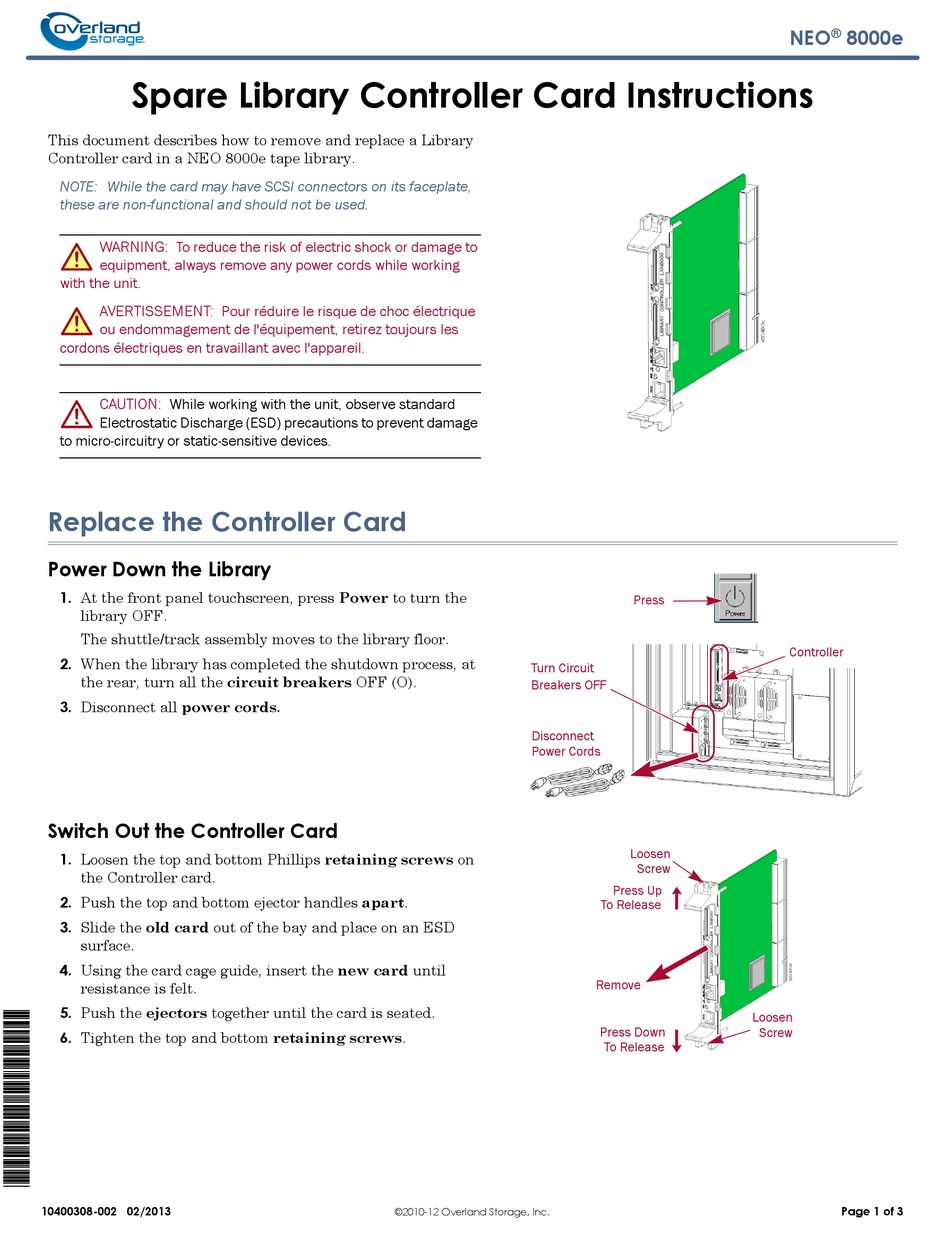

Spare Library Controller Card Instructions
This document describes how to remove and replace a Library
Controller card in a NEO 8000e tape library.
NOTE: While the card may have SCSI connectors on its faceplate,
these are non-functional and should not be used.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION: While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Replace the Controller Card

Power Down the Library

1. At the front panel touchscreen, press Power to turn the
library OFF.
The shuttle/track assembly moves to the library floor.
2. When the library has completed the shutdown process, at
the rear, turn all the circuit breakers OFF (O).
3. Disconnect all power cords.

Switch Out the Controller Card

1. Loosen the top and bottom Phillips retaining screws on
the Controller card.
2. Push the top and bottom ejector handles apart.
3. Slide the old card out of the bay and place on an ESD
surface.
4. Using the card cage guide, insert the new card until
resistance is felt.
5. Push the ejectors together until the card is seated.
6. Tighten the top and bottom retaining screws.
10400308-002 02/2013
Pour réduire le risque de choc électrique
©2010-12 Overland Storage, Inc.
Press
Turn Circuit
Breakers OFF
Disconnect
Power Cords
Loosen
Screw
Press Up
To Release
Remove
Press Down
To Release
NEO ® 8000e
Controller
Loosen
Screw
 Page 1 of 3
