PARTS INCLUDED:
A
[2]
SIDE FRAME
B
[1]
SLAT ROLL
[2]
SIDE RAIL
C
D
[1]
CENTER STRETCHER
E
[2]
SIDE STRETCHER
F
[5]
SUPPORT LEG
TOOLS NEEDED:
Phillips-head screwdriver (not included)
NOTE:
- Bed must be assembled by at least two people.
- Please read instructions carefully before
assembling bed.
- Use the parts and fittings list to identify each
component.
- Keep all packing materials until assembly is
complete to avoid loss of smaller parts.
- Do not completely tighten all bolts until all
steps are finished.
ASSEMBLY INSTRUCTIONS:
STEP 1:

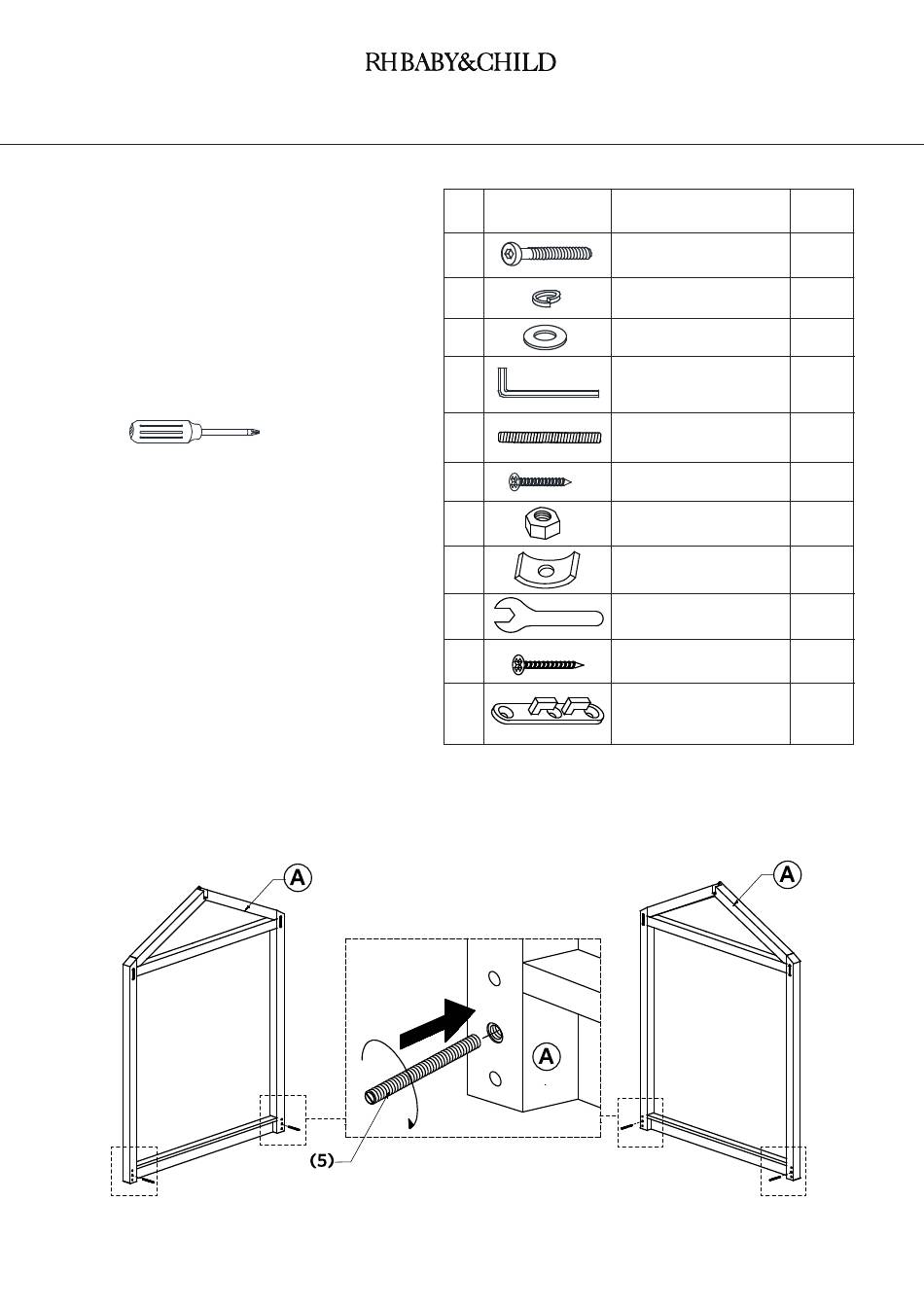

Insert the Threaded Rods (5) into the posts of the Side
Frames (A).
COL E FRA MED B ED QU EE N – ASSEM B LY IN ST RU CT I ON S
M o del N o: 3 55 - 12 5
NO.
ITEM
1
2
3
4
5
6
7
8
9
10
11
Page 1 of 5
DESCRIPTION
Long Bolt 5/16" x 2-1/4"
Spring Washer 5/16"
Flat Washer 5/16"
Allen Key 4mm
Threaded Rod
5/16" x2-3/4"
Screws 8 x 30mm
Hex Nut 5/16" x 12mm
Curved Slotted Washer
35 x 16 x 12 x 3 mm
Multi Wrench 12mm
Extra Long Screws
7 x 35mm
Extra Metal Bracket
QTY.
2 pcs.
2 pcs.
2 pcs.
1 pc.
4 pcs.
4 pcs.
4 pcs.
4 pcs.
1 pc.
6 pcs.
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RH Baby&child 355-125
Summary of Contents for RH Baby&child 355-125
- Page 1 COL E FRA MED B ED QU EE N – ASSEM B LY IN ST RU CT I ON S M o del N o: 3 55 - 12 5 PARTS INCLUDED: ITEM DESCRIPTION QTY. SIDE FRAME SLAT ROLL Long Bolt 5/16” x 2-1/4” 2 pcs.
- Page 2 CO L E FR AME D BE D Q UE EN – ASSE MB LY I NST R U CT I O NS M odel No : 3 55 - 1 2 5 STEP 2: - Slide the Side Rails (C) onto the Side Frames (A). - Insert Curved Slotted Washer (8), and Hex Nut (7), then tighten with Multi Wrench (9).
-
Page 3: Phillips-Head Screwdriver
CO L E FR AME D BE D Q UE EN – ASS EM BLY I NST R U CT I O NS Model No : 3 55 - 12 5 INSTRUCTIONS TO REPLACE METAL BRACKETS IF NEEDED: If the metal bracket malfunctions or becomes damaged, please replace it with an extra metal bracket. Unscrew the wooden screws with a Phillips-head screwdriver, then remove the damaged Metal Bracket. - Page 4 CO L E FR AME D BE D Q UE EN – ASSE MB LY I NST R U CT I O NS Model No : 3 55 - 12 5 STEP 4: Insert the Center Stretcher (D) onto the top of Side Frames (A) by using Long Bolts (1), Spring Washers (2), Flat Washers (3), and use Allen Key (4) to tighten.
- Page 5 CO L E FR AME D BE D Q UE EN – ASSE M BLY I NST R U CT I O NS Mo del N o: 3 55 - 12 5 STEP 6: Lay the Slat Roll (B) between the Side Rails (C) and attach using Screws (6) with Phillips-head screwdriver (not provided).
