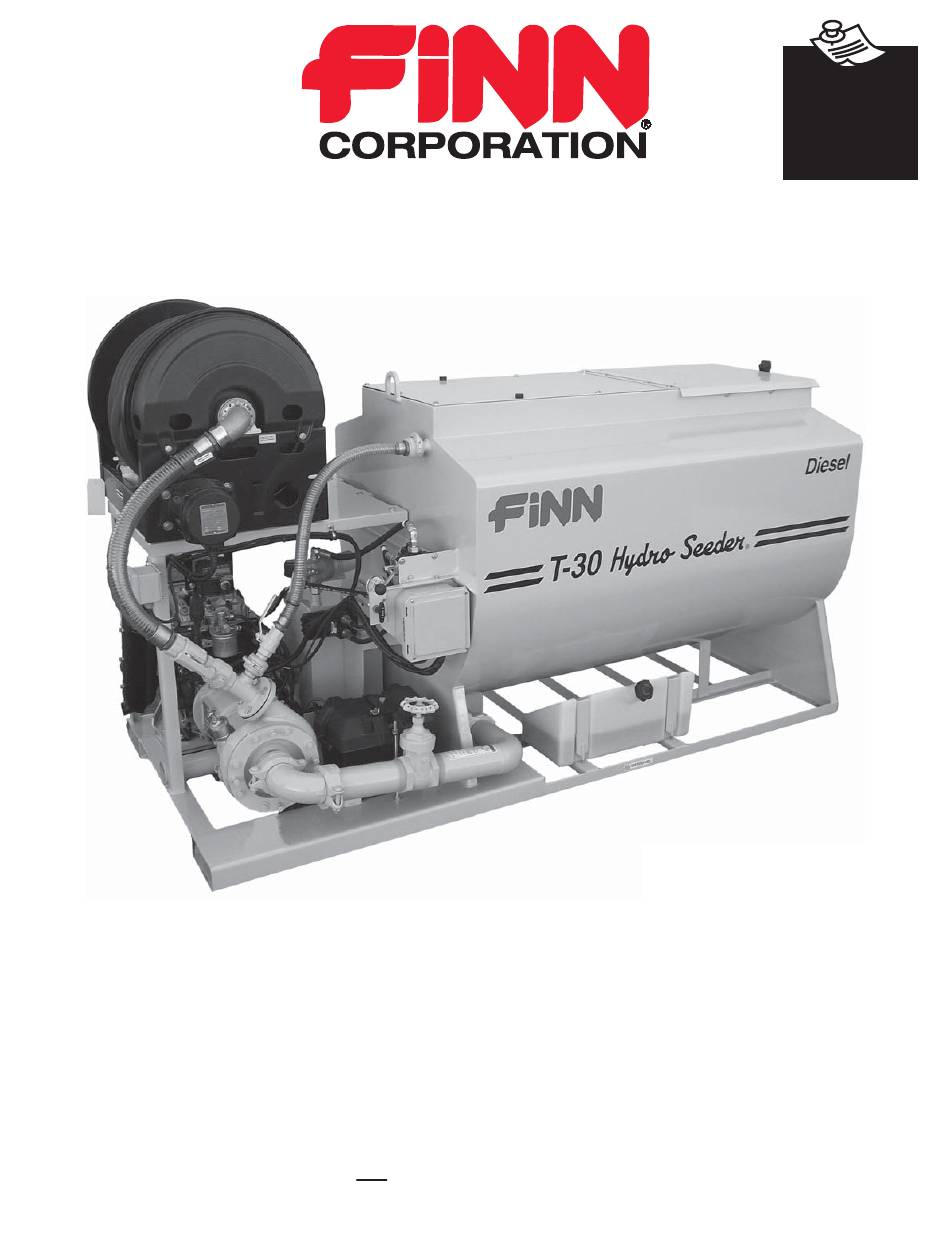

T30 / T30D HydroSeeder
Operator Instructions and Parts Manual
T30/T30D CE
MU1110 Rev. B
9281 LeSaint Drive • Fairfield, Ohio 45014
Phone (513) 874-2818 • Fax (513) 874-2914
Sales: 1-800-543-7166
CE-Compliant
Model MU
Serial No. _____________
Activate
Activate
Your Warranty
Your Warranty
By Registering
By Registering
TODAY!!!
TODAY!!!
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydroSeeder T30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Finn HydroSeeder T30

Summary of Contents for Finn HydroSeeder T30

  • Page 1 Activate Activate Your Warranty Your Warranty By Registering By Registering TODAY!!! TODAY!!! 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 ® T30 / T30D HydroSeeder CE-Compliant Operator Instructions and Parts Manual Model MU Serial No.
  • Page 2 FOR OFFICE USE ONLY DATE UPDATE DESCRIPTION CODE 03/10/17 Initial release; clump assembly modification. MU0310 09/20/17 Revision A: Safety Section update MU0920 11/10/17 Revision B: Correct part number for battery (International AGM Battery); MU1110 Added Hose Protector and Swivel Adapter Fitting...
  • Page 3 Labor hours must coincide with the published “Labor Schedule” or estimate approved by the Finn Warranty Administrator. Once work is done, a Finn Warranty Claim Form must be fi lled out and emailed along with any related receipts or invoices to the Warranty Administrator. We ask that this is done ASAP after work is completed.

  • Page 5: Table Of Contents

    Clump Assembly ........... . 26 Continued to next page. ® Hydroseeder is a registered trademark of the Finn Corporation...
  • Page 6 INDEX CONTINUED Hydraulic System ........... 27 Pump Maintenance .

  • Page 7: Safety First

    SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. The first five pages of this manual are a summary of the main safety aspects associated with this unit.

  • Page 8: Hydroseeder ® Safety Summary Section

    Practice all other usual and customary safe working precautions. Above all, remember that safety is up to you. ® The FINN HydroSeeder is designed to mix and apply water, seed, fertilizer, agricultural lime, and hydraulic mulch to the prepared seedbed. The resultant slurry from mixing one or more of the above materials may react, causing harmful or deadly gasses within the tank.
  • Page 9 6. Operator(s) of equipment should 3. Recirculation valve must be open and material never ride on the machine at flowing back into the tank when using the remote speeds of greater than 5 mph valve. A closed or plugged recirculation line will (8 km/h).
  • Page 10 8. It is recommended that only authorized, genuine (29 CFR 1910.147). FINN replacement parts be used on the machine. 9. Do not use ether cold start fluid, if engine is equipped with glow plug-type preheater, or other Provide continuous ventilation intake manifold type preheater.
  • Page 11 COMMON SAFETY DECALS Hazard / Electrical Hearing Attention Shock Hazard Hazard Arc Flash Hazard or Electrocution Fire Hazard Explosion Hazard Hazard Body Electrostatic Fumes / Dust Entanglement Discharge Hazard Hazard Hazard Electrostatic Pinch Point / Burn Hazard Sensitive Area Entanglement Hazard Hazard Carbon...
  • Page 12 COMMON SAFETY DECALS Vision Heavy Object Skin Puncture Protection Hazard Hazard Required Hearing Hot Surface Splash / Spray Protection Hazard Hazard Required Vision, Hearing Loose Clothing Stumble and Head Entanglement Hazard Protection Hazard Required Breathing, Pinch Point / Vision, Hearing Moving Belt Trip Hazard and Head...
  • Page 13 COMMON SAFETY DECALS Do Not Ride Do Not Do Not on Moving Remove Obstruct Vehicle Guards or Block Do Not Spray Do Not Do Not Touch Power Lines Pressure Wash ADDITIONAL SAFETY DECALS...

  • Page 14: Definition Of Hydroseeding

    OPERATION AND MAINTENANCE. ® MANUAL FOR FINN T30 HYDROSEEDER This manual gives you step-by-step instructions for the operation and maintenance of the FINN ® T30 HydroSeeder . For best results and to ensure longer life of the equipment, please follow the instructions carefully.

  • Page 15: Mounting The Hydroseeder

    ® MOUNTING THE HYDROSEEDER ® When mounting the HydroSeeder to a truck or trailer, follow the acceptable mounting method below. ® Bolt the HydroSeeder directly to the truck or trailer bed. Installer must ensure that the bed, as ® well as the bed-to-truck and HydroSeeder -to-bed connections are adequate for the maximum weights that are shown in the CARRIER VEHICLE REQUIREMENTS section.

  • Page 16: Pre-Start Check

    PRESSURE DISK 2. Remove cap and fill cap with sodium- (water soluble) base GREASE grease (FINN part number 000698). DO NOT use lithium- base (chassis lube) grease. 3. Replace cap. 4. Turn thumb nut counterclockwise until thumb nut is at the top of the stem.

  • Page 17: Valve Operation

    EQUIPMENT CHECK (CONTINUED) When thumb nut has moved down to within 1/2 in. (1.25 cm) of touching the cap, re-service the automatic pressure lubricator. 10. Check and clean the nozzles and hoses of any obstructions or foreign materials. 11. Check pump discharge, recirculation, and remote valve handles for free movement. VALVE OPERATION Never engage (turn on) slurry pump clutch when recirculation valve and either the pump discharge or remote valve is closed.

  • Page 18: Control Box

    CONTROL BOX ® The FINN T30 HydroSeeder control box is the operation point for the unit. The control box and corresponding control box icons are illustrated below. P/N 085362 Figure 3 – Gasoline Engine Unit Control Box RUN Symbol Hour Meter Symbol...
  • Page 19 CONTROL BOX (CONTINUED) P/N 085360 Figure 4 – Diesel Engine Unit Control Box Hour Meter Symbol ON Symbol This gauge will keep track of how many Toggle switch flipped up to the ON hours the unit has operated. position to activate components. Clutch Symbol OFF Symbol This orange symbol on the control panel...

  • Page 20: Starting Procedure

    The following tables show loading versus coverage rates for the FINN T30. Table A shows rates for one-step applications. The coverage area is determined by the fiber mulch capacity of ®...
  • Page 21 TABLE A USING SEED, FERTILIZER, AND MULCH Unit Amount of Material in Tank in pounds (kilograms) Coverage Area Seed Fertilizer Mulch sq. ft. (sq. m) 28 (13) 32 (15) 120 (54) 3,485 (324) Table is based on 1,500 lbs. (680 kgs) of mulch, 400 lbs. (181 kgs) of fertilizer, and 345 lbs. (156 kgs) of seed at 8 lbs.

  • Page 22: Tank Capacity Chart

    TANK CAPACITY CHART Inches (centimeters) Inches (centimeters) Gallons (Liters) from Top from Bottom (1136) 6.25 (15.9) 32.75 (83.2) (1041) 8.75 (22.2) 30.25 (76.8) (946) 11.0 (27.9) 28.0 (71.1) (852) 13.5 (34.3) 25.5 (64.8) (757) 16.0 (40.6) 23.0 (58.4) (662) 18.25 (46.4) 20.75 (52.7) (568) 20.5 (52.1)
  • Page 23 LOADING PROCEDURE (CONTINUED) 4. Piping System Cleanout Procedure (Purging Line) [Continued]: D. With the engine at low idle, turn on the pump clutch by flipping the clutch toggle switch [with the orange icon ( )] to the ON ( ) position (all the way up). The switch will automatically center itself, which is the ON position.

  • Page 24: Loading And Mixing Bfm, Fgm, Smm And Other Viscous Slurries

    LOADING AND MIXING BFM, FGM, SMM AND OTHER HIGHLY VISCOUS SLURRIES 1. With clutch disengaged (turned off), agitator control in the NEUTRAL position and hydraulic system off, start engine and allow it to warm up. See STARTING PROCEDURE. 2. After engine has warmed up, turn on the hydraulics system by flipping the hydraulics toggle switch [with the blue icon ( )] to the ON ( ) position (all the way up).
  • Page 25 LOADING AND MIXING BFM, FGM, SMM AND OTHER HIGHLY VISCOUS SLURRIES (CONTINUED) 7. Start loading dry material, loading the lightest materials first. Agitator control should be in full REVERSE for mixing. Seed - Cut open the seed bag and dump contents into slurry tank. (When using inoculant, add it in the tank along with the seed.) When using quick-swelling seeds, load them just prior to application.

  • Page 26: Prior To Application

    PRIOR TO APPLICATION 1. Operator should familiarize themselves with the area to be seeded and develop a plan to ensure uniform application. 2. Develop a plan for communication between operator and driver of the carrying or towing vehicle to signal for start, stop, turn, etc. through the use of the signal horn. 3.

  • Page 27: Application Of Slurry

    APPLICATION OF SLURRY I. GENERAL APPLICATION TECHNIQUES Do not spray toward power lines, transformers or other high voltage conductors. Failure to comply will result in death or serious injury. The driver of the carrying vehicle should remain alert for hazards to the operator, such as low power lines, hanging branches, etc.

  • Page 28: Procedure When Using Hoses

    APPLICATION OF SLURRY (CONTINUED) II. PROCEDURES WHEN USING HOSES Always pump clear water through hose before pumping mulch. If the inside hose liner is dry, it will dewater the mulch, causing the hose to plug. DISCHARGE THROUGH HOSE OR HOSE REEL WITH REMOTE VALVE 1.

  • Page 29: Cleaning And Maintenance

    CLEANING AND MAINTENANCE DAILY ® 1. Cleaning the HydroSeeder A. Fill slurry tank to center of agitator shaft with clear water. B. Move agitator lever to full speed (forward or reverse) to flush off inside of tank top and walls. C.

  • Page 30: Seasonal And Winter Storage Maintenance

    CLEANING AND MAINTENANCE (CONTINUED) SEASONAL AND WINTER STORAGE MAINTENANCE 1. Drain slurry tank of all water prior to storage, and leave the drain plugs uninstalled. 2. Park unit in suitable location and chock wheels to prevent inadvertent movement. 3. If possible, cover machine with tarp or park inside of an enclosure. ®...

  • Page 31: Lubrication And Fluids Chart

      Weekly (40 Hours) Motor Oil (See Engine   Seasonally (400 Hours)  Manual Recommendations) Hydraulic Oil, Finn Vulhydra or ISO Grade 46    See Engine Manual Gasoline FLUID CAPACITIES Fuel - 6.6 gallons (25 L)

  • Page 32: Clump Assembly

    Casing Bearing Pump Frame Bearing Bolt Casing Drain Plug Bearing Washer Coupling Sleeve Frame Bearing NOTE: Ensure hub counter-bore is flush with the end of shaft. NOTE: See parts manual for FINN part number. 12LW Figure 7 – Clump Assembly Components...

  • Page 33: Hydraulic System

    The hydraulic oil filter must be replaced on schedule with a 5 absolute micron filter (FINN part number 023914). The hydraulic system relief is factory-set at 2,250 psi (15,513 kPa).
  • Page 34 PUMP MAINTENANCE (CONTINUED) B. IMPELLER CLEARANCE – TO BRING THE PUMP BACK TO PROPER TOLERANCE, PROCEED AS FOLLOWS: Pipe Here Wrench 1. Loosen four bolts (1B) and push pump suction cover (1) into pump casing (5) until pump suction cover hits the pump impeller (3).

  • Page 35: Troubleshooting Your Hydroseeder

    PUMP MAINTENANCE (CONTINUED) 3. Install the seal spring on the hub of the impeller. After coating the threads on the pump shaft with an antiseize compound, install the impeller, seating it securely. 4. Utilizing the O-ring (2), reinstall pump suction cover using eight bolts (5B). At this time, check to see that the pump runs freely.
  • Page 36 ® TROUBLESHOOTING YOUR HYDROSEEDER (CONTINUED) B. If the recirculation system is not working: 1. Disengage (turn off) the pump clutch by flipping the clutch toggle switch [with the orange icon ( )] to the OFF ( ) position (all the way down).and shut down the engine.

  • Page 37: Leaks

    ® TROUBLESHOOTING YOUR HYDROSEEDER Problem Probable Causes Suggested Solutions LEAKS: Tank Bearing Lack of lubrication – seal worn Replace seal and follow lube schedule. Bolts not tightened Tighten uniformly to 25 lb–ft (34 N•m). Pressure Pipe Clamps Rubber seal cracked, pinched, torn Replace, always grease seal or missing.

  • Page 38: Valve

    ® TROUBLESHOOTING YOUR HYDROSEEDER Problem Probable Causes Suggested Solutions VALVE: Valve stuck Frozen Thaw out ice and lubricate; leave in open position during storage. Constant plugging during operation Foreign material in slurry Drain and clean out tank; check storage for foreign materials.
  • Page 39 ® T30 / T30D HydroSeeder CE-Compliant Parts Manual Model MU WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 40 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 41: Suction, Discharge And Recirculation

    SUCTION, DISCHARGE AND RECIRCULATION PIPING Ref. No. Part Number Description No. Req’d 080713 Clump Assembly (Diesel Engine Only) 085160 Clump Assembly (Gasoline Engine Only) 080366 Pipe Clamp 002439 Clamp Gasket 1 per 002868 90° Grooved Elbow 085210 Suction Pipe Weldment 008469 Discharge Flange Gasket 085178-01...

  • Page 42: Diesel Clump Assembly

    DIESEL CLUMP ASSEMBLY WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 43 DIESEL CLUMP ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  080489 Suction Cover  0X0720 Suction Cover Bolt  000Y07 Suction Cover Nut  080499 O-Ring  080488 Impeller  080485 Mechanical Seal  080487 Pump Casing  0X0720 Suction Cover Bolt ...

  • Page 44: Gasoline Clump Assembly

    GASOLINE CLUMP ASSEMBLY WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 45 GASOLINE CLUMP ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  080489 Suction Cover  0X0720 Suction Cover Bolt  000Y07 Suction Cover Nut  080499 O-Ring  085159 Impeller  080485 Mechanical Seal  080487 Pump Casing  0X0720 Suction Cover Bolt ...
  • Page 46 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 47: Hydraulic System

    HYDRAULIC SYSTEM Ref. No. Ref. Part Number Description No. Req’d  012044 Pressure Gauge  012874 Straight Male Adapter  022301 Street Tee  023186 Straight Male Adapter  023616 Straight Male Adapter  023911 Straight Female Adapter  055230 Male 90°...
  • Page 48 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 49: Hose Reel Assembly

    HOSE REEL ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  080801-02 Inlet Pipe  080801-14 Seal and Ring Assembly  080801-07 Snap Ring  080801-03 Bearing Housing Sub-Assembly  080801-10 Sprocket  080801-12 Chain Assembly  080801-08 O-Ring ...

  • Page 50: Diesel Hydraulic Pump Drive Assembly

    DIESEL HYDRAULIC PUMP DRIVE ASSEMBLY Ref. No. Part Number Description No. Req’d 0X0616 3/8-16 x 1 in. Lg. Hex Head Bolt 080642 Hydraulic Pump F30-0008 Diesel Hydraulic Pump Coupling Guard 080807 Coupling Half 5/8 in. Bore 080809 Coupling Insert 080808 Coupling Half 1 in.

  • Page 51: Gasoline Hydraulic Pump Drive Assembly

    GASOLINE HYDRAULIC PUMP DRIVE ASSEMBLY Ref. No. Part Number Description No. Req’d 0X0616 3/8-16 x 1 in. Lg. Hex Head Bolt 080642 Hydraulic Pump F30-0001 Hydraulic Pump Coupling Guard 080807 Coupling Half 5/8 in. Bore 080809 Coupling Insert 080808 Coupling Half 1 in. Bore 190123-24 1/4 in.
  • Page 52 DISCHARGE HOSE COMPONENTS Ref. No. Part Number Description No. Req’d 085246 Electric Hose Reel Assembly 080261 Female Nyglass Coupler 003308-10 1-1/4 in. Hose x 100 ft. A2073-001 Hose Protector 085252 Lead-In Hose 080378 Male Nyglass Coupler F60-0035 Hose Reel Button Box Mount 080757 Hose Reel Button Box NOT SHOWN...

  • Page 53: Hydraulic Agitator Drive Assembly

    HYDRAULIC AGITATOR DRIVE ASSEMBLY Ref. No. Part Number Description No. Req’d 0X0824 1/2-13 x 1-1/2 in. Lg. Hex Hd. Cap Screw 080482 Hydraulic Motor F60-0022-02 Agitator Coupling Guard 00Y08L 1/2-13 Locknut 085128-01 Torque Arrestor Plate 080523 2-Piece Rigid Coupling Assembly 022657 Worm Gear Clamp 085150...
  • Page 54 BEARING ASSEMBLY 1-1/2 in. (3.81 cm) Agitator Shaft NOTE: To tighten, turn nut not bolt. Through Back Side Torque to 25 ft. lbs. (275 kg/m). DO NOT OVER TORQUE! 1 Front (1F) 1 Rear (1R) Outside of Tank Wall NOTE: 085161-01 Rear Bearing Assembly 085161-02 Front Bearing Assembly (both include items #1 - 9) AGITATOR SHAFT ASSEMBLY...

  • Page 55: Agitator And Bearing Assembly

    AGITATOR AND BEARING ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  085162-02 Front Clamping Ring 1 per  085162-01 Rear Clamping Ring 1 per  007416 Shaft Seal 1 per  006975 Rubber Flangette Seal 1 per  007212 Flangette w/Groove 1 per...
  • Page 56 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 57 COMMOM LOOSE PARTS Ref. No. Part Number Description No. Req’d 085145 Hydraulic Reservoir F30-0008 Diesel Hydraulic Pump Coupling Guard F30-0001 Gasoline Hydraulic Pump Coupling Guard 004593 Drain Plug 035143 Fuel Tank 035144 Fuel Cap F30-0009 Fuel Tank Strap 002256-12AGM Battery 080223 Battery Case F30-0012...

  • Page 58: Gasoline Engine Parts

    GASOLINE ENGINE SPECIFIC PARTS Ref. No. Part Number Description No. Req’d 085262 Kohler Gasoline Engine KL4708303 Air Filter 080105 Fuel Filter KL1205001 Oil Filter KL2406817 Muffler 031421 Muffler Clamp 031420 Muffler Elbow NOT SHOWN 085142 Throttle Cable 080567 Choke Cable WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE...

  • Page 59: Diesel Engine Parts

    DIESEL ENGINE SPECIFIC PARTS Part Number Description No. Req'd 085250 Diesel Engine Complete Assembly KL21752730 Air Filter KL21752840 Oil Filter KL21752880 Fuel Filter 080115 Throttle Cable F30-0013 Key Switch Mount 085354 Rain Cap 085355 Rubber Reducer WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev.
  • Page 60 MOUNT THE RELAY MOUNT MICRO SUPPLIED WITH THE RELAYS FROM KD425 ENGINE HERE HARNESS HERE PANEL GROUND STUD WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 61: Control Box And Wiring (Diesel Powered Units)

    CONTROL BOX AND WIRING (DIESEL POWERED UNITS) Ref. No. Ref. Part Number Description No. Req’d  085344 Control Box  085345 Sub Panel  008793 Toggle Switch  080526 Toggle Switch Boot  080753 Potted Relay  007274 Hour Meter ...

  • Page 62: Wiring (Diesel Powered Units)

    WIRING SCHEMATIC (DIESEL POWERED UNITS) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 63 THIS PAGE LEFT BLANK INTENTIONALLY WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 64 MOUNT MICRO RELAYS FROM HARNESS HERE PANEL GROUND STUD WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 65: Control Box And Wiring (Gasoline Powered Units)

    CONTROL BOX AND WIRING (GASOLINE POWERED UNITS) Ref. No. Ref. Part Number Description No. Req’d  085344 Control Box  085345 Sub Panel  085362 Control Box Decal  008793 Toggle Switch  080526 Toggle Switch Boot  080753 Potted Relay ...

  • Page 66: Wiring (Gasoline Powered Units)

    WIRING SCHEMATIC (GASOLINE POWERED UNITS) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...
  • Page 67 THIS PAGE LEFT BLANK INTENTIONALLY WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev. B...

  • Page 68: Tool Kit

    Narrow Fan Nozzle 080260 Nyglass Adapter 160750 Reducer Bushing 004593 Drain Plug 006515 Coupler Gasket 012681A Finn Beige Aerosol Paint 080535 Remote Valve Assembly 012083 Full Port Ball Valve 080260 Male Nyglass Adapter 080261 Female Nyglass Coupler 160307 Close Nipple...

  • Page 69: Seal Repair Kits

    SEAL REPAIR KITS Part Number Description 023120 Seal Kit for Hydraulic Valve #080743 080615 Seal Kit for Hydraulic Motor #080482 080616 Seal Kit for Hydraulic Pump #080642 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev.
  • Page 70 14, 18, 30, 31 14, 28 1, 3, 5, 7, 10 27 or 36 22, 24 33 or 35 2, 4, 6, 7, 9, 12, 15 37, 39, 41 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev.
  • Page 71 DECALS Ref. No. Ref. Part Number Description No. Req’d  --------- Body Entanglement Hazard  --------- Cutting Fingers / Reach Hazard  --------- Eye Hazard  --------- Eye-Hearing Hazard  --------- Fall Off Edge Hazard  --------- Gears / Pinch Point Hazard ...
  • Page 72 14, 18, 30, 31 14, 28 1, 3, 5, 7, 10 27 or 36 22, 24 33 or 35 2, 4, 6, 7, 9, 12, 15 37, 39, 41 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T30/T30D CE MU1110 Rev.

  • Page 73: Decals

     --------- Throttle Decal (Rabbit Up)  --------- Hydroseeder Patent Decal  --------- Hose Reel Rewind Decal 031569 Finn Name Plate 085261 "Diesel" Decal (Deisel Powered Units Only) 012260 Maintain Decals Plate 031235 "Finn" Decal 085158 "T30 Hydroseeder" Decal ...
