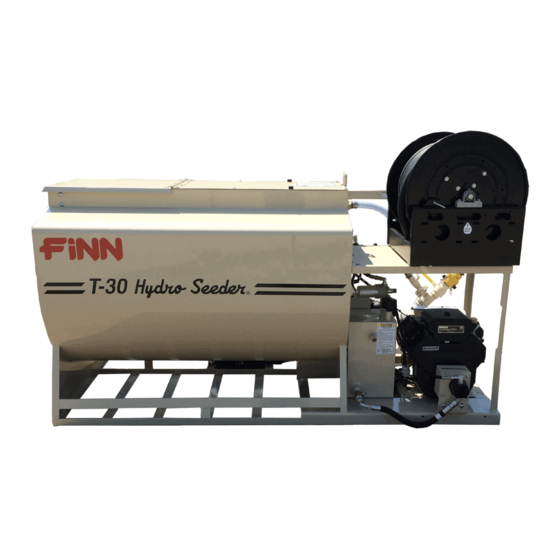

Finn HydroSeeder T30 Parts And Operator's Manual

Ce-compliant
Hide thumbs Also See for HydroSeeder T30:
Table of Contents

Advertisement

Quick Links

Activate
Your Warranty
By Registering
TODAY!!!
9281 LeSaint Drive • Fairfield, Ohio 45014
Phone (513) 874-2818 • Fax (513) 874-2914
T30 Diesel HydroSeeder
®
CE-Compliant
Parts and Operator's Manual
Model MS
Serial No.
LBT30-CE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydroSeeder T30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Finn HydroSeeder T30

Summary of Contents for Finn HydroSeeder T30

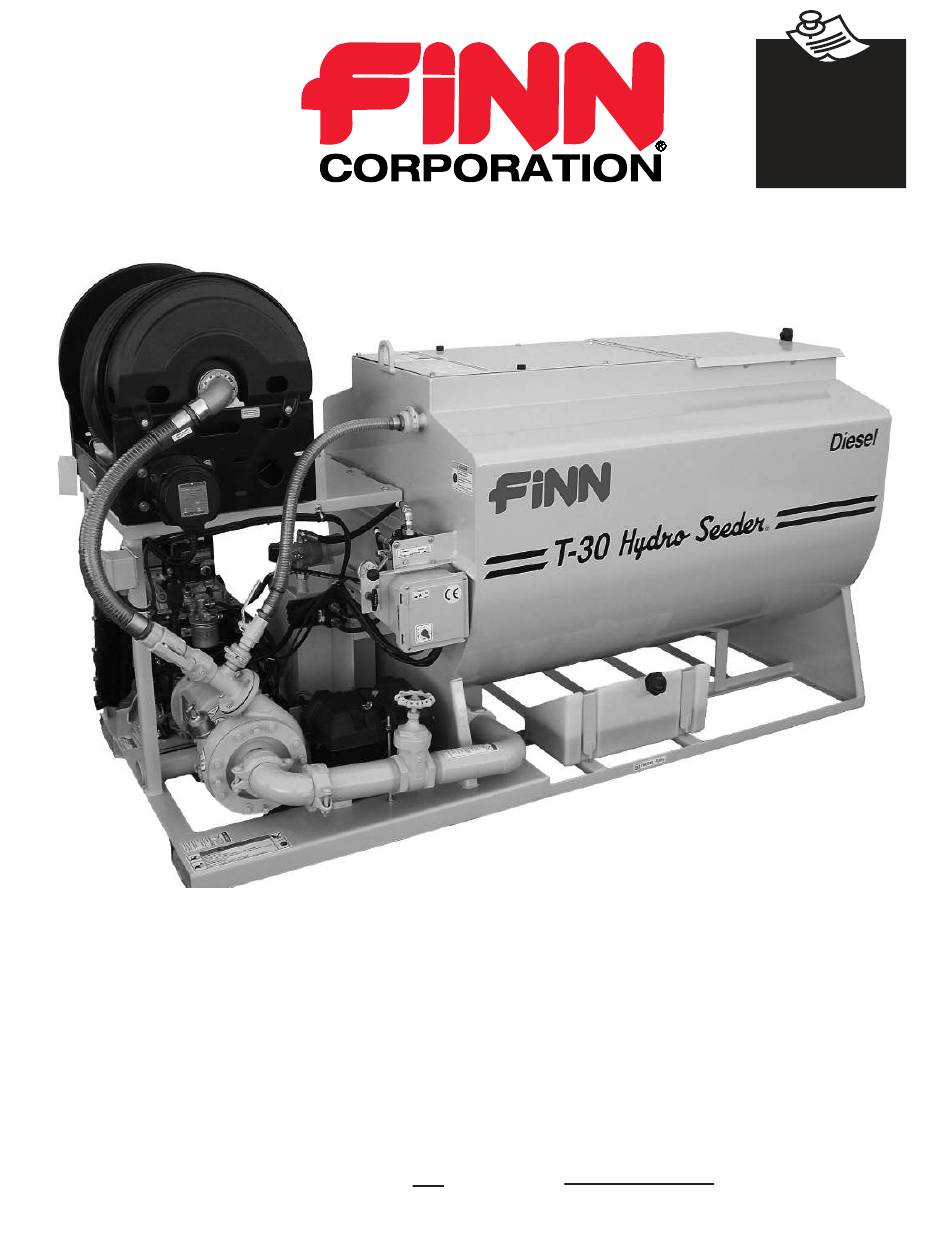

  • Page 1 Activate Your Warranty By Registering TODAY!!! 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 T30 Diesel HydroSeeder ® CE-Compliant Parts and Operator’s Manual Model MS Serial No. LBT30-CE...
  • Page 2 NOTES...
  • Page 3 IF FINN CORPORATION DOES NOT HAVE YOUR COMPLETED REGISTRATION FORM ON FILE, YOUR WARRANTY CLAIM WILL BE DENIED. Once your Finn equipment has been registered, your Finn Limited Warranty will be activated per the warranty statement on the other side of this notice.
  • Page 4 (except those referred to herein) that are manufactured any representation or promise on behalf of Finn Corporation or to by Finn to be free from defects in material and workmanship for a modify the terms or limitations of this warranty in any way.

  • Page 5: Table Of Contents

    Pump Maintenance ......... . 9 Finn Model T30-CE Technical Specifications..... . 10 Notes .
  • Page 6 NOTES...

  • Page 7: Safety First

    SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! Finn Corporation encourages you and your employees to familiarize yourselves with your new equipment and to stress safe operation. The first six pages of this manual are a summary of all the main safety aspects associated with this unit.

  • Page 8: Attachments

    OPERATION & MAINTENANCE MANUAL FOR THE CE-COMPLIANT ® FINN T30 HYDROSEEDER ATTACHMENTS (OPTIONAL): 1. Discharge hoses: Discharge hoses are available in 50 ft. (15 m) and 100 ft. (30 m) lengths up to a total of 150 ft. (45 m). Hose of a greater length may adversely affect the discharge distance, and the discharge time of the HydroSeeder ®...

  • Page 9: Valve Operation

    VALVE OPERATION: The base HydroSeeder ® is equipped with three (3) independently operated ball valves to control slurry flow (see Fig. 2). The first valve is the recirculation valve. An open recirculation valve allows flow back into the tank. The second valve is the pump discharge valve. An open pump discharge valve allows slurry to flow through the discharge hose.

  • Page 10: Starting Procedure

    The following tables show loading versus coverage rates for the Finn T30. Table A shows rates for “one step” applications. The coverage area is determined by the fiber mulch capacity of the HydroSeeder ® , and the rate at which it is applied.
  • Page 11 TABLE A USING SEED, FERTIlIzER AND MUlCh Unit Amount of Material in Tank (pounds(kilograms)) Covrage Area Mulch Seed Fertilizer Sq. Ft. (Sq. m.) 28 lbs (13 kg) 32 lbs (15 kg) 120 lbs (54 kg) 3,485 (324) Above Table is based on 1,500 lbs (680.39 kg) of mulch, 400 lbs (181.44 kg) of fertilizer and 345 lbs (159.49 kg) of seed (8 lbs (3.63 kg)/1,000 square feet (92.9 square meters)) per acre.

  • Page 12: Tank Capacity Chart

    TANK CAPACITY CHART: BOTTOM FIGURE 2 T-30 Gallons in. (cm) from in. (cm) from (liters) bottom (1136) 6.25 (15.9) 32.75 (83.2) (1041) 8.75 (22.2) 30.25 (76.8) (946) (27.9) (71.1) (852) 13.5 (34.3) 25.5 (64.8) (757) (40.6) (58.4) (662) 18.25 (46.4) 20.75 (52.7) (568)

  • Page 13: Discharge Nozzle Selection

    The hydraulic oil filter must be replaced on schedule with a 25 absolute micron filter - Finn part #021618. The hydraulic system relief is factory set at 2,250 psi.
  • Page 14 LUBRICATION AND FLUIDS CHART Ref. No. location lubricant Frequency Number Check Grease Level in Pressure Lubricator Daily Grease Agitator Shaft Bearings Daily Check Engine Oil Level Daily Change Engine Oil and Filter See Engine Manual Grease Pump Bearings Weekly Check Hydraulic Fluid Level Weekly Change Hydraulic Fluid and Filter Seasonally...

  • Page 15: Pump Maintenance

    Suction Cover Bolt Clutch Retainer Suction Cover Washer 8 Locking Bolt Radial Lip Seal Lock Washer Casing Bearing Clutch Bearing Bolt Clutch Spacer Bearing Washer Pump Frame Frame Bearing Casing Drain Plug NOTE: See parts manual for Finn part number...

  • Page 16: Finn Model T30-Ce Technical Specifications

    FINN MODEL T30-CE TECHNICAL SPECIFICATIONS 4´ 10¨ 3´ 11¨ HydroSeeder (119 cm) (119 cm) 4´ 1¨ 8´ (244 cm) (117 cm) OPERATING PARAMETERS: • AIR TEMPERATURE ...........+41°F to +104°F (+5°C to +40°C) • HUMIDITY ..............50% RH @ +104°F (+40°C) • ALTITUDE ..............Suitable for use @ 3,281´ (1,000 m) above mean sea level •...

  • Page 17: Notes

    NOTES...

  • Page 18: Notes

    NOTES...
  • Page 19 T30 Hydroseeder ® CE-COMPLIANT Parts Manual Model MS...
  • Page 20 NOTES...

  • Page 21: Pictorial Reference

    PICTORIAL REFERENCE Hose Reel Assembly Pages 20-21 Common Loose Parts Hydraulic Pump and Engine Hydraulic Agitator Drive Assembly Pages 28-29 Drive Assembly Page 24 Page 25 Control Box Suction, Discharge & Wiring Recirculation Piping Page 30 Clump Assembly Pages 16-17 Pages 18-19 Hydraulic System ............
  • Page 22 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...
  • Page 23 SUCTION, DISChARGE AND RECIRCUlATION PIPING Ref. No. Part Number Description No. Req'd 080713 Clump Assembly (See Pages 34-35 for parts breakdown) 080366 Pipe Clamp 002439 Clamp Gasket 1 per 002868 90° Grooved Elbow 085210 Suction Pipe Weldment 008469 Discharge Flange Gasket 080558-01 Discharge Flange Pipe 005083-07 Recirculation Nozzle 005156 Pipe Clamp 005183...
  • Page 24 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...
  • Page 25 CLUMP ASSEMBLY Ref. No Part Number Description No. Req'd 080713 Clump Assembly 080489 Suction Cover 0X0720 Suction Cover Bolt 000Y07 Suction Cover Nut 080499 O-Ring 080488 Impeller 080485 Mechanical Seal 080487 Pump Casing 0X0720 Suction Cover Bolt 000W07 Suction Cover Washer 080493 Radial Lip Seal 080498 Casing Bearing 0X0740...
  • Page 26 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...
  • Page 27 HOSE REEL ASSEMBLY Ref. No Part Number Description No. Req'd 085246 Electric Hose Reel Assembly RC261700 Inlet Pipe RC600947-1 Seal and Rign Assembly RCS140-45 Snap Ring RC602240 Bearing Housing Sub-Assembly RC316248-3.25-35 Sprocket RC366406P-64 Chain Assembly RC262192 S.J. Spindle RCS21-224 O-Ring RC261694-2 Gooseneck RC390798 RHP Ball Bearing RC260583 Electric Motor...
  • Page 28 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...

  • Page 29: Hydraulic System

    HYDRAULIC SYSTEM Ref. No. Part Number Description No. Req'd 85247D T30 Diesel Hyd. Hose and Fitting Kit 085140 Filler Breather Cap 004618 Suction Strainer 023186 Nipple 020658 Ball Valve 023616 Straight Male Adapter 085260 Suction Hose 085157 45° Male Adapter 080642 Hydraulic Pump 055309 Male 90°...

  • Page 30: Hydraulic Pump Drive Assembly

    HYDRAULIC PUMP DRIVE ASSEMBLY Ref. No. Part Number Description No. Req'd 0X0616 3/8-16 x 1" Lg. Hex Hd. Bolt 080642 Hydraulic Pump F30-0008 Diesel Hydraulic Pump Coupling Guard 080807 Coupling Half 5/8" Bore 080809 Coupling Insert 080808 Coupling Half 1" Bore 190123-24 1/4" Sq. Key x 1-1/2" Lg. 080642-A Pump Key 085133...

  • Page 31: Hydraulic Agitator Drive Assembly

    HYDRAULIC AGITATOR DRIVE ASSEMBLY Ref. No. Part Number Description No. Req'd 0X0824 1/2-13 x 1-1/2" Lg. Hex Hd. Cap Screw 080482 Hydraulic Motor F60-0022-02 Agitator Coupling Guard 00Y08L 1/2-13 Locknut 085128-01 Torque Arrestor Plate 080523 2-Piece Rigid Coupling Assembly 080582 Worm Gear Clamp 085150 Rubber Torque Arrestor Pad WhEN ORDERING PARTS, BE SURE TO STATE...
  • Page 32 BEARING ASSEMBLY NOTE: To tighten, Turn nut not bolt. Torque to 25 ft lbs (275 kg/m) 1-1/2" (3.81 cm) DO NOT OVER TORQUE Agitator Shaft Through Back Side NOTE: 085161-01 Rear Bearing Assembly 085161-02 Front Bearing Assembly (both include items #1 - 9) Outside Of Tank Wall...

  • Page 33: Agitator And Bearing Assembly

    AGITATOR AND BEARING ASSEMBLY Ref. No. Part Number Description No. Req'd 085161-01 Rear Bearing Assembly (Includes #1 thru #9) 085161-02 Front Bearing Assembly (Includes #1 thru #9) 085162-01 Rear Clamping Ring 1 per 085162-02 Rear Clamping Ring 1 per 007416 Shaft Seal 1 per 006975 Rubber Flangette Seal 1 per...
  • Page 34 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...

  • Page 35: Common Loose Parts & Engine

    COMMON LOOSE PARTS & ENGINE Ref. No. Part Number Description No. Req'd 085145 Hydraulic Reservoir F30-0008 Diesel Hydraulic Pump Coupling Guard 004593 Drain Plug 035123 Fuel Tank F30-0009 Fuel Tank Strap 002256-12 Battery 080223 Battery Case F30-0012 Battery Disconnect Mount 085152 Rubber Stud Mount 085127 Tank Top 085132-01...
  • Page 36 Main Enclosure 12 VDC Hose Reel BATTERY Contactor NOTE Engine Relay Comes with the Engine Battery Quick Engine Disconnect Relay NOTE Circuit Breaker Replace Screws With 10-32 x " Circuit Breaker Green Hose Reel Push Button Enclosure Pump STARTER Clutch Switch Engine Block Ground...
  • Page 37 Narrow Ribbon Nozzle 080260 Nyglass Adapter 160750 Reducer Bushing 004593 Drain Plug 006515 Coupler Gasket 012681T Finn Beige Touch-Up Paint 012681A Finn Beige Aerosol Paint 080535 Remote Valve Assembly 012083 Full Port Ball Valve 080260 Male Nyglass Adapter 080261 Female Nyglass Coupler...
  • Page 38 Hydro Seeder 17, 18 WhEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...

  • Page 39: Decals

    Decal "CAUTION! Wear Eye Protection..." 012686 Decal "DANGER! Do Not Enter Tank" 085078 Decal "Operating Instructions" 080442 Decal "Throttle" 012260 FINN Maintain Decal Plate 085137 Decal "Pump On/Off" 013184 Decal "Sound Level Exceeds..." 008286-02 Decal "Agitator Speed" 023391 Decal "Diesel"...
