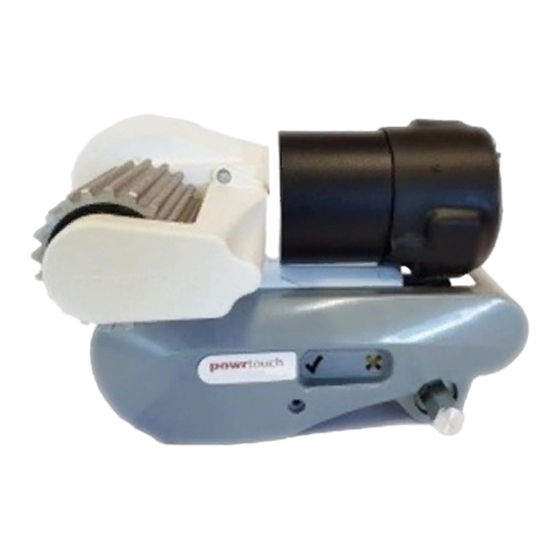

Truma Powrtouch Freedom RV Instructions Manual

Truma Powrtouch Freedom RV Instructions Manual

Remote control rv mover family freedom 4-pole single axle auto

Advertisement

Quick Links

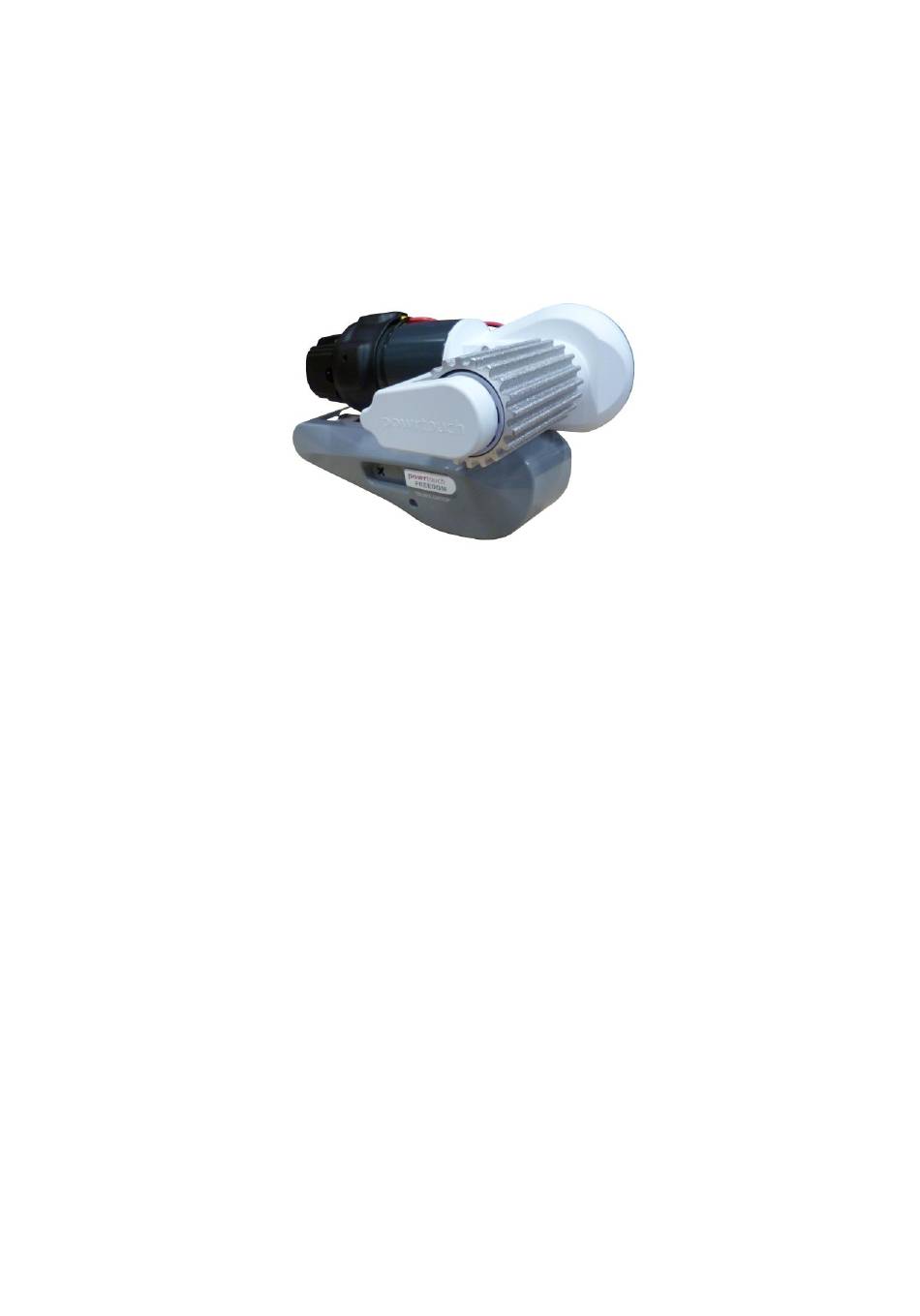

POWRTOUCH RV MOVERS
REMOTE CONTROL RV MOVER FAMILY
FREEDOM 4-POLE SINGLE AXLE AUTO
INSTRUCTIONS for the Installation, Operation, Use,
Safety & Maintenance of the Powrtouch Freedom 4-Pole Auto
YOUR PROOF OF PURCHASE WILL STATE YOUR UNIQUE POWRTOUCH FREEDOM
SERIAL NUMBERS. PLEASE WRITE THEM ON THE FRONT OF THIS DOCUMENT FOR
YOUR CONVENIENCE.
REGISTER YOUR INFORMATION WITH TRUMA
BEFORE CONTACTING TRUMA WITH A FAULT OR WARRANTY ENQUIRY PLEASE PAY
SPECIAL ATTENTION TO SECTION 4 OF THIS DOCUMENT.
CUSTOMER NAME:.........................................................................................
POWRTOUCH FREEDOM SERIAL No: 4FRA........................................................
ELECTRONICS SERIAL No: CDFM....................................................................
Truma Group
Powrtouch - A Truma Brand
2000 Park Lane, Dove Valley Park, Foston, South Derbyshire, DE65 5BG United Kingdom
WEBSITE: www.powrtouch.com
EMAIL: info@powrwheel.com
TWITTER: www.twitter.com/powrtouchuk
TELEPHONE: 1-855-558-7862 ext 1 – for Service Enquiries
Issue 1 – January 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powrtouch Freedom RV and is the answer not in the manual?

Questions and answers

Summary of Contents for Truma Powrtouch Freedom RV

  • Page 1 SERIAL NUMBERS. PLEASE WRITE THEM ON THE FRONT OF THIS DOCUMENT FOR YOUR CONVENIENCE. REGISTER YOUR INFORMATION WITH TRUMA BEFORE CONTACTING TRUMA WITH A FAULT OR WARRANTY ENQUIRY PLEASE PAY SPECIAL ATTENTION TO SECTION 4 OF THIS DOCUMENT. CUSTOMER NAME:……………………………………………………………………………..
  • Page 2: Table Of Contents

    CONTENTS SECTION 1 – USING YOUR POWRTOUCH FREEDOM SAFELY Safety Checks Required Prior to Using Your Powrtouch Freedom ⚠ Emergency Switch Off/Stop Safety and Technical Awareness SECTION 2 – OPERATION OF YOUR POWRTOUCH FREEDOM Powrtouch Freedom Operation Switching on the Powrtouch Freedom Switching on the Handset Handset Battery Replacement Engagement of the Rollers onto the Tires...
  • Page 3: Section 1 - Using Your Powrtouch Freedom Safely

    Failure to comply with these instructions could invalidate your Powrtouch guarantee. If you are in any doubt about the assembly or operation of the product consult Truma, for which contact details are shown on the front cover.
  • Page 4 NO circumstance should any other wiring or cabling be used unless supplied by Truma or written approval is given for their use. If cutting motor cables (not recommended) these should be kept of equal length, no cable joining system should be used to lengthen them.
  • Page 5: Section 2 - Operation Of Your Powrtouch Freedom

    SECTION 2 – OPERATION OF YOUR POWRTOUCH FREEDOM 2.1 POWRTOUCH FREEDOM OPERATION: Carry out the Powrtouch Freedom pre-movement safety checks as Section 1 Paragraph 1.1; also ensure that the RV is safe to move and that there are no obstructions to prevent the engagement of the drive rollers to the RV tires.
  • Page 6: Handset Battery Replacement

    2.4 HANDSET BATTERY REPLACEMENT To replace the handset battery the first step is to remove the small cross head screw on the back of the handset. When the small cross head screw is removed the battery box cover can be taken off providing access to the battery.
  • Page 7: Moving The Rv (Handset Operation)

    4. Always check that ALL rollers are fully engaged on to the tires of the RV before removing the handbrake. This can be done visually by checking the yellow Roller Position Indicator is in the correct position as shown below. 5.
  • Page 8: Decreasing And Increasing Speed

    2.7 DECREASING AND INCREASING SPEED When the handset is first switched on the settings indicator window will always show an illuminated green LED to the extreme right-hand side of the window and this is the default position of maximum speed (100%). The speed can be decreased by pressing the ‘Speed Decrease’...
  • Page 9 1. Switch off the isolation switch by turning the key anti-clockwise and removing. 2. Remove the end plug (shown in the picture below). 3. Insert the manual removal tool (T Bar) and turn 30 times anti-clockwise. 4. If in doubt consult Truma. Issue 1 – January 2020 Page 7...
  • Page 10: Mapping (Tuning/Coding) Instructions - Given For Information Only

    2.10 SWITCHING OFF THE UNIT The handset does not need to be turned off manually, except in the case of an emergency (See Section 1 Paragraph 1.2). If the handset is left unused for 3 mins approximately it will automatically turn itself off. However, once you have finished using the Powrtouch Freedom RV mover, ensure the unit is switched OFF with the isolation switch and the key is removed.
  • Page 11: Section 3 - Fitting Instructions

    When unpacking the box there is a checklist of the components for the mover. Please check that all parts have been received before commencing the installation work (See Fig 2 showing component parts). If in doubt, please contact Truma. Contact details are on the front page of this document.
  • Page 12: Tooling & Equipment Required

    3.2 TOOLING AND EQUIPMENT REQUIRED To install the Powrtouch the following tooling and equipment will be required (not supplied): • 10mm Socket & Ring Spanner • 13mm Socket & Ring Spanner • 17mm Socket & Ring Spanner • Power Drill with 3mm & 10 mm Drill Bits suitable for wood •...
  • Page 13: Mechanical Assembly

    3.5 MECHANICAL ASSEMBLY ⚠️ For safety reasons it is recommended that the fitting of the Powrtouch Freedom should be undertaken on a flat hard surface. Before raising the RV, ensure the handbrake is on and then it can be raised as required (using trolley jack and/or axle stands) and secured in position using the RV steadying legs with supporting blocks and wheel wedges as necessary;...
  • Page 14: Electrical Assembly

    3.6 ELECTRICAL ASSEMBLY ⚠️ - PLEASE ENSURE THAT THE BATTERY AND MAINS LEAD ARE BOTH DISCONNECTED FROM THE RV BEFORE COMMENCING INSTALLATION ℹ️ The terms right hand and left hand referred to on the electronics control box are determined by standing in front of the RV (at the hitch) facing the RV for a mover fitted in front of the wheels.
  • Page 15 Issue 1 – January 2020 Page 13...
  • Page 16 Issue 1 – January 2020 Page 14...
  • Page 17 Issue 1 – January 2020 Page 15...
  • Page 18: Connecting To The Rv Battery

    Any excess motor cable should then be coiled up (secure with cable ties as necessary) in a convenient position inside the RV. When coiling the motor cables please ensure that the coils are kept as far away from the electronics box and aerial as possible. It is recommended that motor cables should NOT be cut to ensure that: 1) They are of equal length 2) Should the Powrtouch Freedom be removed and refitted to a new or different RV...
  • Page 19 RV should now be sealed with the silicon sealant to prevent ingress of damp or water. The Powrtouch Freedom side covers can now be fitted by securely pushing into place. If you are unsure about the installation consult Truma Issue 1 – January 2020 Page 17...
  • Page 20: Section 4 - Looking After Your Powrtouch Freedom

    SECTION 4 – LOOKING AFTER YOUR POWRTOUCH 4.1 CLEANING THE POWRTOUCH FREEDOM It is recommended that after your Powrtouch Freedom has been fitted the mechanical assembly would benefit from being sprayed with a light coating of wax oil (this could be repeated on an annual basis).
  • Page 21: Section 5 - Warranty & Fault Finding

    Product was properly installed according to the installation instructions provided and in compliance with applicable codes. During the warranty period, Truma will repair or replace, at its own discretion and costs, the defective Product or parts or components of such Product reported to Truma and which Truma determines was defective due to a warranty defect.
  • Page 22: Electronics Control Box (Ecb) - Led Status

    Before you call Truma to report a fault you should have the serial number of your Powrtouch available, as you will be asked for this information. It allows a Truma Engineer to locate the full manufacturing status of the mover and be able to advise you accordingly.
  • Page 23 APPROX CHARGE VOLTMETER READING HYDROMETER READING STATE (No Load) 100% 12.7 v or over 1.27 12.5 v 1.23 12.4 v 1.20 12.2 v 1.17 Discharged 12.0 v 1.10 ℹ️ Voltage readings should be taken at least 4 hours (and could be up to 12 hours depending upon charging rates) after recharging to obtain an accurate reading.
  • Page 24 Also check the tire treads are not badly worn and the tire pressures are correct. IF IN DOUBT CONSULT TRUMA ℹ️ ADDITIONAL INFORMATION TO NOTE 1. To the best of our knowledge these instructions were accurate at the date of publication.
