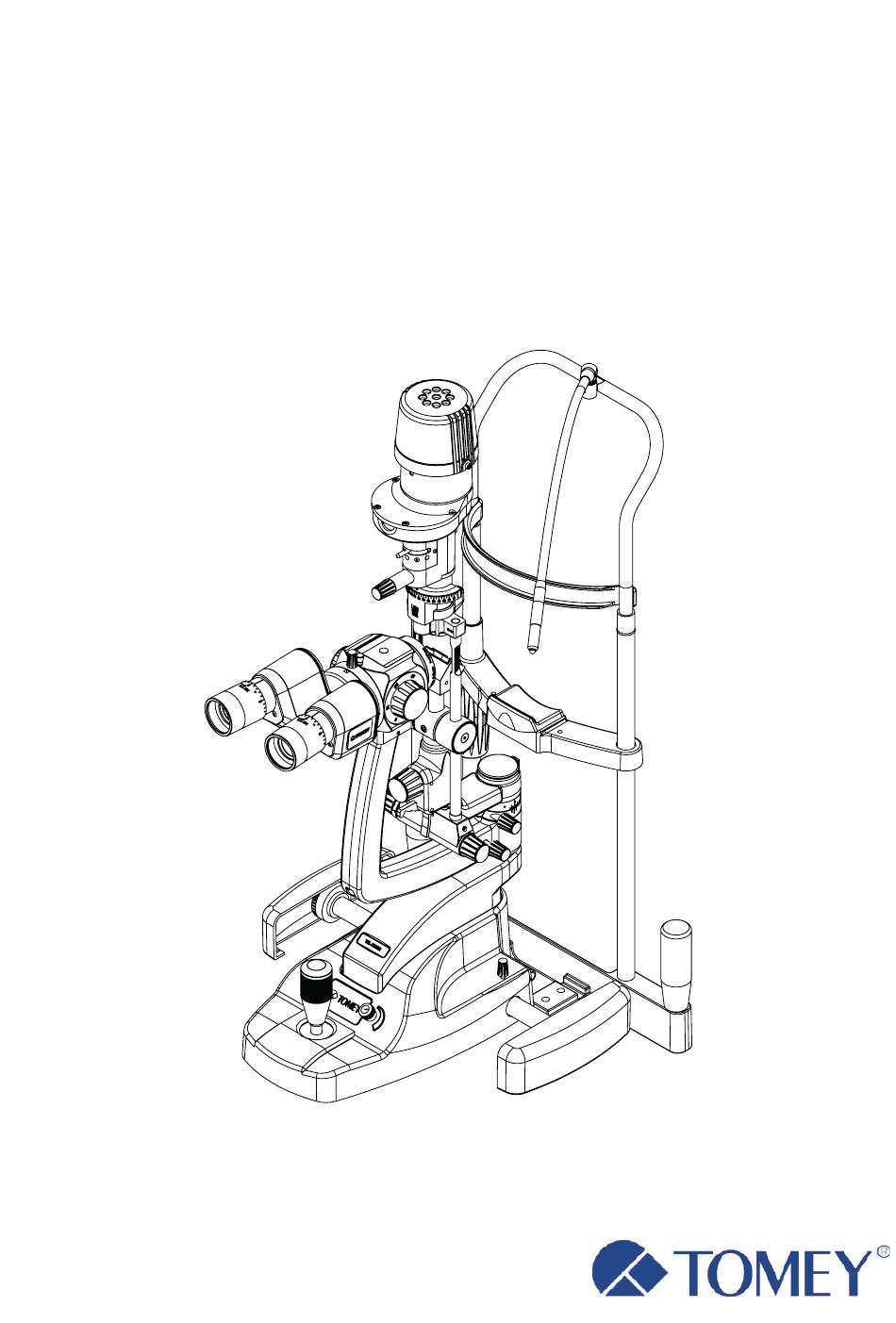

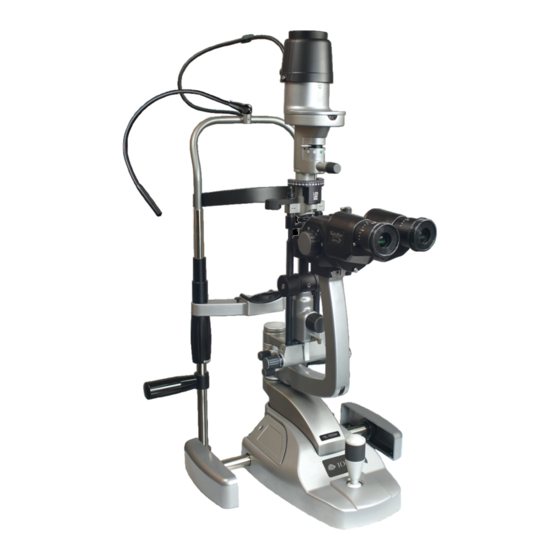

- Page 1 TSL-7000H SLIT LAMP OPERATOR MANUAL H Series...
-
Page 2: Table Of Contents
SLIT LAMP TSL-7000H by TOMEY CONTENTS INDICATIONS FOR USE ..................3 SAFETY ......................... 3 PHOTOTOXICITY ..........................3 WARNINGS AND CAUTIONS ......................4 CONTRAINDICATION ........................5 CLEANING AND DISINFECTION INSTRUCTIONS ............ 5 NAMES OF CONTROLS AND COMPONENTS ............6 ASSEMBLY ......................7 ILLUMINATION TOWER ASSEMBLY PROCEDURE ................8 CABLE ATTACHMENT PROCEDURE ....................9... -
Page 3: Indications For Use
Brief description of the instrument Keep dry Conformité Européene This Tomey Slit Lamp can either be mounted onto a custom table top supplied by Tomey or can be mounted on a third parties table top (refraction unit) by suitably trained technicians. Fragile Type B applied part The Tomey Slit Lamp consists of 4 assemblies;... -
Page 4: Warnings And Cautions
Please note that the proper and safe functioning of our instruments is only guaranteed if both the instruments and their accessories are exclusively from Tomey GmbH. The use of other • The owner of the instrument is responsible for training personnel in its correct use. -
Page 5: Names Of Controls And Components
22. Eyepiece assembly securing knob Your Tomey Slit Lamp has been designed to fi t on to an electric insulated medical table base or on to an electric insulated and fi re resistant medical table top, e.g. a refraction stand or combi unit. -
Page 6: Illumination Tower Assembly Procedure
The Refraction Stand, Combi Unit or table leg must be IEC 60601-1 compliant. If you are fi tting or have fi tted your Slit Lamp to a medical or Tomey table leg / base ensure it is situated on a fi rm and level fl oor. -
Page 7: Fitting Applanation Tonometers, T Type And R Types
SLIT LAMP TSL-7000H by TOMEY SLIT LAMP TSL-7000H by TOMEY 9. When not in use the instrument is swung around and secured in a notch position to the Only a hospital grade 3-conductor electrical power supply cable must be right of the microscope. -
Page 8: Preparing The Patient And Using The Slit Lamp
Shut down after every use. In case the dust cover is used: risk of Tomey recommends the use of disposable hygienic chinrest tissues on the overheating. chinrest before the patients place their chin on it. -
Page 9: Routine Maintenance
7. ROUTINE MAINTENANCE 8. WARRANTY The Tomey Slit Lamps are guaranteed for two years against faulty workmanship materials or The maintenance outlined below should only be carried out once the main factory assembly. Warranty is on a Return To Base (RTB) basis at the cost of the customer and power cable has been disconnected. -
Page 10: Electromagnetic Immunity
250 / 300 cycle should be considered. If the measured field strength in the location in which the Tomey Slit Lamp is used exceeds the applicable RF compliance level above, the Tomey Slit Lamp should be observed to verify normal operation. If... -
Page 11: Recommended Safe Distances
The Tomey Slit Lamp is intended for the use in an electromagnetic environment in which Aperture diameters 0.2, 1mm square, 2, 3, 5, 9 and 12mm radiated RF disturbances are controlled. The customer or the user of the Tomey Slit Lamp can help prevent electromagnetic interference by maintaining a minimum distance between mobile Filters Clear;... -
Page 12: Accessories And Spares
SLIT LAMP TSL-7000H by TOMEY SLIT LAMP TSL-7000H by TOMEY Fuse ratings and quantity 10. ACCESSORIES AND SPARES 2.5 amp anti-surge Item Part Number Fuse current 2.5A Voltage rating V AC 250V DSL Digital Background Illum.Assy 3020-P-5039 Breaking capacity 1500Amps... -
Page 13: Packaging And Disposal Information
SLIT LAMP TSL-7000H by TOMEY 11. PACKAGING AND DISPOSAL INFORMATION Disposal of old electrical and electronic equipment This symbol on the product or on its packaging and instructions indicates that this product shall not be treated as household waste. To reduce the environmental impact of WEEE (Waste Electrical Electronic Equipment) and minimise the volume of WEEE entering landfills we encourage at product end of life that this equipment is recycled and reused. - Page 14 SL4 4AA UK Freephone 0800 521251 Tel +44 (0) 1753 857177 Fax +44 (0) 1753 827145 SUPPLIER TOMEY GmbH Wiesbadener Straße 21 90427 Nürnberg Germany Tel +49 911 938 546 2 - 0 Fax +49 911 938 546 2 - 20 Visiometrics, S.
