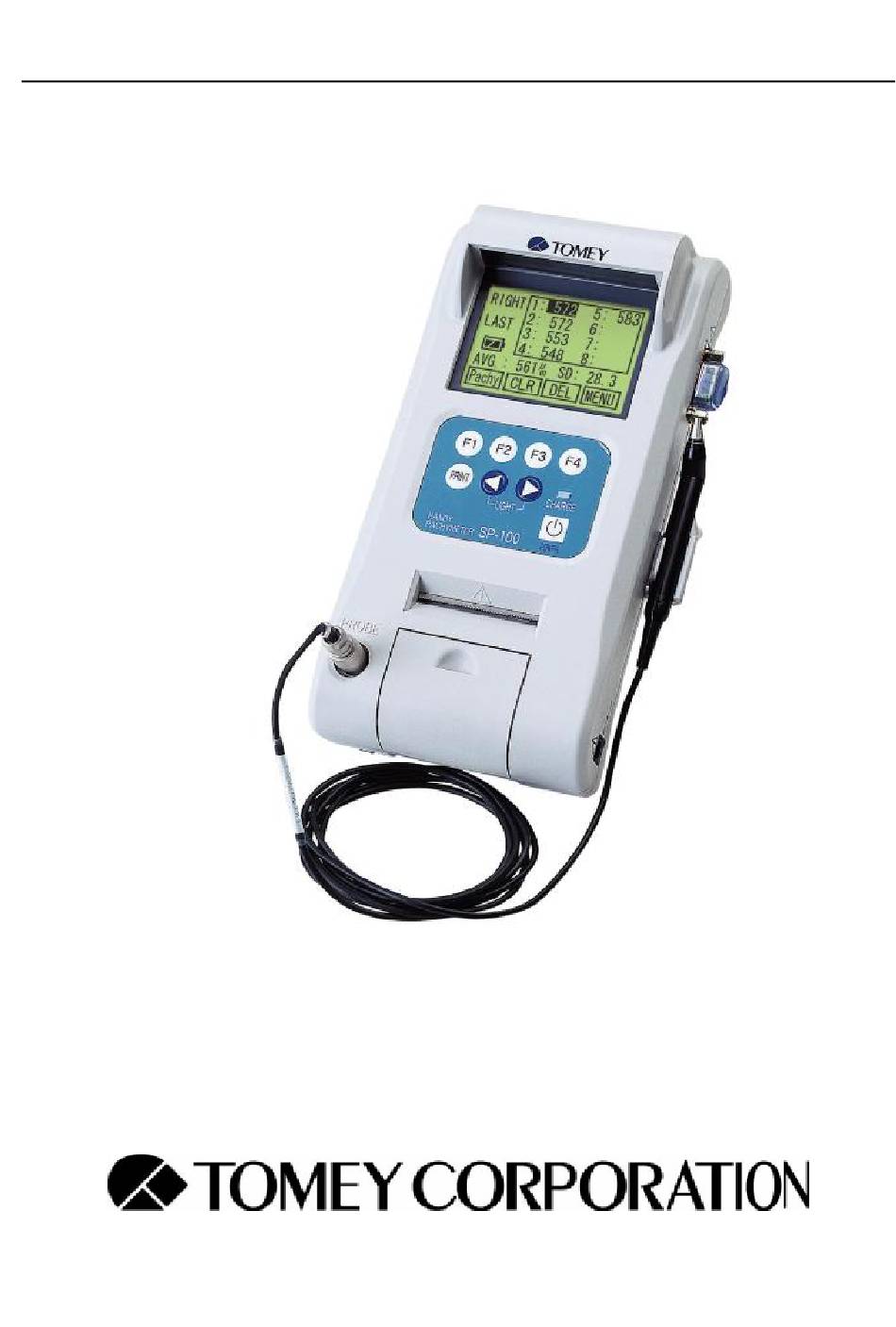

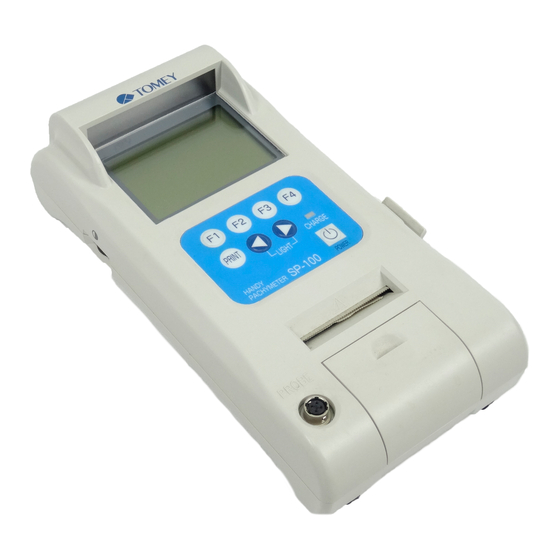

  • Page 1 SP-100 Service Manual 2004. Aug. 02...
  • Page 2 So you have to put back as same as initial condition. When you ask repair to TOMEY , please inform detail condition and symptoms. And if you change some setting, please put back it as same as initial condition.
  • Page 3 Service HANDY PACHYMETER SP-100 Doc. No Manual 2.Trouble shooting Symptoms Page LCD does not illuminated, when power switch turns ON. Nothing is displayed on LCD. Cannot measure with human eye and model eye. Measurement data is not printed out. <Page2>...
  • Page 4 Service HANDY PACHYMETER SP-100 Doc. No Manual 3. Countermeasure. (1) LCD does not illuminated, when power switch turns ON. Cause1: Low power of Lithium-ion buttery. [Countermeasure]>>Check the power of buttery. If it is low, connect AC adopter. Cause2: Incorrect connection [Countermeasure]>>...
  • Page 5 Service HANDY PACHYMETER SP-100 Doc. No Manual (3) Cannot measure with human eye and model eye. Cause1: Machine does not go measurement mode. [Countermeasure]>>Select measurement mode, and then start measurement. Cause2: Broken Pachy probe. [Countermeasure]>> Check the condition of Pachy probe.
  • Page 6 Service HANDY PACHYMETER SP-100 Doc. No Manual 3. Parts, Parts list and How to disassemble. A) Open “1. Cover, printer” and remove “2. Printer, Paper”. Note: When you remove printer paper, it should not be pulled from inlet part. It will hart printer and be cause of defection of printer.
  • Page 7 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M001 (Assy, SP-100) Parts number Parts Name Remarks 792-1003 Cover, printer C70-0004 Printer paper 792-1004 Stand, rear Self-binding screw M3*6 792-M601 Battery cover, Assy FA0-0003 Lithium-ion battery. C77-0012 Dust cap Hirose: DE-9S-DC1...
  • Page 8 Service HANDY PACHYMETER SP-100 Doc. No Manual A) Remove “1. Screws” and remove “2. Rear cover, Assy”. B) Remove “4. Screws with spring washer” that hold ground cable (ALPET) connected to “3. Front cover, Assy” C) Remove connector of “Membrane switch” from connector of “5. Main base (process3)”.
  • Page 9 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M011 (Main unit, Sub-Assy) Parts number Parts Name Remarks Screws M3*8 792-M201 Rear cover, Assy 792-M101 Front cover, Assy Screws with spring washer M3*6 792-M301 Main unit base (process 4) Assembly 792-M201 (Rear cover, Assy)
  • Page 10 Service HANDY PACHYMETER SP-100 Doc. No Manual A) Remove “2. Window, LCD” and “3. Window, light diffusion” B) Remove “4. Mirror, reflect” and “5. Membrane switch” that is attached on “1. Cover, front” by two-sided tape carefully C) Remove “6. Tapping screw” and remove “7. Printer cutter”...
  • Page 11 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M101 (Front cover, Assy) Parts number Parts Name Remarks 792-1001 Cover, front 792-1008 Window, LCD 792-1005 Window, light diffusion 792-1006 Mirror, reflect 792-021A Membrane switch Tapping screw M2*3 248-6014 Printer cutter <Page 10>...
  • Page 12 Service HANDY PACHYMETER SP-100 Doc. No Manual A) Remove “3. Screws with spring washer” and remove “1. LCD, Assy”. Note: You have to take care when you remove Flexible Printed Circuit of LCD. B) Remove “5. Screw with spring washer” and remove “4. Spacer”.
  • Page 13 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M301 (Main unit base (Process4)) Parts number Parts Name Remarks 792-M401 LCD, Assy 792-M311 Main unit base (process3) Screw with spring washer M3*6 Assembly 792-M311 (Main unit base (Process3)) Parts number Parts Name...
  • Page 14 Service HANDY PACHYMETER SP-100 Doc. No Manual A) Remove “2. Tapping screw” and remove “1. Thermal printer”. B) Remove “2. Screw with spring washer” C) Melt soldering part between “4. Connector, Assy” and “6. Main board” and remove “4. Connector Assy”.
  • Page 15 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M321 (Main unit base (Process2)) Parts number Parts Name Remarks E20-0026 Thermal printer MTP102-16B ---- Tapping screw M2.3*4 792-M331 Main unit base (process1) Assembly 792-M331 (Main unit base (Process1)) Parts number Parts Name...
  • Page 16 Service HANDY PACHYMETER SP-100 Doc. No Manual A) Remove “4. Screws” from “2. Bracket, LCD”. B) Remove “1. Frame, LCD” and “3. LCD” <Page 15>...
  • Page 17 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M401 (LCD, Assy) Parts number Parts Name Remarks 792-2004 Frame, LCD 792-2005 Bracket, LCD E02-0022 ETMG240160D-05 Screws Spring washer <Page 16>...
  • Page 18 Service HANDY PACHYMETER SP-100 Doc. No Manual <Page 17>...
  • Page 19 Service HANDY PACHYMETER SP-100 Doc. No Manual Assembly 792-M501 (Connector, Assy) Parts number Parts Name Remarks 792-2003 Bracket, probe connector F22-0023 Ferrite core 792-040A Probe harness <Page 18>...
  • Page 20 Service HANDY PACHYMETER SP-100 Doc. No Manual 4. Wiring Diagram <Page 19>...
  • Page 21 Service HANDY PACHYMETER SP-100 Doc. No Manual 5. Voltage in connector Main board (792-010A) Connector No Pin No. Cord Color. Output Note +3.7V Lithium ion battery Black Lithium ion battery <Page 22>...
