K-184
98666 00184
8

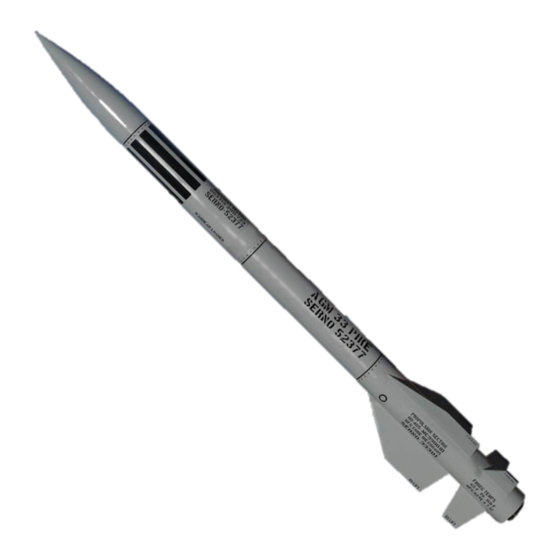

mini
AGM 33 PIKE
Specifications:
Parts List
Optional Recovery
0
FIBERGLASS KIT
Length: 28.5"
Diameter 1.6"
Weight:12oz
Recovery: 18" Nylon Chute
Motor Mount: 29mm
Fins: 6 - 1/16" G10
Estimated CP: 21.5" from nose tip
1.
(1) Fiberglass nose cone
2.
(1) Fiberglass nose cone coupler
3.
(1) Pre-slotted body tube
4.
(2) G10 centering rings
5.
(1) 29mm motor tube
6.
(6) G10 fins
7.
(1) Kevlar/Nylon shock cord
8.
(2) Launch Lugs
9.
(1) Water Slide Decals
1.
(1) 6x6" flameproof chute protector
2.
(1) 18" Nylon chute
™
Advertisement
Related Manuals for Madcow Rocketry mini AGM 33 PIKE FIBERGLASS KIT
Summary of Contents for Madcow Rocketry mini AGM 33 PIKE FIBERGLASS KIT
- Page 1 mini ™ AGM 33 PIKE FIBERGLASS KIT Specifications: Length: 28.5” Diameter 1.6” Weight:12oz Recovery: 18” Nylon Chute Motor Mount: 29mm Fins: 6 - 1/16” G10 Estimated CP: 21.5” from nose tip Parts List (1) Fiberglass nose cone (1) Fiberglass nose cone coupler (1) Pre-slotted body tube (2) G10 centering rings (1) 29mm motor tube...
- Page 2 Make sure you have the motor assembly facing the right way! Spread some more epoxy on the inside edge of the body tube before sliding the rear centering ring into the body tube. Continue ©2014 MadCow Rocketry™ AGM-33 PIKE™ Assembly AGM-33 PIKE™ Assembly...
- Page 3 IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
