K-116
98666 00116
8

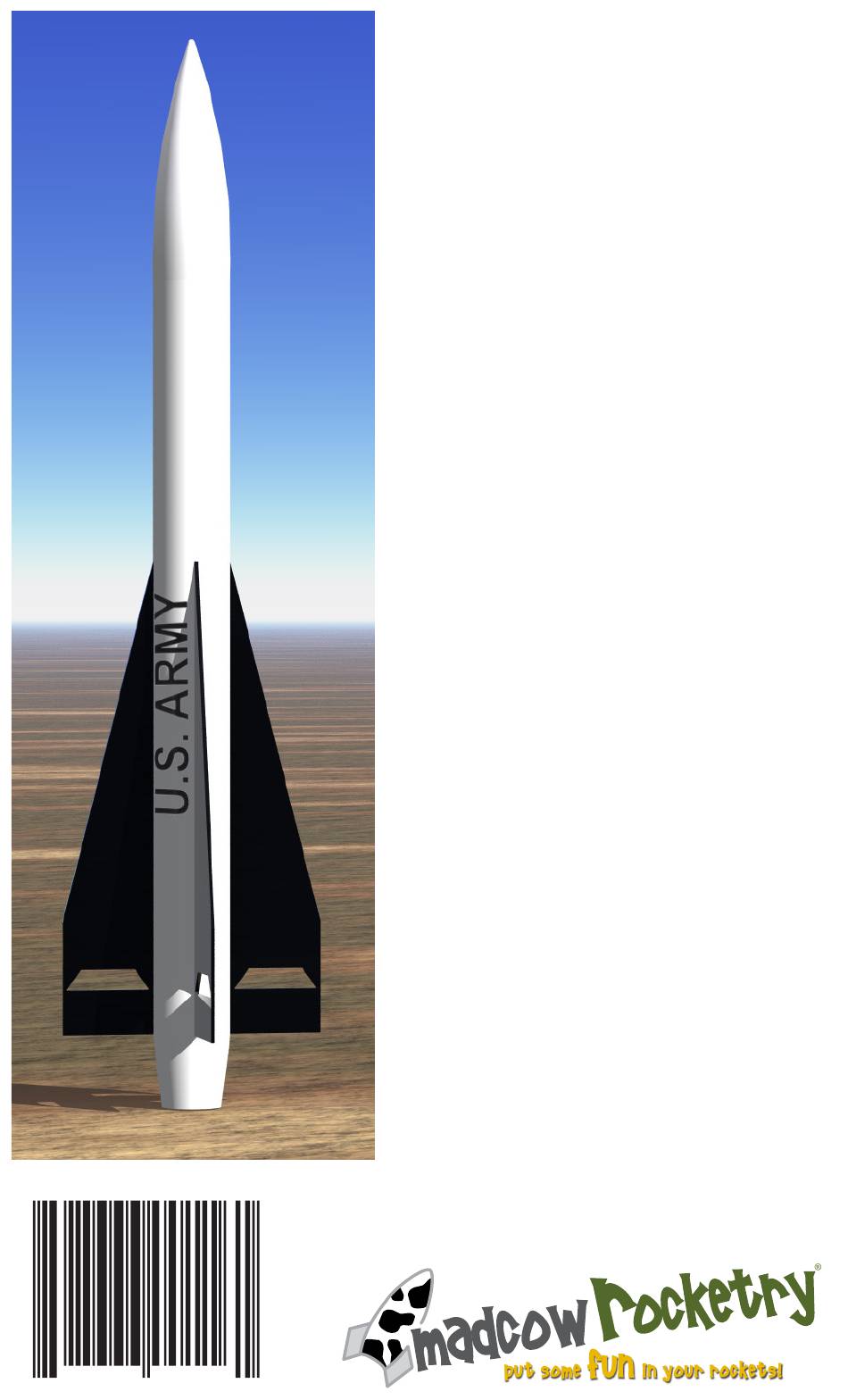

U.S. ARMY
MIM-23B Hawk

Specifications:

Recommended Motors:

Parts List

Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint, lead shot for nose weight.
1
Length: 36.25"
Diameter 2.6"
Weight: 21oz
Recovery: 24" Nylon Chute
Motor Mount: 29mm
Features: Balsa Boat Tail
Fins: 4 - 1/8" Plywood\
Scale: 1:5.4
CG: 22.5" from nose tip
Single Use
F20J-4
720'
F50T-6
975'
G38J-7
1250'
G40W-7 1390'
G80T-7
1470'
G77R-7 1450'
1.
(1) Molded nose cone
2.
(1) Custom balsa tail cone
3.
(1) pre-slotted body tube
4.
(1) Centering ring
5.
(1) 29mm motor tube
6.
(4) laser-cut fins
7.
(1) Kevlar® shock cord section
8.
(1) Nylon shock cord section
9.
(1) 9"x9" flameproof chute protector
10. (1) 24" Nylon chute
11. (2) ¼" launch lugs
12. (1) Cut Letter Vinyl decal
13. (1) 1/8" Spruce Tip Stock
RMS
F40W-7 1020'
G33J-7
1330'
G64W-7 1740'

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U.S. ARMY MIM-23B Hawk and is the answer not in the manual?

Questions and answers

Related Manuals for Madcow Rocketry U.S. ARMY MIM-23B Hawk

Summary of Contents for Madcow Rocketry U.S. ARMY MIM-23B Hawk

  • Page 1 U.S. ARMY MIM-23B Hawk Specifications: Length: 36.25” Diameter 2.6” Weight: 21oz Recovery: 24” Nylon Chute Motor Mount: 29mm Features: Balsa Boat Tail Fins: 4 - 1/8” Plywood\ Scale: 1:5.4 CG: 22.5” from nose tip Recommended Motors: Single Use F20J-4 720’ F40W-7 1020’...
  • Page 2 Spread some more epoxy on the inside edge of the body tube before sliding the tail cone into the body tube. Continue sliding the assembly inside the body tube until the tail cone ©2007 MadCow Rocketry™ MIM-23B Hawk Assembly...
  • Page 3 1/2” from the aft end of the body tube. Site down both launch lugs and make sure they are both aligned. If you have a ¼” launch rod, you can use this to ensure that both lugs are aligned properly. MIM-23B Hawk Assembly ©2007 MadCow Rocketry™...
  • Page 4 The buyer assumes all risk and liability resulting from ANY use of any and all products sold by Madcow Rocketry. Your purchase and use of any Madcow Rocketry product constitutes your agreement to and acceptance of these terms. If you do not agree to these terms and conditions, you must return the unused product in resalable condition for a refund or credit.
