K-141
98666 00141
8

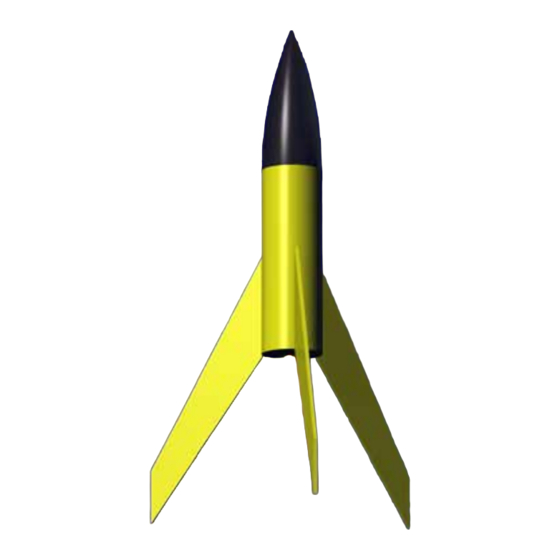

Cricket
Specifications:
Parts List
Optional Recovery
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint.
3
Length: 32"
Diameter 4.0"
Weight: 30oz
Recovery: 30" Nylon Chute
Motor Mount: 38mm
Fins: 3 - 1/4" Plywood
CG: 17" from nose tip
1.
(1) Nose Cone
2.
(1) pre-slotted body tube
3.
(2) Centering rings
4.
(1) 38mm motor tube
5.
(3) laser-cut fins
6.
(1) Eyebolt, nut and washer
7.
(1) Nylon shock cord
8.
(2) Rail Buttons and Screws
9.
(1) 12x12 Chute Protector
10. (1) 30" Nylon chute
™
Advertisement
Table of Contents
Related Manuals for Madcow Rocketry Cricket
Summary of Contents for Madcow Rocketry Cricket
- Page 1 ™ Cricket Specifications: Length: 32” Diameter 4.0” Weight: 30oz Recovery: 30” Nylon Chute Motor Mount: 38mm Fins: 3 - 1/4” Plywood CG: 17” from nose tip Parts List (1) Nose Cone (1) pre-slotted body tube (2) Centering rings (1) 38mm motor tube...
- Page 2 Forward Ring Hole 1/4” Exposed 2 1/2” Exposed Fin Tang IMPORTANT: After this assembly cures, cut off any excess motor tube in front of the forward centering ring to make more room for the recovery components. ©2008 MadCow Rocketry™ Cricket™ Assembly...
- Page 3 Test fit each of the fins into the pre cut fin slots. The fin should seat firmly against the motor tube - sand each fin if necessary. When you are satisfied with the fit, apply some epoxy to the end of the fin tang that will contact the motor tube as well as the fin root that will contact the body tube. Also, spread a thin layer of epoxy on each side of the fin tang. Slide the fin into place and check the alignment. Continue rechecking the fin alignment until you are sure the epoxy has set. Clean any excess epoxy from around the fin joint. Repeat for the remaining fins. Next, apply epoxy fillets to both sides of each fin. Carefully smooth the epoxy fillets with your finger before the epoxy sets. Allow each fillet to set before rotating the airframe for the next fillet. Cricket™ Assembly ©2008 MadCow Rocketry™...
